Kvaser Leaf SemiPro SWC

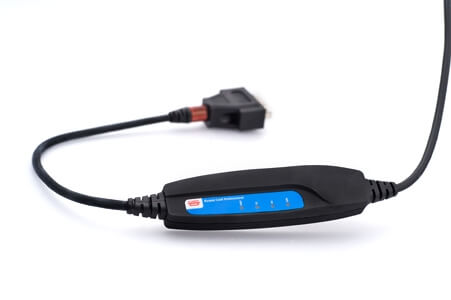

The Leaf SemiPro SWC from Kvaser is a single-channel USB-CAN interface offering galvanic isolation from the CANbus. The time-stamping of CAN messages is synchronized through Kvaser's patented MagiSync™. Multiple devices of the same or different CAN transceiver type can be operated on the same computer for maximized flexibility and scalability.
- Automatic and accurate clock synchronization between several Kvaser Leaf SemiPro interfaces through Kvaser MagiSync™. The technical solution is unique and patented by Kvaser.
- Messages are time-stamped and synchronized with a precision of 25 microsecond
- Handles up to 15,000 messages per second
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
- Reliable error handling
- Supports silent mode for analyzing tools
- Low power consumption
- Excellent EMC performance
- Polyurethane cabling for extreme environments
- Galvanic isolation of the CAN bus driver stage to protect the hardware
- Labeled CAN channel for easy identification of the supported physical layer
- 100% compatible with applications written for all Kvaser hardware with Kvaser's CANlib
- Equipped with a 110 cm (44 in.) long USB cable and a 30 cm (12 in.) long CAN cable
- Interfaces the CAN bus with a 9-pin D-SUB connector
- Designed for USB 2.0, backward compliant with USB 1.1
- Quick and easy Plug-and-Play installation
- A practically unlimited number of Kvaser Leafs can be connected via standard USB hubs for simultaneous use on a single PC
|The information herein is subject to change without notice.|
|Error frame generation||Yes|
|Error frame detection||Yes|
|On board buffer||Yes|
|Maximum message rate, send||2000|
|Maximum message rate, receive||2000|
|Dimensions (WxLxH)||25x100x20 mm (1.0x3.9x0.8in.)|
