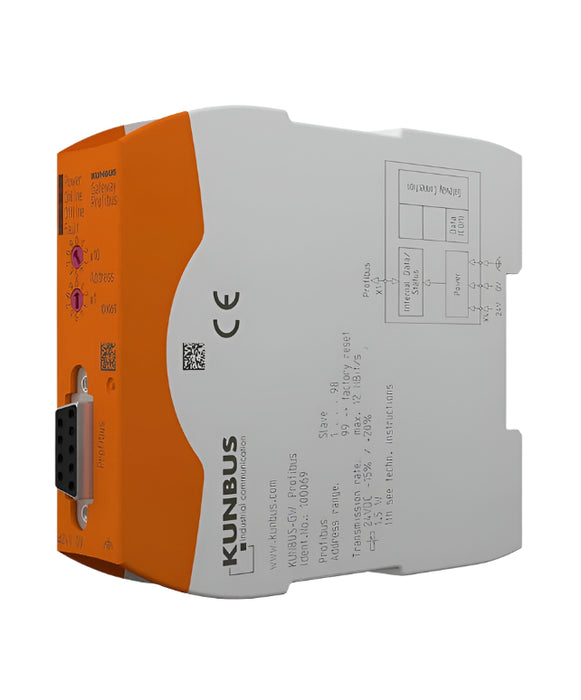

Gateway Module - PROFIBUS Slave

SKU #: KU-PR100069
by KUNBUS

Expansion module for PROFIBUS networks

When using our RevPi Gate PROFIBUS gateway, integrating Revolution Pi into a PROFIBUS network is no problem. Like all Revolution Pi expansion modules, the gateway is connected to the base module RevPi Core via the overhead Pi Bridge connector. Thus, up to two gateway modules can be used per system.

Review the UL Certificate.

Module version Slave
Network connector D-SUB 9F
max. baud rate up to 12 Mbit/s
I/O data max. 488 Bytes (244 IN & 244 OUT)
DP-Application layer DP-V0
Protection class IP20
Power 24 V DC (-15/+20%)
Current consumption 100 mA
Dimensions 110.4 x 22.5 x 101.4 mm
Weight approx. 90 g
Reverse voltage protection Yes
Operating temperature 0 °C to 60 °C
Storage temperature -25°C to 70 °C
max. relative humidity (at 40 °C) 93 % (non condensing)
Casing material Polycarbonate
Mounting DIN rail (EN50022)
CAN Ethernet Gateway - Product Flyer
CAN Ethernet Gateway - Product Flyer in PDF Format
Gateway module Profibus manual
Gateway module Profibus Manual in PDF Format
GSD File
Gateway Module PROFIBUS GSD Files
