100/1000 BASE-T1 to Ethernet Converter (TE MATEnet)

Fast/Gigabit Automotive Ethernet to Standard Ethernet converter

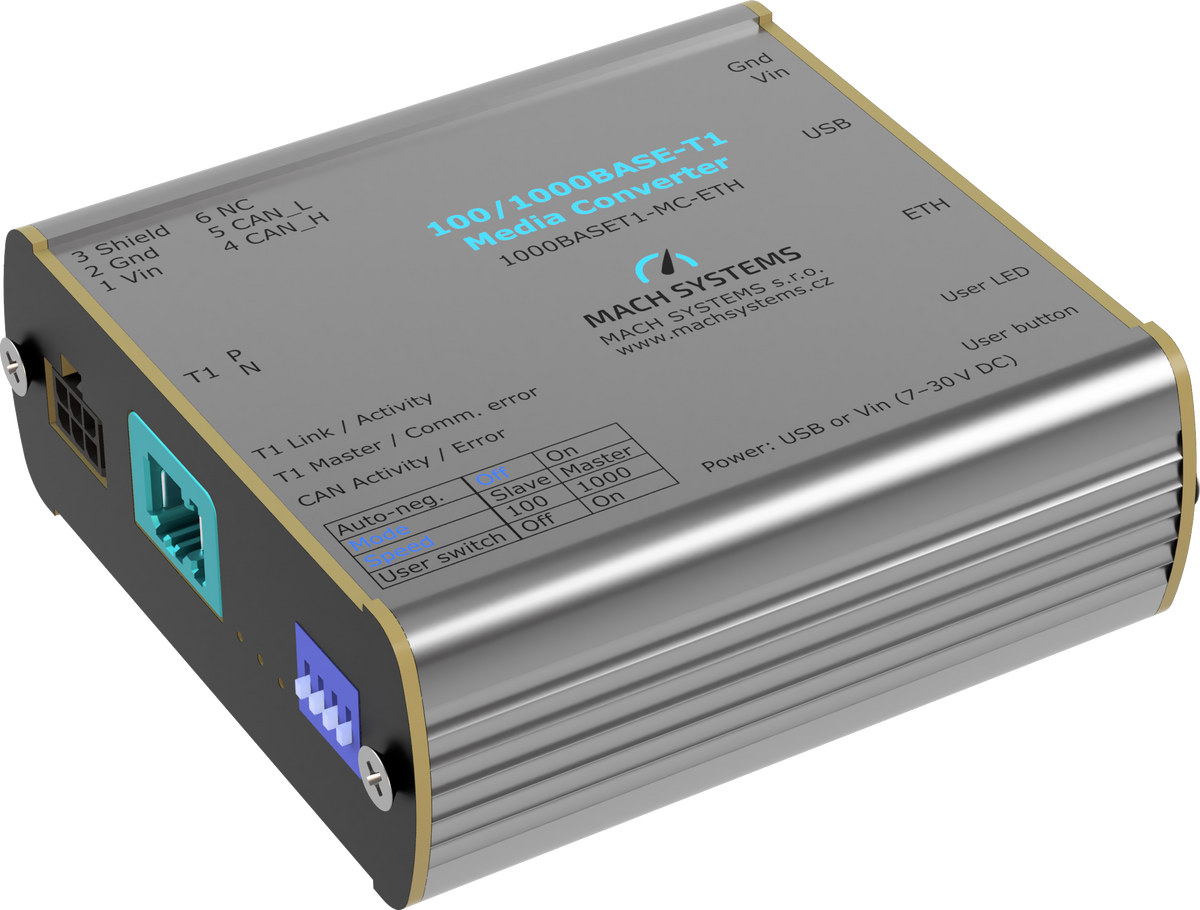

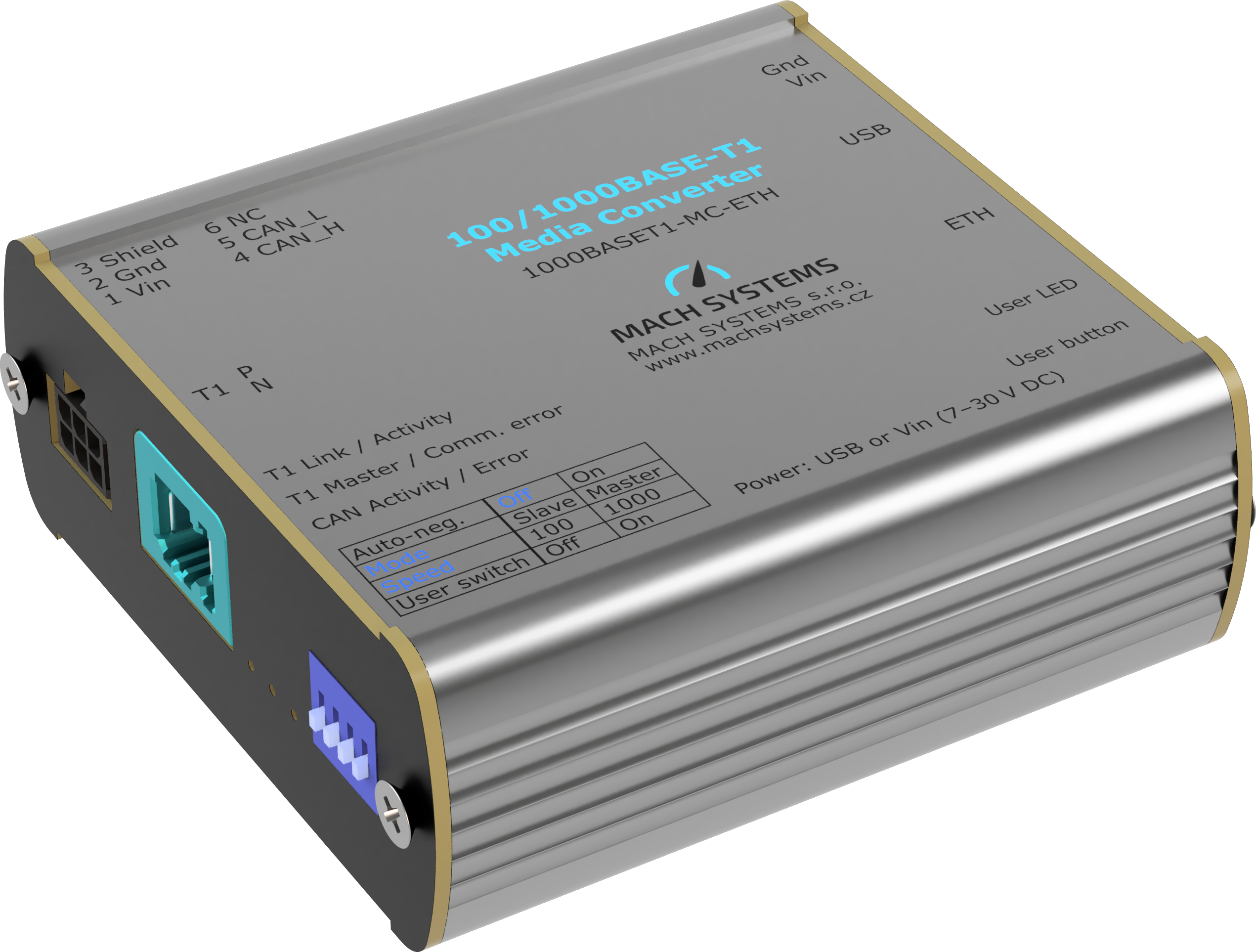

The 100/1000BASE-T1 Media Converter MATEnet establishes a point-to-point link between the Automotive Ethernet and Standard Ethernet, supports both 100 Mbit and 1000 Mbit speeds, and features the TE MATEnet connector. (Also available with a Rosenberger H-MTD connector.)

The media converter realizes a full-duplex physical-layer conversion between 1000BASE-T1 and 1000BASE-T (Gigabit Ethernet), or 100BASE-T1 and 100BASE-TX (Fast Ethernet) networks, and features TE MATEnet and RJ-45 connectors. Communication speed and master/slave settings can be auto negotiated with a link partner or set manually by the user.

T1 to Ethernet Converter with 100/1000 Mbit Full-Duplex Communication

The device features advanced capabilities, including a frame generator, cable diagnostics, and the ability to function as a USB to CAN(/FD) interface concurrently with media conversion.

An open communication protocol over USB or CAN(/FD) facilitates the reading of status information and configuration of port parameters, ensuring seamless integration into any system. Users can programmatically configure the device, and a complimentary PC application is available to visualize the device’s status, configure its parameters, and utilize its advanced functions.

The media converter is an ideal tool for connecting a 100BASE-T1 or 1000BASE-T1 ECU to a computer or laptop. Built-in status LEDs and dip switches enable easy use of the converter without a PC. (Also available with a Rosenberger H-MTD connector.)

Why Phytools?

• Official North American distributor for products from PEAK-System Technik, SYS TEC electronic, and GEMAC
• Authorized distributor for products from KUNBUS, Kvaser, MACH Systems, and Embedded Systems Academy
• Member of CAN in Automation (CiA) and EtherCAT Technology Group (ETG)
• Over 20 years of experience
• Diverse customer base across industries such as automotive, industrial automation, medical equipment, aerospace, agriculture, construction, and renewable energy
• Offers a large selection of vehicle and industrial networking solutions
• In-house expertise to provide efficient and cost-effective products
• Provides support from pre-sales to rapid resolution of issues to exceed customer expectations.

T1 To Ethernet Converter FAQs

What connectors does the T1 to ethernet converter use?

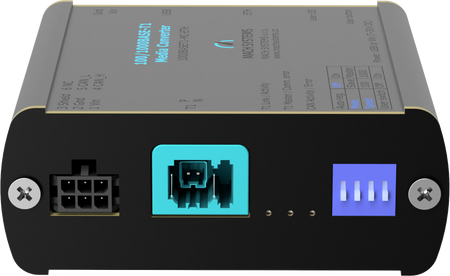

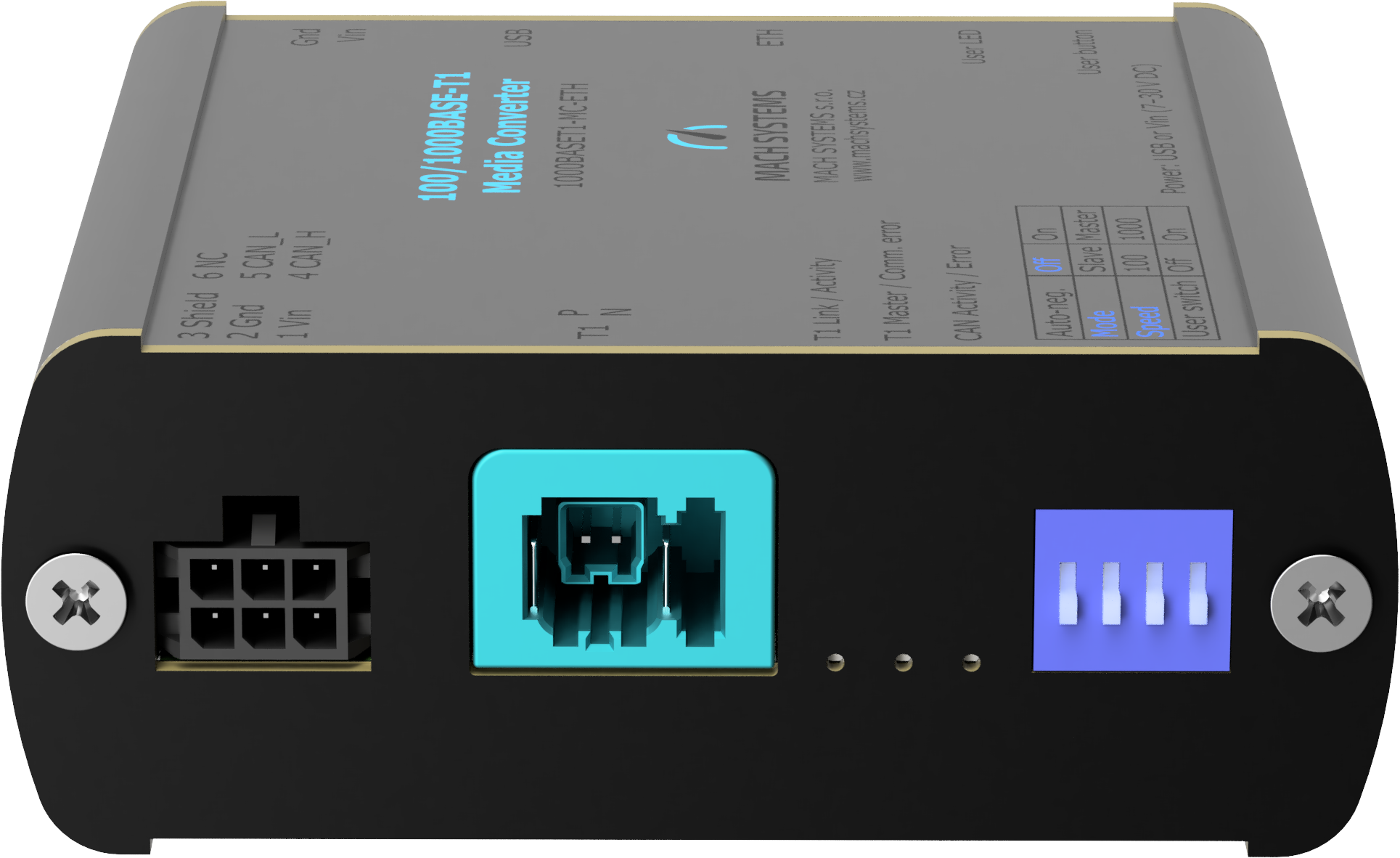

The media converter uses TE MATEnet and RJ-45 connectors. It is also available with a Rosenberger H-MTD connector.

What advanced features does the T1 to ethernet converter offer?

The media converter includes features such as a frame generator, cable diagnostic capabilities, and can function as a USB to CAN(/FD) interface along with media conversion.

Can the T1 to ethernet converter be used without a PC?

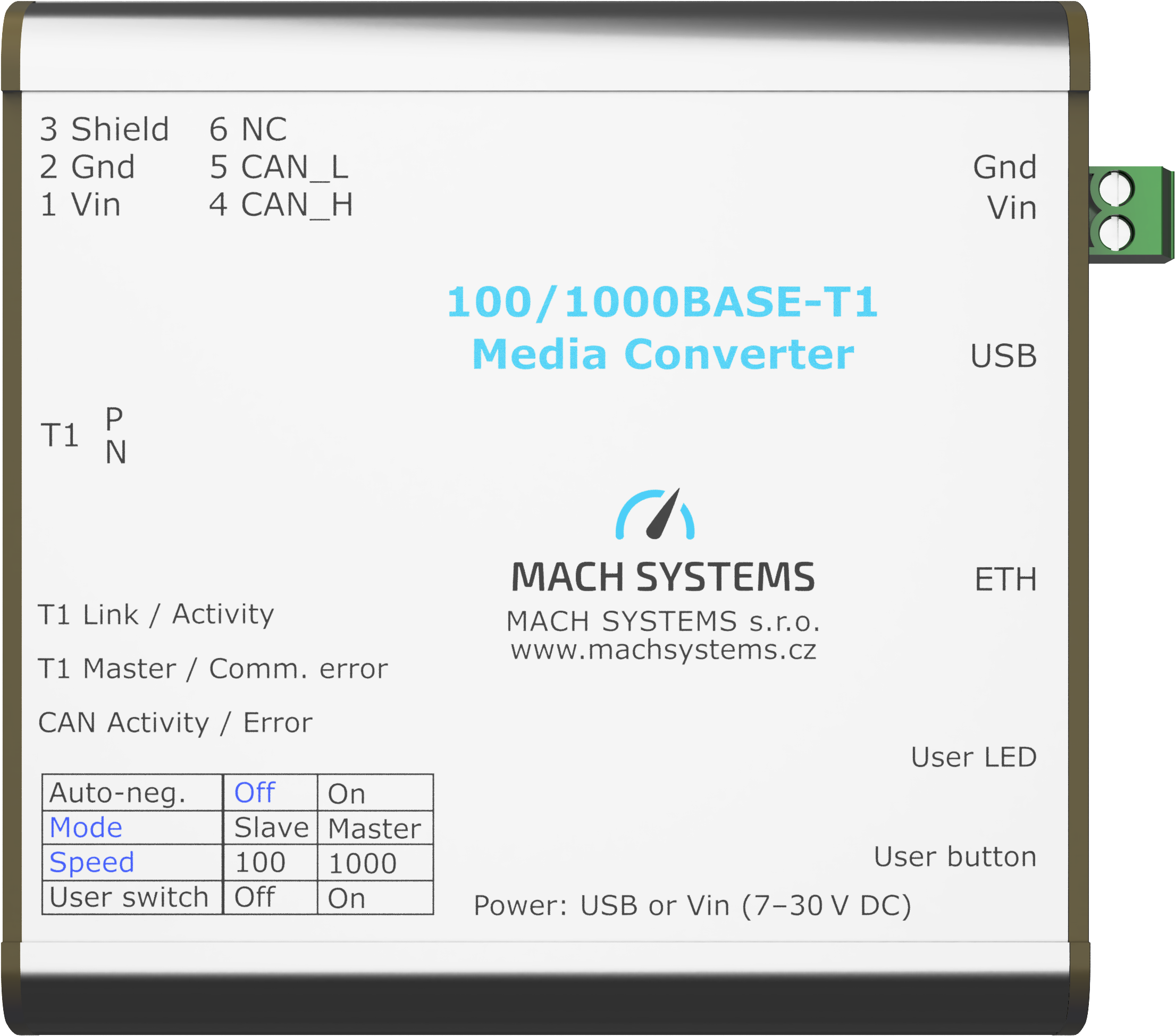

Yes, the device has built-in status LEDs and dip switches that allow it to be used without a PC.

What systems can the T1 to ethernet converter be integrated with?

The converter can be easily integrated into any system using an open communication protocol over USB or CAN(/FD).

How do I connect the T1 to ethernet converter to my devices?

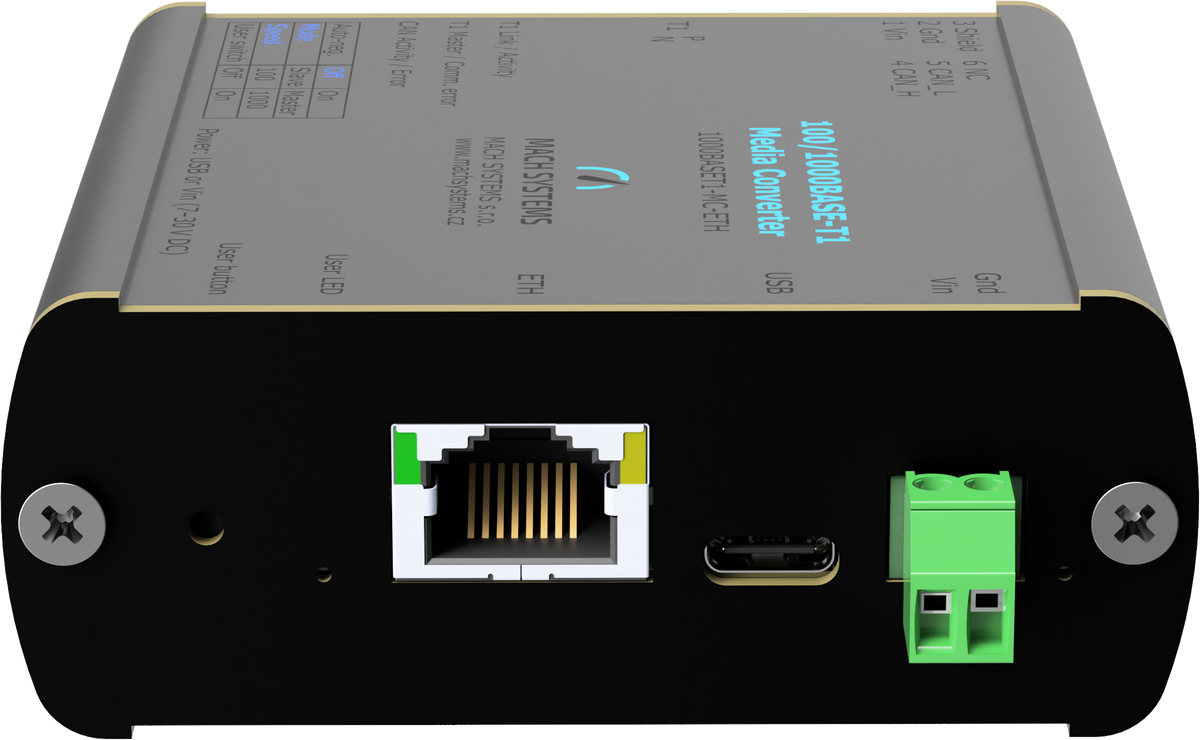

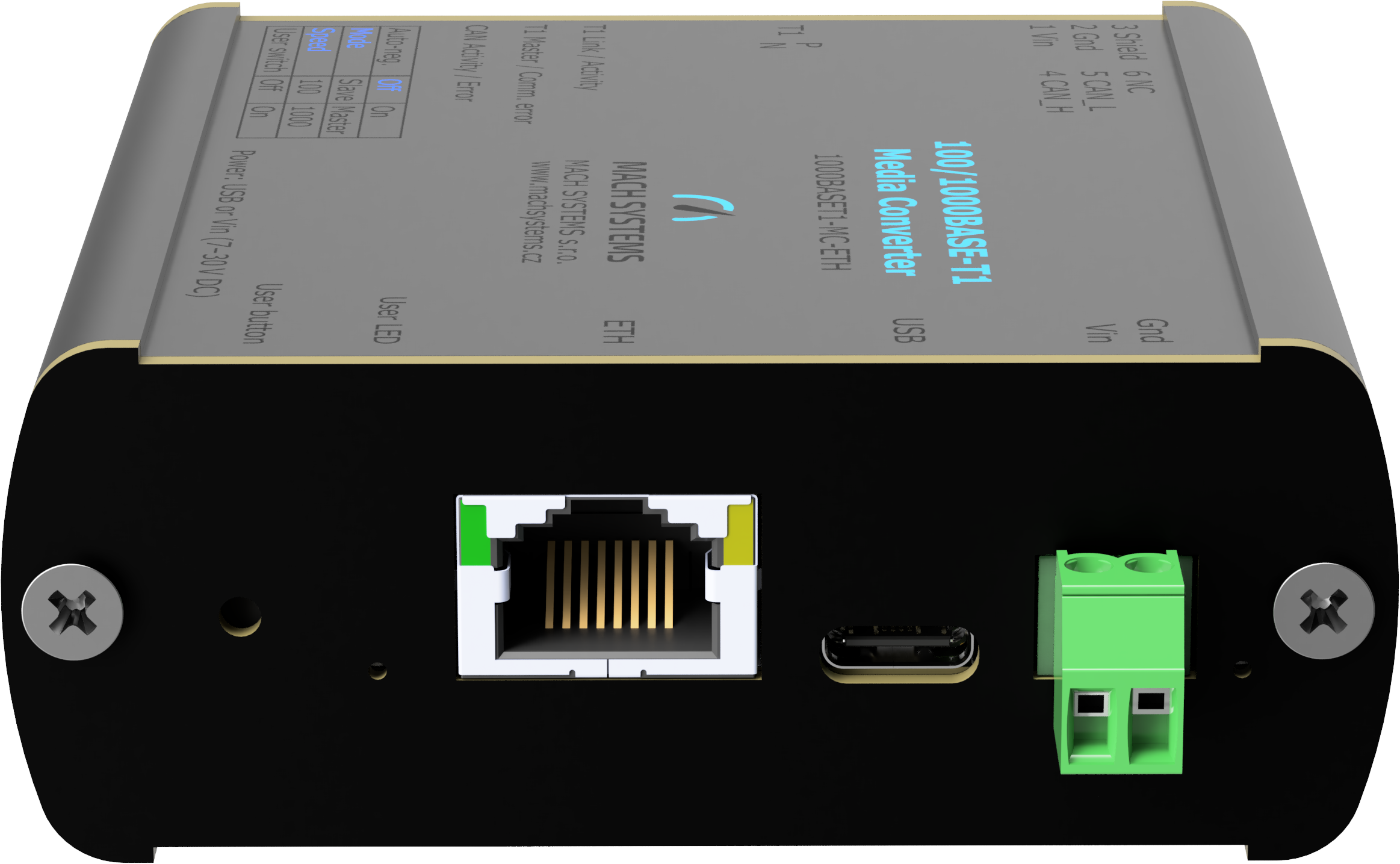

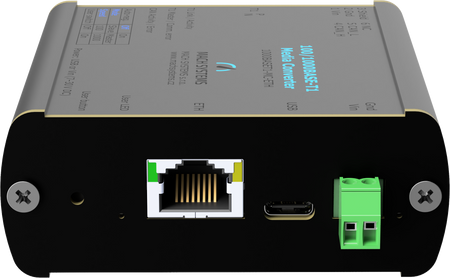

Connect the automotive Ethernet port and the standard Ethernet port (RJ-45 connector), configure the device using the dip switches, and power it via USB, a 2-pin terminal block, or a 6-pin Molex connector.

What are IEEE and Legacy modes?

IEEE mode is the default setting on the T1 port. Legacy mode should only be enabled if the link partner is Marvel PHY A0; for other PHYs, legacy mode should be disabled.
