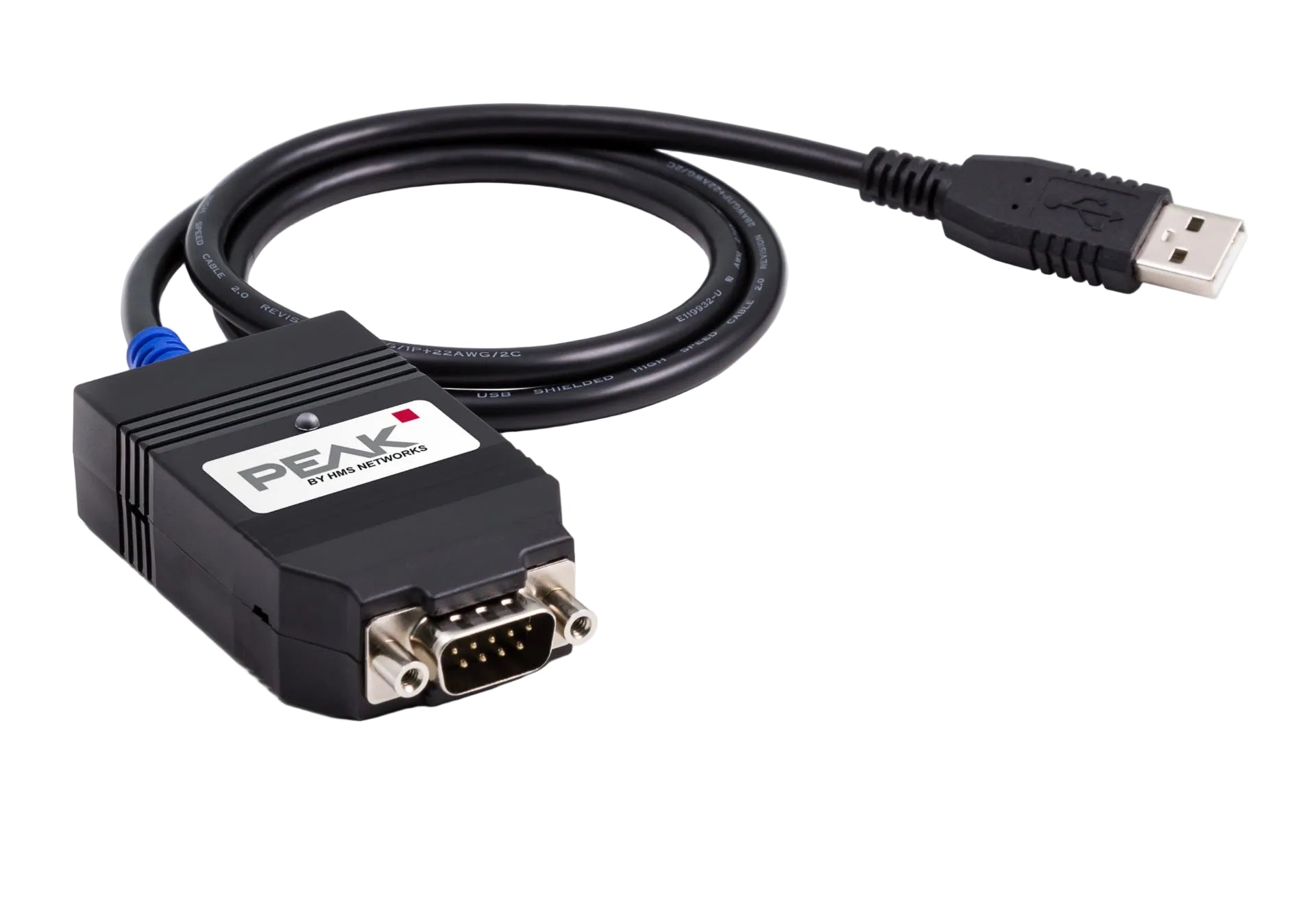

PCAN-USB XL Adapter

Provides a connection to CAN XL, CAN FD, and CAN CC busses via the USB port of your computer

(limited stock availability)

The PCAN-USB XL is delivered ready to use with Windows® and Linux drivers, the PCAN-View monitoring software, and the PCAN-Basic API for developing applications with CAN connection. PCAN-Basic 5 and PCAN-View 6 support the new standard CAN XL. Galvanic isolation of up to 500 Volts decouples the PC from the CAN bus. With its compact plastic casing, it is ideal for mobile applications.

CAN XL

CAN XL (Extended Data-Field Length) was designed to improve the cooperation of CAN and TCP/IP networks and to enable transmitting larger data streams for use cases such as ECU flashing and software updates. For this, the new standard provides bit rates of up to 20 Mbit/s and data transmission with up to 2048 bytes per message.

TECHNICAL SPECS

• CAN interface for High-speed USB 2.0 (compatible to USB 3.0)
• High-speed CAN connection (ISO 11898-2 2024)
  • Complies with CAN specifications CAN CC (classic CAN 2.0), CAN FD, and CAN XL (ISO 11898-1 2024)
  • CAN bit rates from 20 kbit/s up to 1 Mbit/s
  • CAN FD data bit rates up to 8 Mbit/s
  • CAN XL data bit rates up to 8 Mbit/s, CAN FD compatible transmission mode
  • CAN XL data bit rates up to 20 Mbit/s by using the transceiver mode switch
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 106)
• Time stamp resolution 1 µs
• FPGA implementation of the CAN XL core by PEAK-System;
  validated with the CAN XL Evaluation Board by C&S (www.cs-group.de)
• CAN SIC XL transceiver TI TCAN6062V
• Galvanic isolation between CAN and USB up to 500 V
• CAN termination can be activated through solder jumpers
• Voltage supply via USB
• Extended operating temperature range: -40 to +85 °C (-40 to +185 °F)

SCOPE

• PCAN-USB XL in plastic casing
• Device drivers for Windows® 11 (x64/ARM64), 10 (x64), and Linux
• CAN monitor PCAN-View for Windows® Details ...
• Programming interface PCAN-Basic for developing applications with CAN CC, CAN FD, and CAN XL connection Details ...
• Programming interfaces for standardized protocols from the automotive sector
• Manual in PDF format

DOWNLOADS

The new PCAN Explorer 7 software is now available.

Device driver setup 5.x for Windows: DOWNLOAD

PEAK-System installation package for PC interface device drivers for Windows® 11 (x64/ARM64), 10 (x64). Included tools: PEAK Settings, PCAN-View, PLIN-View Pro, and Virtual PCAN-Gateway. Included APIs: PCAN-Basic, PLIN-API, and PCAN-RP1210.

CAN device driver for Linux: Link

PCAN-USB XL Manual: DOWNLOAD
