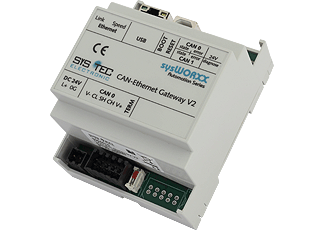

Operating Modes:
- Gateway mode: The Gateway mode makes it possible to use the device application as a universal CAN / Ethernet coupler. Thereby, the Gateway is typically used at a PC as external CAN interface. Hence, it enables easy and flexible access to CAN systems via LAN or Internet. The scope of delivery includes drivers that facilitate using the CAN-Ethernet Gateway as PC interface for all CAN and CANopen software tools sold by SYS TEC. The driver API is documented in detail and supports the integration of the Gateway into own user applications. From the Host application, the message transfer with the CAN network takes place via socket-based TCP or UDP communication.
- Bridge mode: The Bridge mode allows for transparent coupling of CAN networks via LAN or Internet. By filtering messages, on the one hand it is possible to limit the data volume to be transferred, and on the other hand it is possible to systematically control the data exchange between subnets. For example, for the coupling of CANopen networks it is feasible to only exchange PDOs and to exclude all other message types from being transferred.
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Ethernet interface: | 10/100 Mbit/s Ethernet (10Base-T/100Base-T) Connector RJ45 |
| CAN controller: | SJA1000 |
| CAN interface: | One CAN interface, high-speed CAN according ISO 11898 1/2, optical isolated |
| CAN specification: | 2.0A (11-bit identifier) 2.0B (29-bit identifier) |
| CAN bus connector: | 2x 5pin spring type connector with optional Sub-D9 adapter cable |
| CAN Baud rate: | 10kbps to 1Mbps |
| CAN features: | Remote frames Listen only mode Error message with configurable identifier Time stamp for received messages |
| Operation modes: | Gateway mode: makes possible the device specification as universal CAN / Ethernet coupler Bridge mode: allows for transparent coupling of CAN networks via LAN or Internet |
| Gateway configuration: | via Telnet, FTP (remote maintenance) or serial interface over USB port |
| Gateway software: | pre-programmed Linux OS, device firmware |
| PC application programming: | via Windows application library (DLL) using a standard programming language (e.g. C/C++) |
| Power supply: | 24VDC +20% -60% |
| Current consumption: | typ. 100mA |
| Connector power supply: | 2pin screw type connector |
| Operating temperature: | 0ºC to +70ºC |
| Housing: | IP20 Plastic housing for DIN/EN rail mounting |
| Dimensions: | 70 x 100 x 61 (LxWxH, in mm) |
| Product Flyer |
| CAN Ethernet Gateway - Product Flyer |
| System Manual |
| CAN-Ethernet-Gateway V2 - System Manual |
| Software Manual |
| CANopen API for .NET - Software Manual |
| USB interface driver for Windows |
| CAN-Ethernet Gateway V2 - USB interface driver for Windows |
| CAN-Ethernet Gateway - Windows Driver Package |
| P/N SO-1027 Driver for Win2000 / WinXP / Vista / Windows 7 including programmer API DLL - Release V3.01.000 |
| CANopen API for .NET |
| P/N SO-1088 - V5.46 - Release May 2010 |
