- Acts as a CAN bus hub with six D-SUB9 connectors
- Modular and compatible with Kvaser T-cannector v2 (00776-5) for larger CAN bus hubs
- Each D-SUB9 has screws to secure the connection to the Kvaser CAN interface
- Adjustable termination via easy-to-use switch (Base unit)
- LED to indicate power on (Base unit)
- Voltage range of 12 V- 24 V DC
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Categories | LIN, CABLES, DIN Rail, Interfaces, Hardware, Dataloggers, CAN, Accessories |
| Channels | 3 |
| Connectors | DSUB 9 |
| Galvanic Isolation | No |
| Sound | No |
| Silent Mode | No |
| Height | 34 mm |
| Length | 55 mm |
| Weight | 80 g |
| Temp Range | -40 °C to +85 °C |
| Kvaser T-Cannector Expansion L User's Guide |

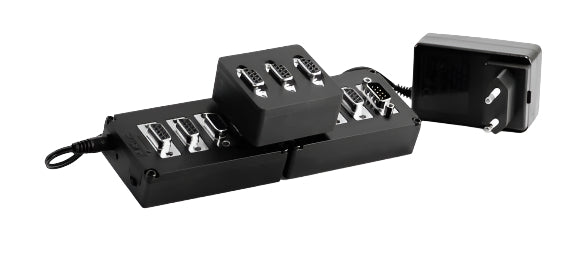

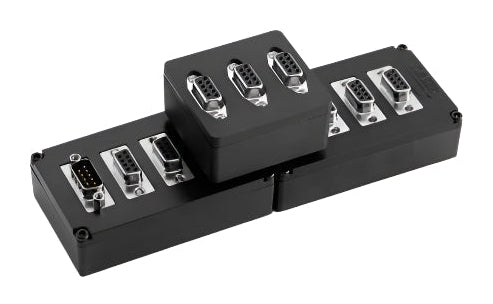

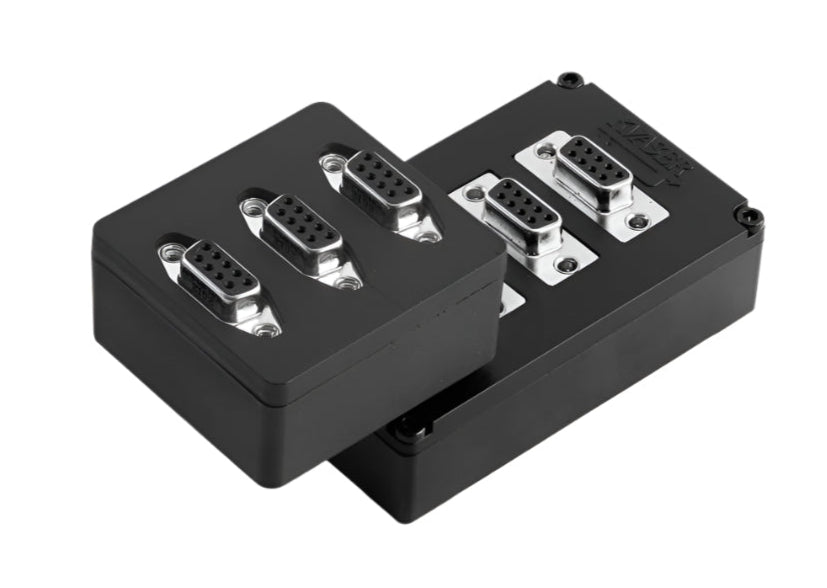

| The Kvaser T-Cannector Expansion L, which consists of a Kvaser T-cannector v2 (Base unit) and a Kvaser T-cannector L (Extension unit), expands the Kvaser T-cannector v2 (00776-5) to a CAN bus hub that in total offers eight D-SUB9 socket connectors. Version V1.0.211114 |
