Overview
The EtherCAT DeviceDesigner for Windows® is an easy to handle tool for the fast and cost-saving creation of EtherCAT devices. The tool is tailored to the EtherCAT Slave Stack Code ET9300 by Beckhoff.
The object dictionary can be created with only a few mouse clicks on the base of predefined profiles and also the characteristics of the objects can be specified as fast and easy. The EtherCAT DeviceDesigner creates the object dictionary and initializing functions in C source code, an electronic datasheet in XML format and the device documentation. In addition the EtherCAT DeviceDesigner configures the EtherCAT stack and driver package in an optimal way. Also available as Linux version. Please contact Phytools for details.
Available product variants are:
Named User License (EM-1019-10)
Floating License with Dongle (EM-1019-10-D)
Highlights
- tailored to EtherCAT Slave Stack ET9300 by Beckhoff
- fast device development by using predefined, standardized profiles
- helps to avoid double and error prone work by automatic generation of output from a data source
- consistency of the object directory with XML file and the generated documentation
- resource saving configuration of the EtherCAT stack according to the device characteristics
- easy handling through simple input masks for bit coded values

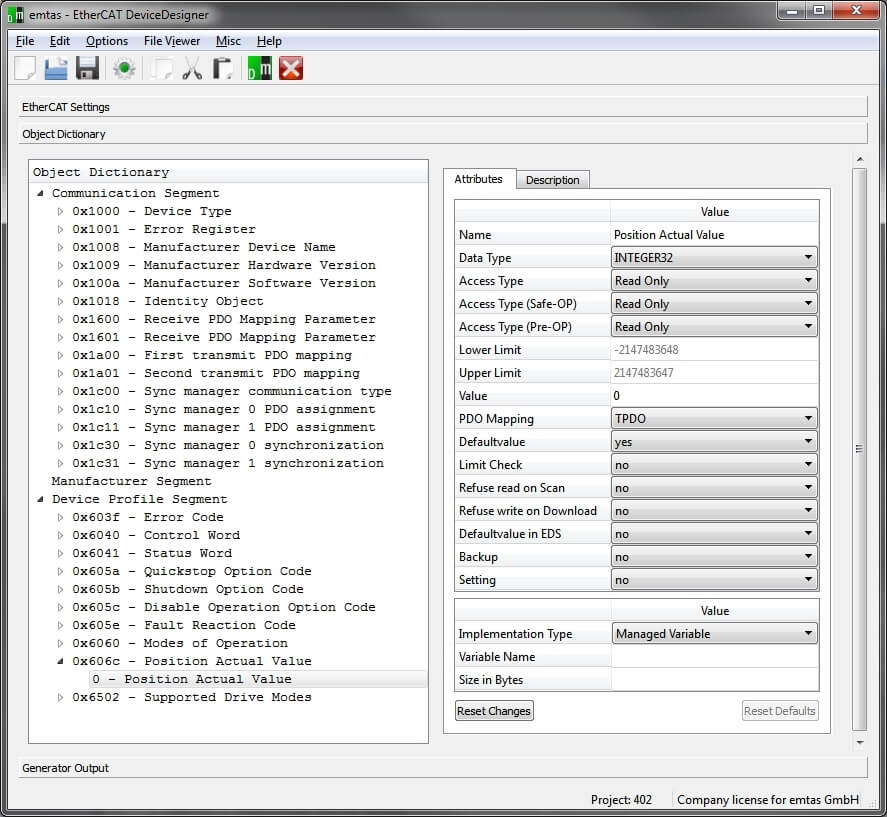

Object dictionary
According to the profiles and input the object dictionary is generated as C source code file that is integrated as interface for the stack into the application. As defined in the configuration it is possible to access the objects of the object dictionary directly as C variable from the application. Alternatively the access to functions is possible via index and subindex.
EtherCAT stack configuration and initializing
According to the definitions of the object directory a configuration- and initializing file is created which secures that only the used services of the EtherCAT stack will be compiled and initialized. By doing so a memory saving configuration of the EtherCAT stack is achieved.
Electronic data sheet (ESI)
All EtherCAT devices must have an electronic data sheet that describes the parameters of the object directory electronically. The EtherCAT DeviceDesigner creates the EDS file in XML format. The files are always according to the recent object dictionary. This helps to avoid error prone work.
Device documentation
A device documentation will be created in HTML and text format. It covers the object dictionary with all its adjustments and descriptions and all other device specific adjustments. The generated documentation reflects always the recent adjustments and latest implementations. It is always up to date. The use of the generated documentation as part of the user documentation of the device is possible.
Device profile
EtherCAT DeviceDesigner profile files for the communication profiles of ETG and device profiles of CiA are available. A profile file includes templates for all object types of a profile with standard features and descriptions of the object. Objects can be imported, duplicated and adjusted to individual characteristics of the device. By use of predefined objects the time for development shortens significantly and the error prone work of manual data input falls away.
Following profile files are momentarily available for device and communication profiles:
- ETG.1000 – CAN application layer over EtherCAT (CoE)
- CiA 401 – Device Profile for Generic I/O Devices
- CiA 402 – Device Profile for Motion and Drive Controller
- CiA 419 – Device Profile for Battery Charger
