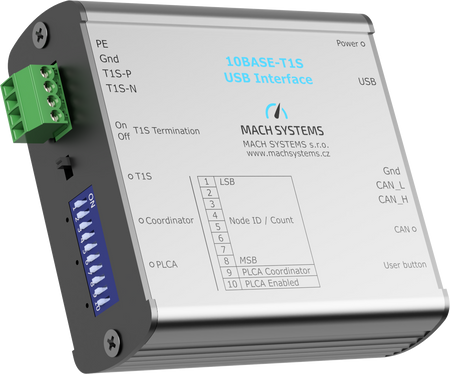

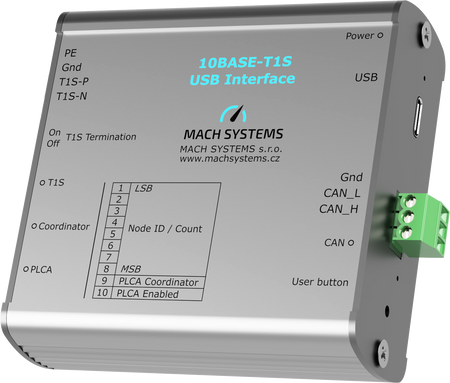

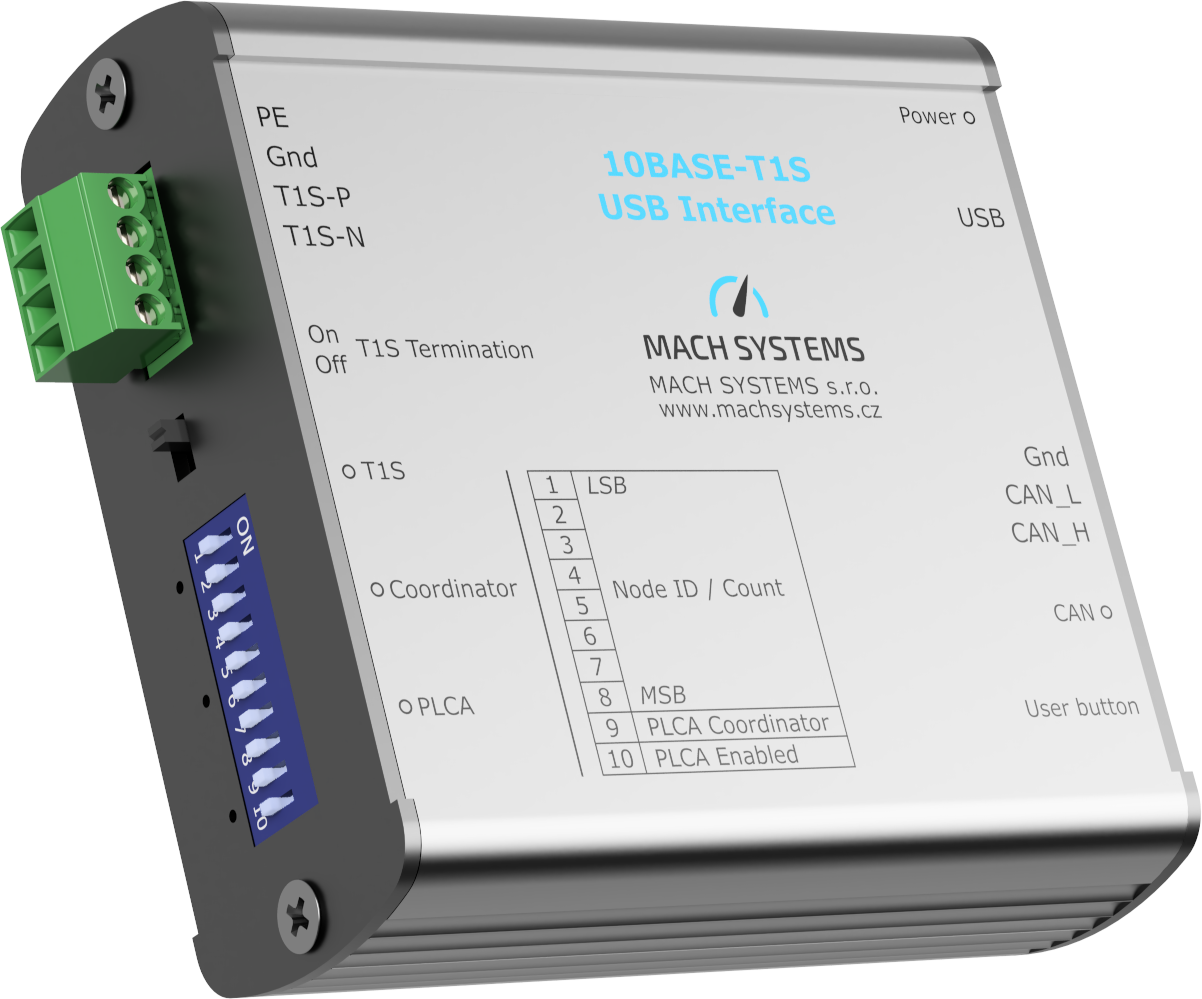

Mach Systems 10BASE-T1S-USB, MA-10BASET1S-USB-IF front and left side view

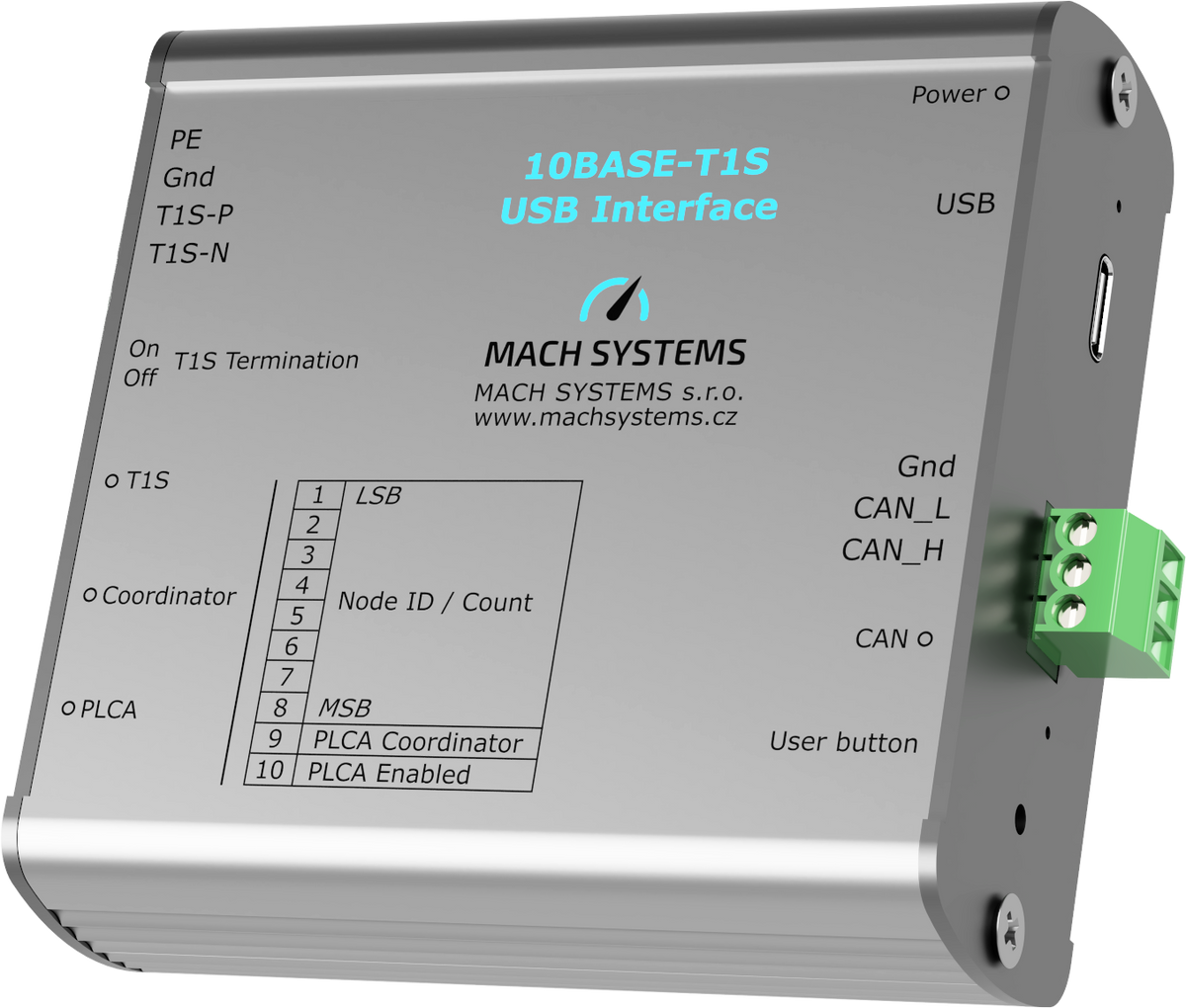

Mach Systems 10BASE-T1S-USB, MA-10BASET1S-USB-IF front and right side view
Mach Systems 10BASE-T1S-USB, MA-10BASET1S-USB-IF top side view
Mach Systems 10BASE-T1S-USB, MA-10BASET1S-USB-IF left side view

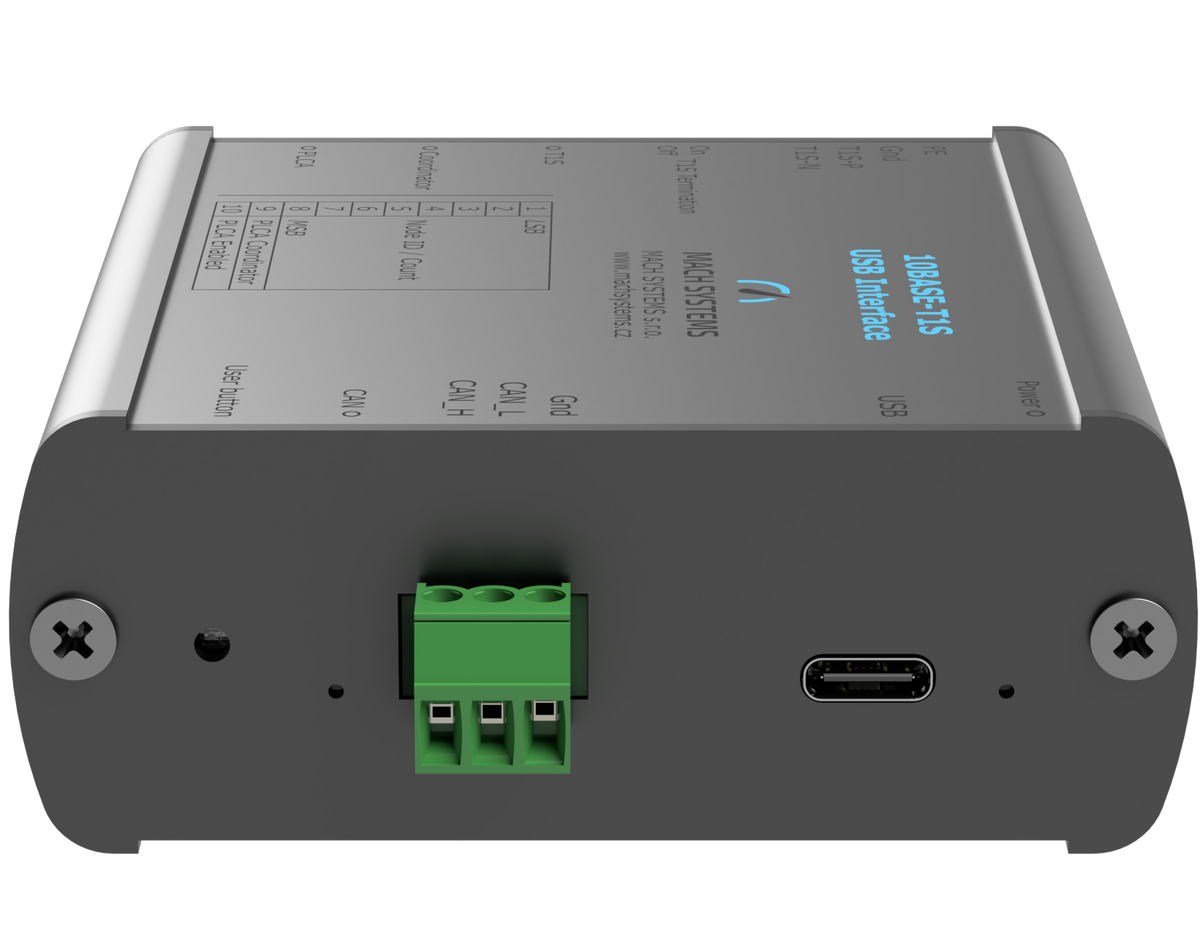

Mach Systems 10BASE-T1S-USB, MA-10BASET1S-USB-IF right side view

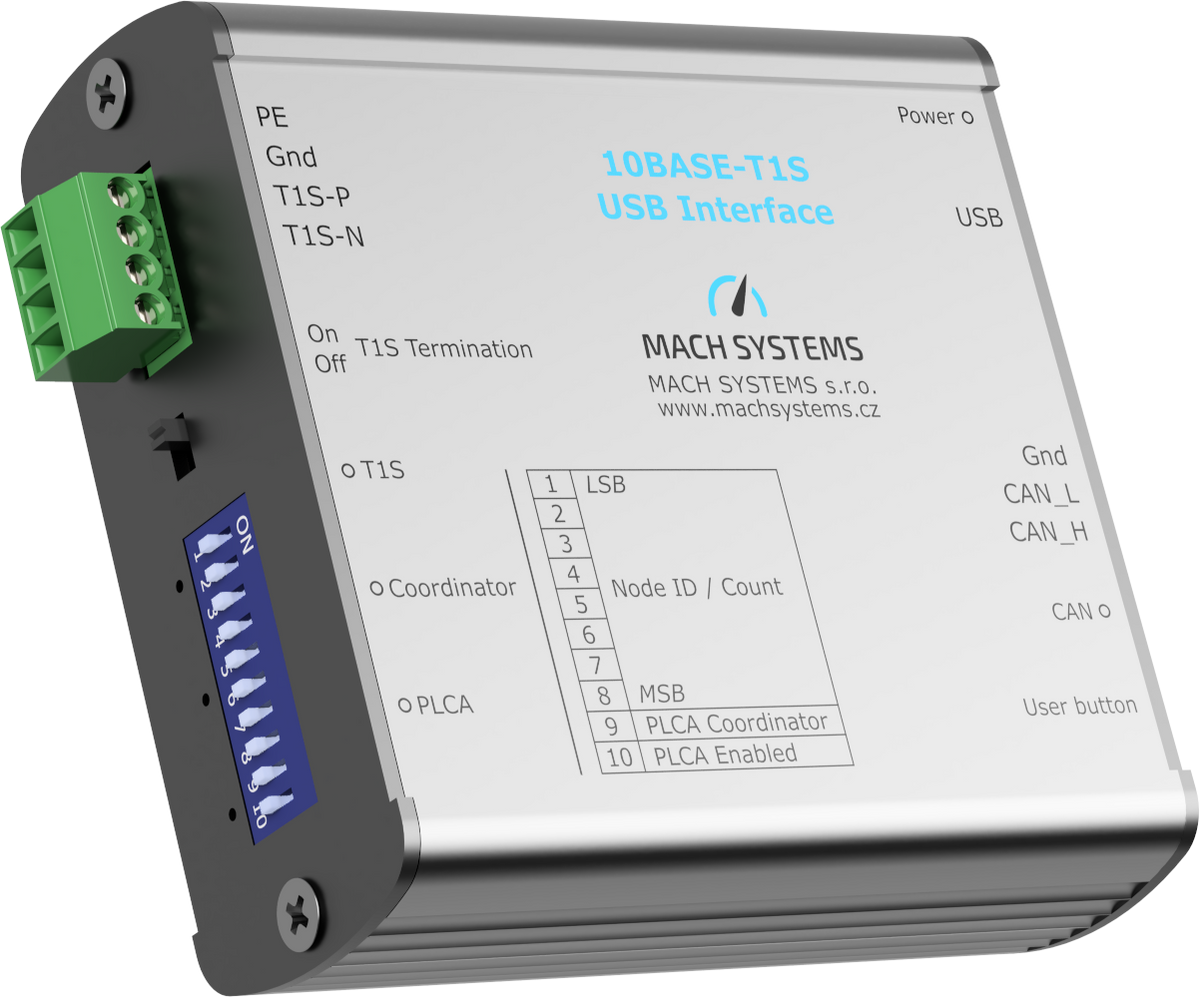

Mach Systems 10BASE-T1S-USB, MA-10BASET1S-USB-IF front and left side view

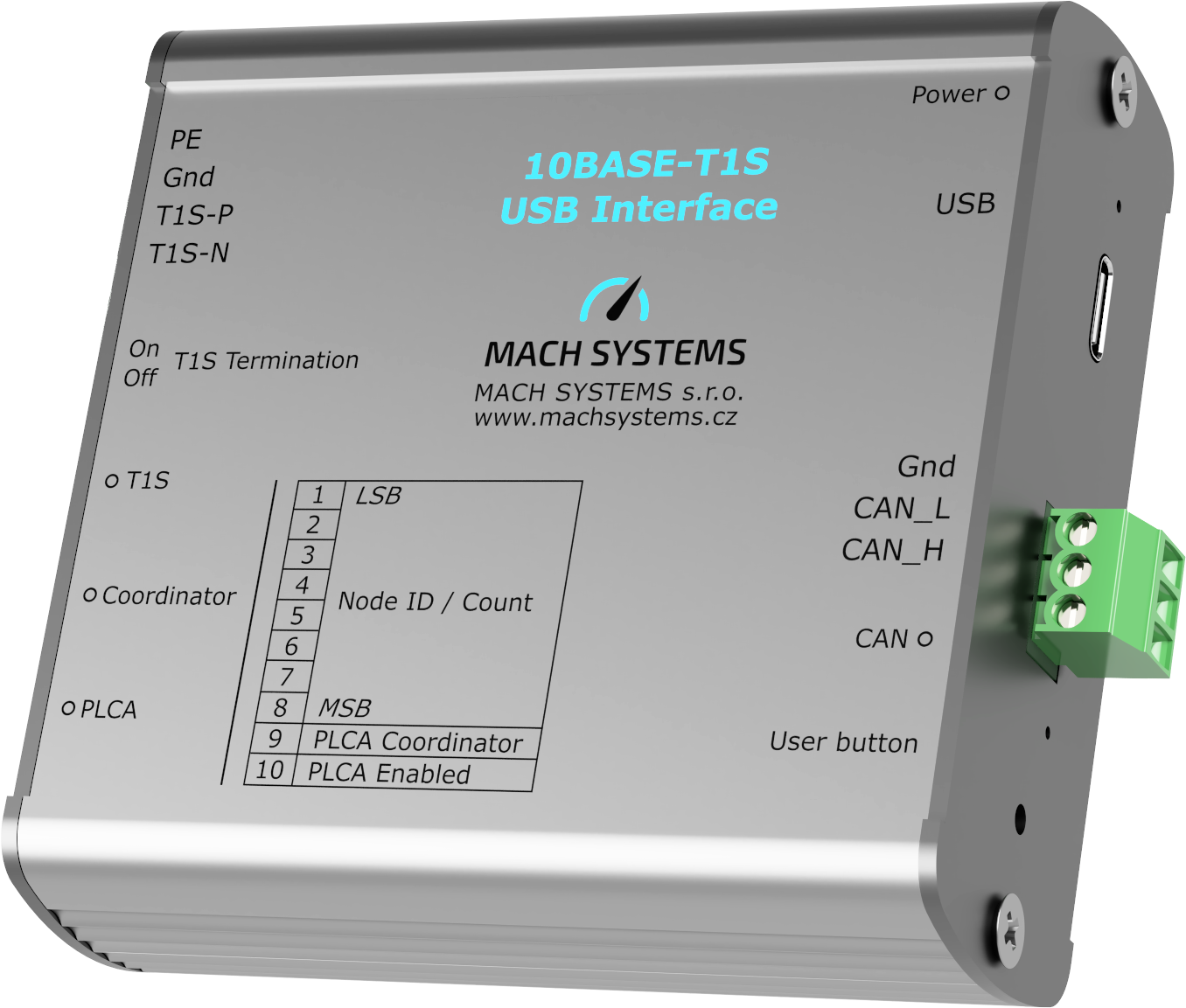

Mach Systems 10BASE-T1S-USB, MA-10BASET1S-USB-IF front and right side view

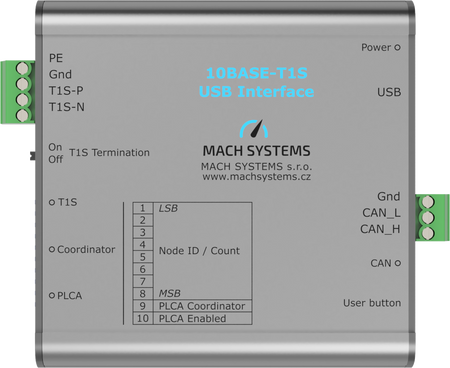

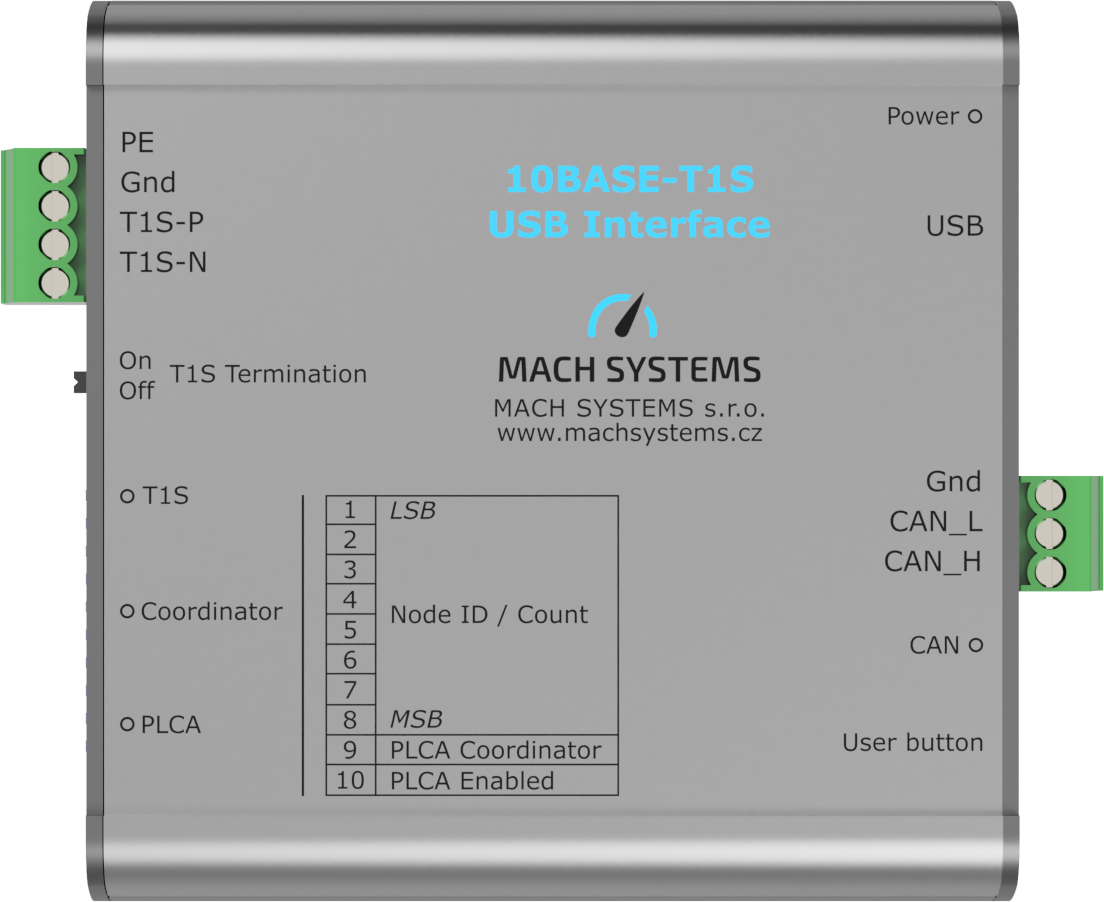

Mach Systems 10BASE-T1S-USB, MA-10BASET1S-USB-IF top side view

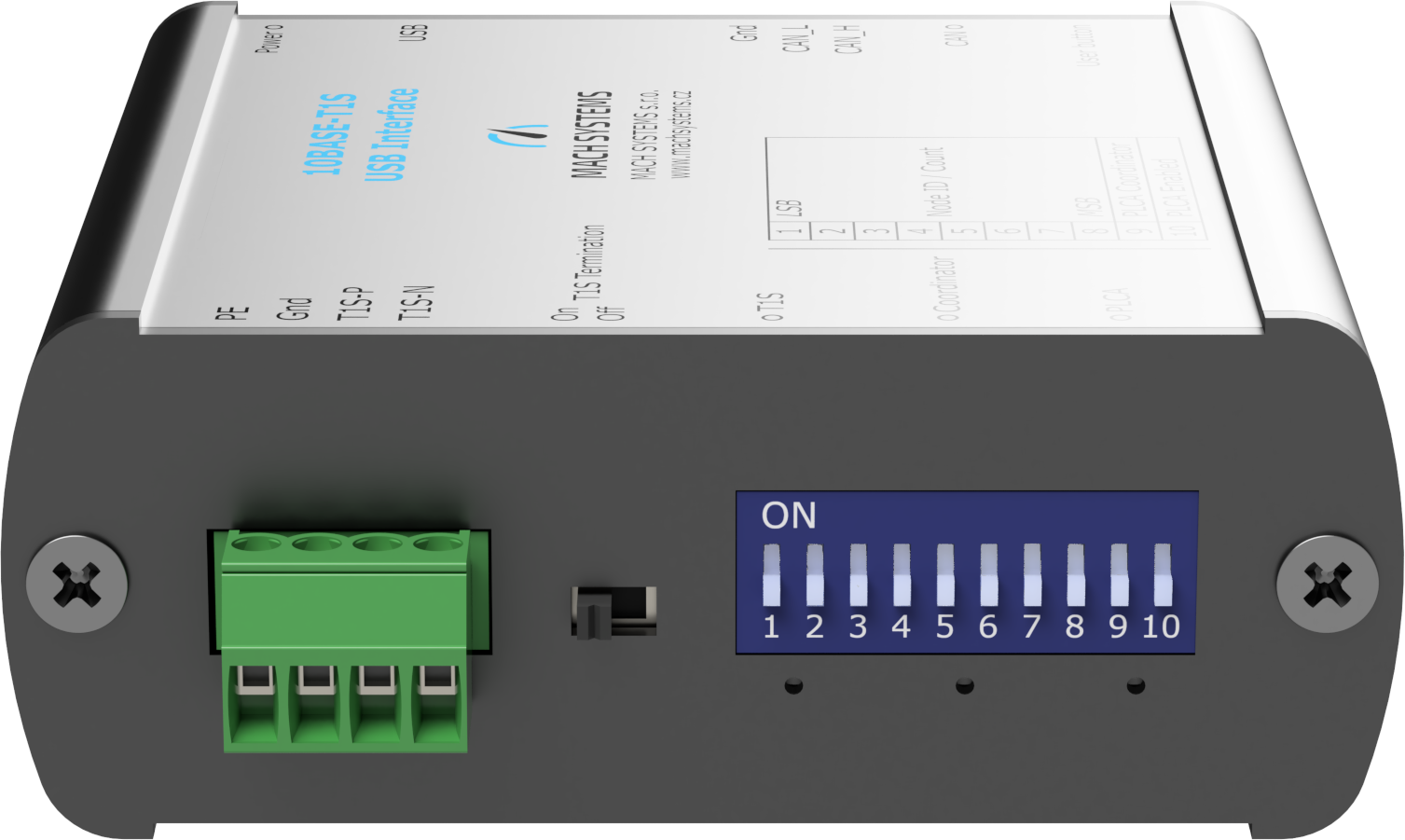

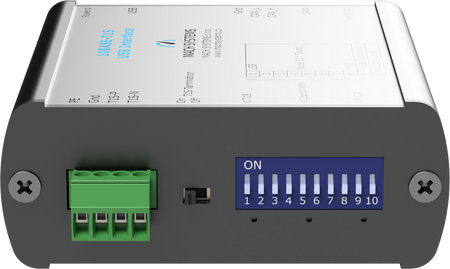

Mach Systems 10BASE-T1S-USB, MA-10BASET1S-USB-IF left side view

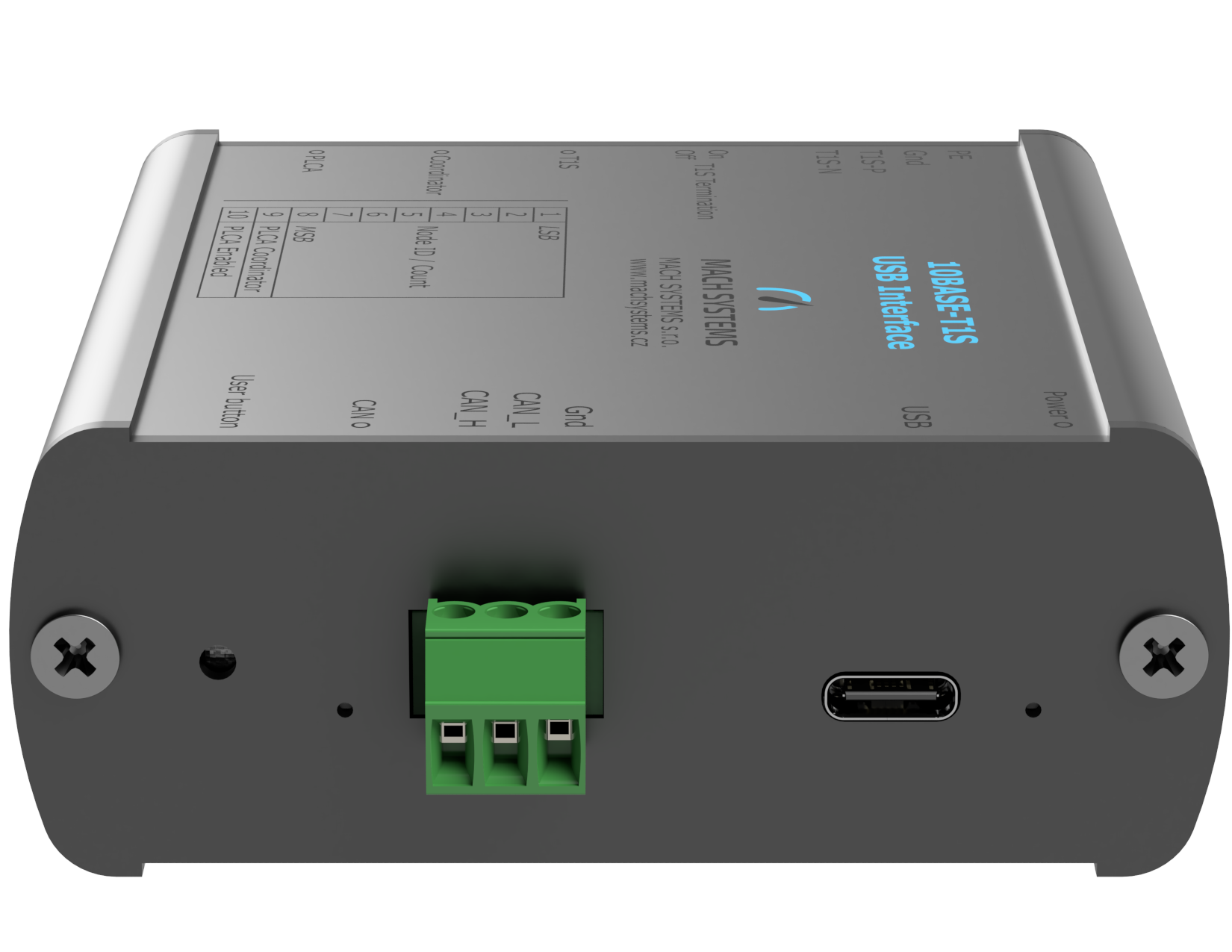

Mach Systems 10BASE-T1S-USB, MA-10BASET1S-USB-IF right side view

Images provided by manufacturer.

MACH SYSTEMS

10BASE-T1S USB Interface

SKU: MA-10BASET1S-USB-IF
(0)
$459

Orders placed before 2:30 Pacific Time usually ship the same day.

  • American Express
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

Contact us.

Acts as a generic USB network interface card with PLCA and CSMA/CD support.

The 10BASE-T1S USB Interface realizes a connection between a 10BASE-T1S network and a USB port.

The Single-Pair Ethernet 10BASE-T1S port supports both CSMA/CD and PLCA modes and allows for point-to-point and multi-drop network topologies. The port configuration, such as mode, BEACON transmission (PLCA coordinator), Node ID / Node count, and bus termination, can be easily set by on-board DIP switches. 10BASE-T1S test modes can also be generated.

The 10BASE-T1S USB Interface is an ideal tool for connecting a 10BASE-T1S ECU or a multi-drop network to a computer or laptop without an internal network card, such as ultrabooks, mini-PCs etc.

Features:

  • 10BASE-T1S to USB network interface card
  • 10BASE-T1S test modes generator
  • USB – CAN(/FD) interface
  • On-board switches for quick and easy configuration

Specification:

  • 10BASE-T1S port (IEEE 802.cg)
    • Supports CSMA/CD and PLCA modes
    • Supports PLCA coordinator and follower
    • Point-to-point or multi-drop topology
    • End-node termination can be easily enabled
    • Test modes can be programmatically generated
  • USB 2.0 network interface card
  • USB Type-C connector
  • USB-powered
  • CAN(/FD) channel
  • 5x status LED
  • 11x switch for configuration

Technical Specification:

Feature Description
Functions 10BASE-T1S USB network interface card
10BASE-T1S test mode generator
Communication channels Automotive Ethernet:



  • 10BASE-T1S (IEEE 802.3cg)
  • CSMA/CD and PLCA modes supported
  • Coordinator and Follower supported
  • Node ID/Node Count and BEACON transmission configurable
  • End-node termination can be switched on and off by on-board switch

CAN bus: CAN-HS with ISO CAN FD support (ISO 11898-1:2015; CAN2.0A/B)
USB 2.0: Generic 10 Mbit network interface card and USB VCP
LEDs 4x Dual-colour LED
1x Power LED
Buttons and switches 10x DIP switches
1x Switch (T1S termination)
1x Push button
Power USB-powered over USB Type-C
Connectors 10BASE-T1S: 4-pin removable terminal block
CAN(/FD): 3 pin removable terminal block
USB 2.0: USB Type-C
Dimensions 88 x 82 x 33 mm
Operating temperature -20 to 70 °C
Placement Table (adhesive pads included)
DIN-rail mount (bracket sold separately)
