Arcus 100/1000BASE-T1 H-MTD
Couldn't load pickup availability
Orders placed before 2:30 Pacific Time usually ship the same day.
Items are delivered with essential accessories and easy-to-follow instructions.
Questions?

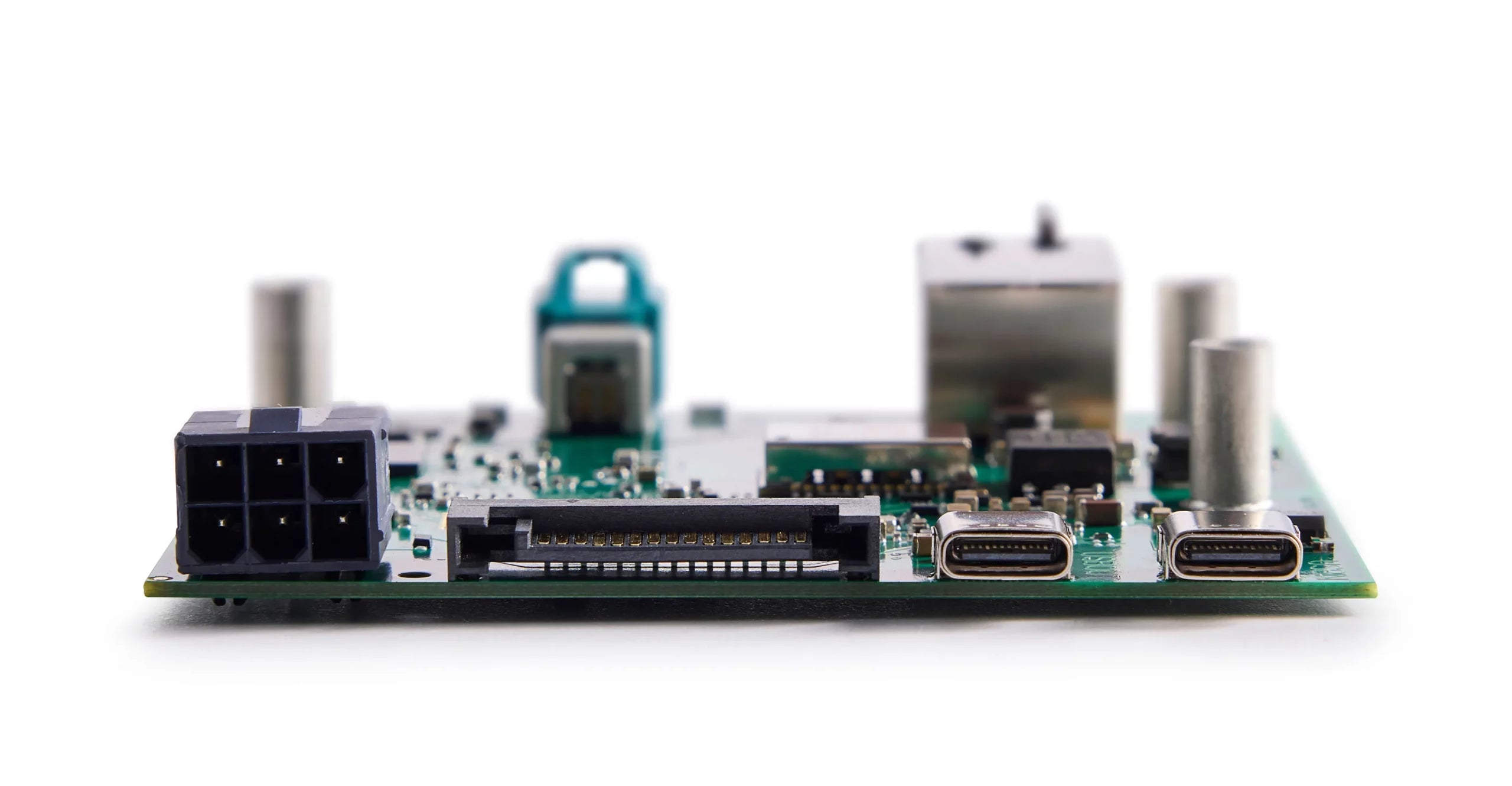

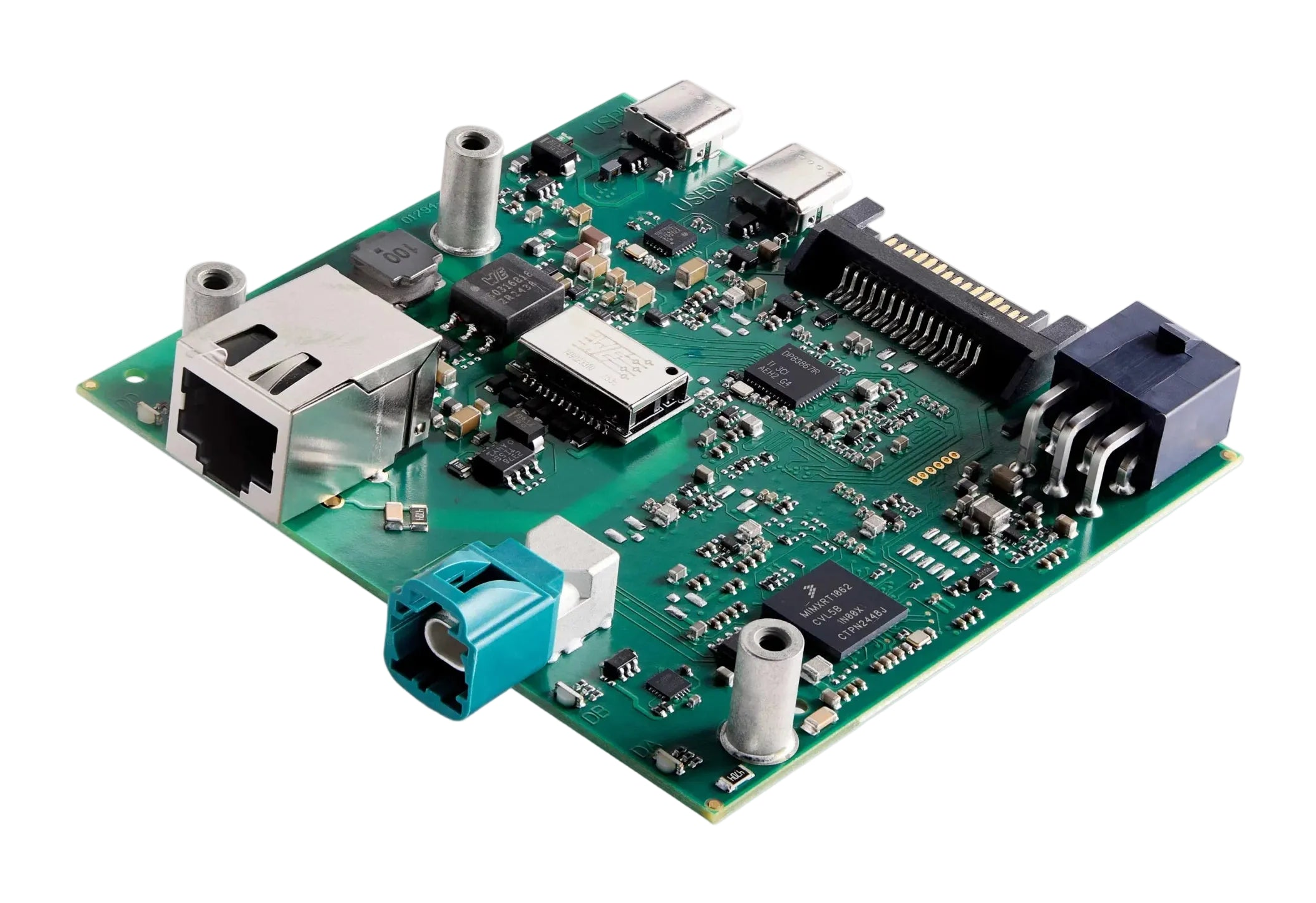

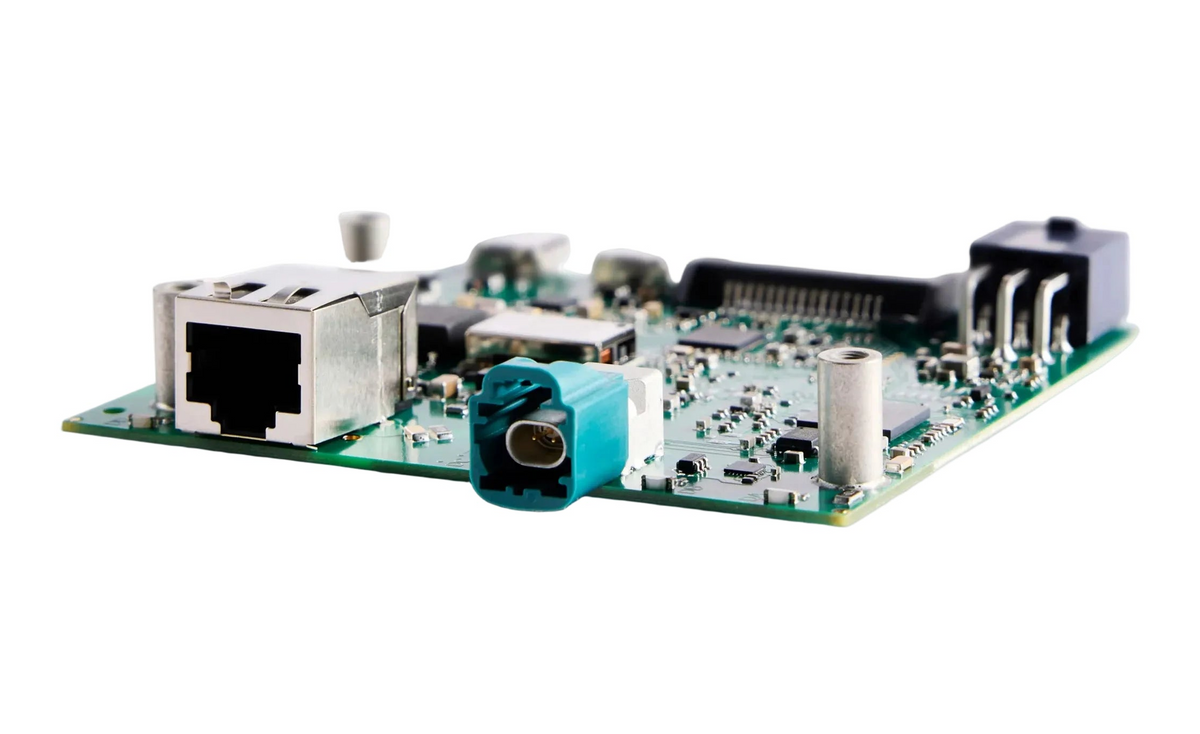

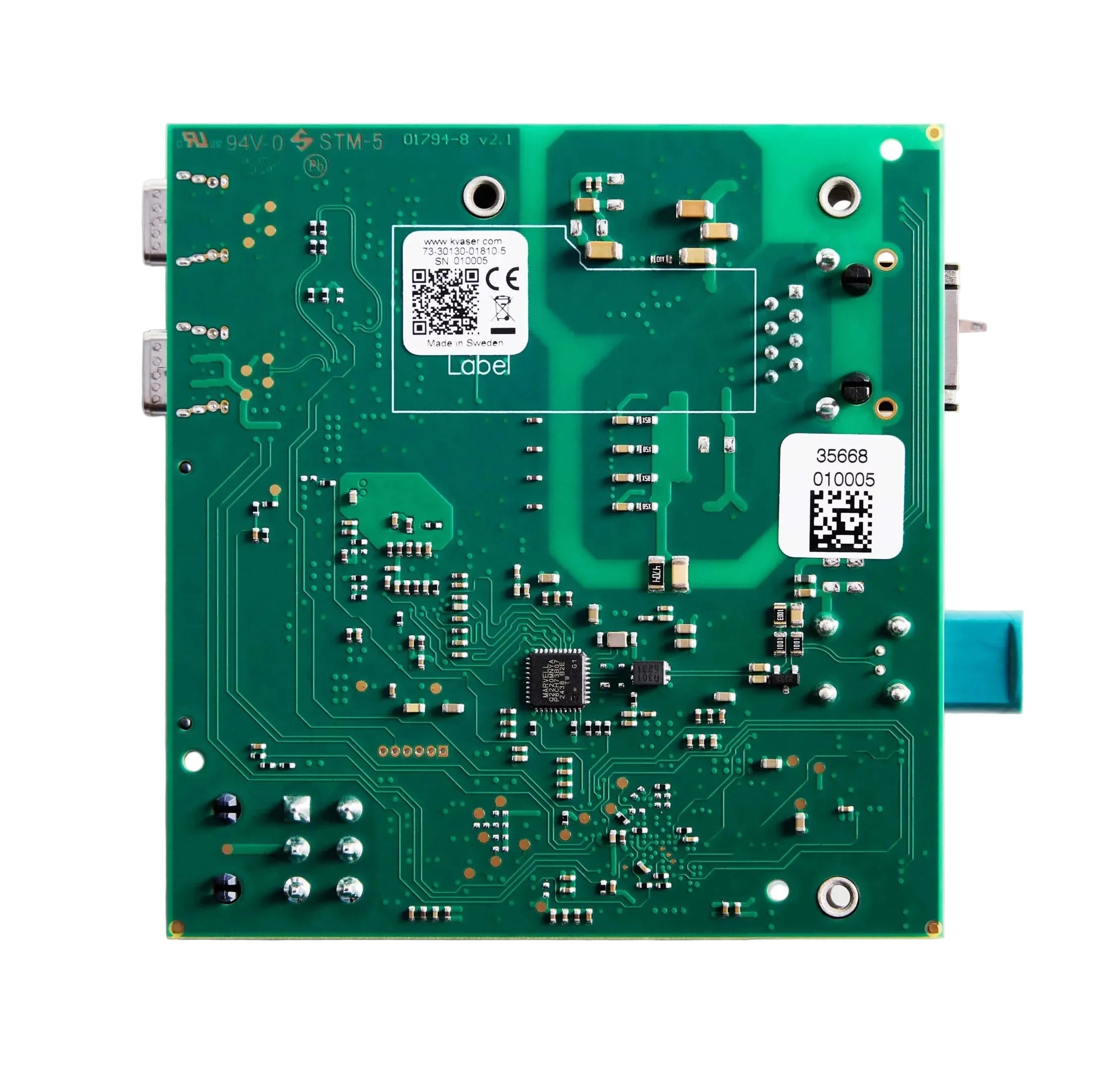

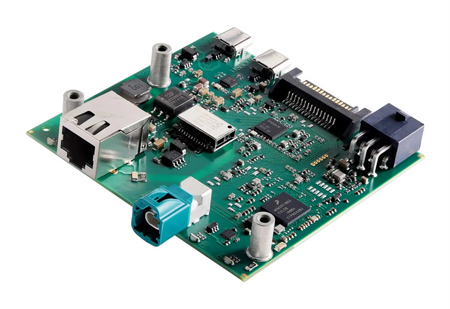

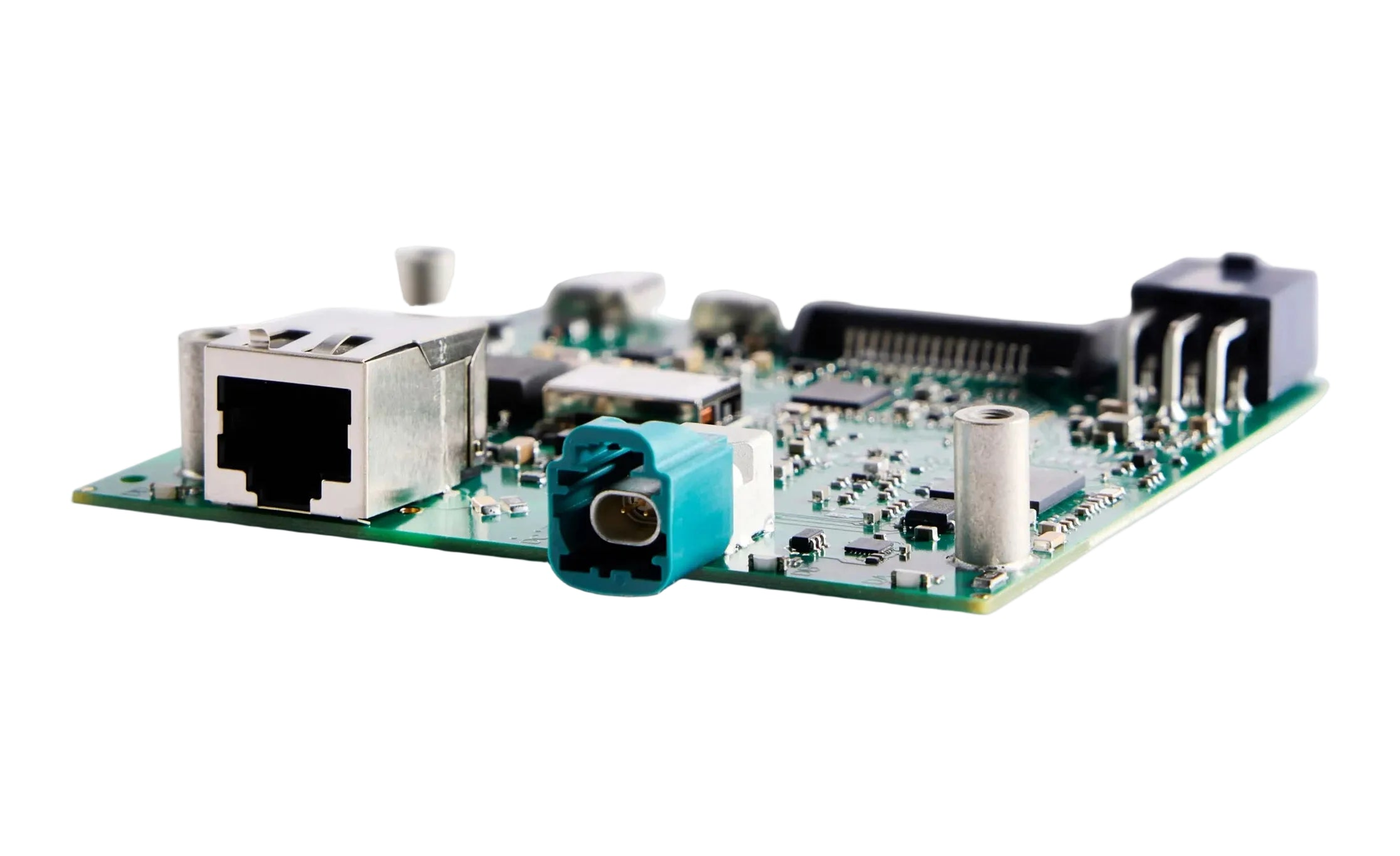

A powerful and compact Automotive Ethernet converter for embedded and standard PCs
The Kvaser Arcus 100/1000BASE-T1 H-MTD is a high-performance Automotive Ethernet media converter that simplifies access to vehicle networks. Designed for engineers and developers, Kvaser Arcus is capable of providing fast, stable, and secure conversion between 100/1000BASE-T1 Automotive Ethernet and your development workstation—ideal for lab testing, in-vehicle development, and everything in between.
Its transparent back-to-back PHY architecture enables deeper link-level insight and precise analysis of physical-layer behavior during development and validation.
Designed for simple integration into embedded computers, it can also be installed in standard computers using the Kvaser Arcus ATX Bracket (EAN 73-30130-01811-2). (Sold separately)
For flexible bench work and portable setups use Kvaser Arcus Housing (EAN 73-30130-01813-6). (Sold separately)
EAN# 73-30130-01810-5
MAJOR FEATURES:
- Monitor Automotive Ethernet traffic from a data logger or test PC during vehicle development and testing
- Flash ECUs over Automotive Ethernet, IP/Ethernet-based protocols, by connecting a vehicle network to a development PC
- Access link-level information for debugging tasks using PHY-exposed parameters such as link status, speed, and signal quality
- Transmit crafted Ethernet frames for testing ECU behavior, link robustness, and protocol handling
- Evaluate secure communication behavior by observing MAC-layer characteristics and checking resilience to invalid or unexpected traffic
- Verify cable integrity using SQI (Signal Quality Index), BER (Bit Error Rate), and built-in cable diagnostics to detect shorts, opens, and pair mismatches
- Supports testing of partial networks by allowing a PC application to emulate expected link activity when an ECU is not present
- Check early-boot communication sequences between ECUs and bootloaders during initial system start-up
- Intuitive API and GUI for adjusting PHY settings and configurations via USB
- Designed to meet the requirements of the Cyber Resilience Act (CRA) as well as Open Alliance recommendations
TECHNICAL SPECS:
Height 20 mm
Length 85 mm
Width 81 mm
Weight 50g
Regulatory Compliance CE, FCC
Temp range -40 C to 85 C

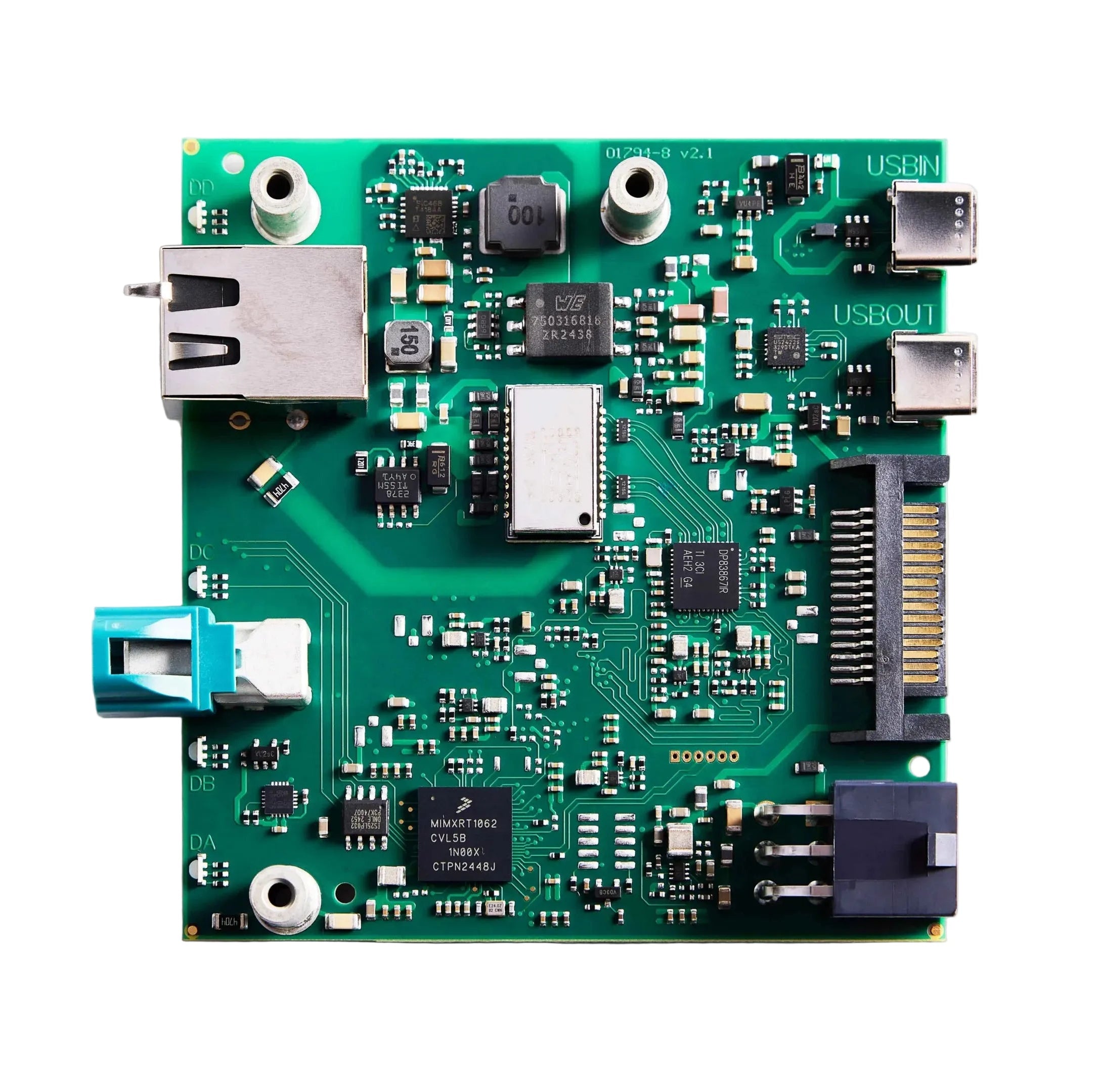

USB IN USB 2.0 Type-C
USB OUT USB 2.0 Type C

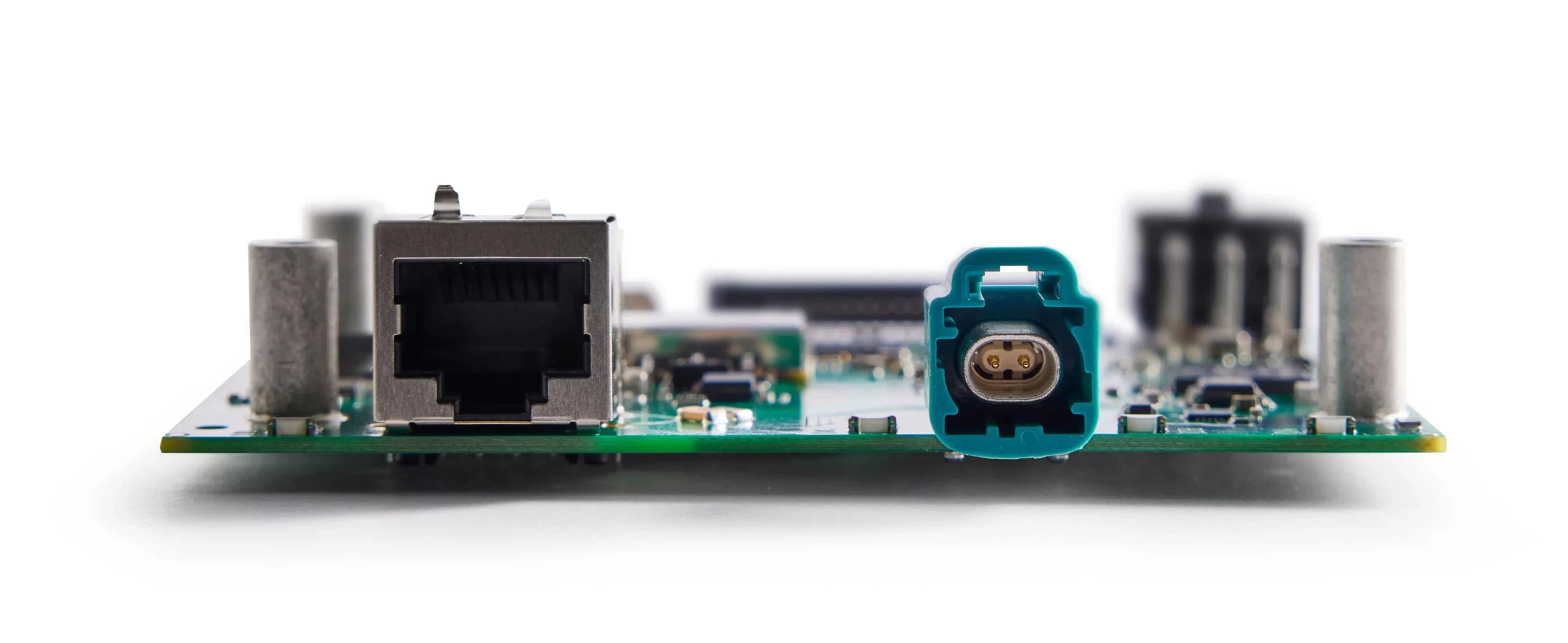

Ethernet Channel 1 100/1000BASE-T, RJ45 8p8
Ethernet Channel 2 100/1000BASE-T1, H-MTD KEY Z
DOWNLOADS:
- Arcus 100/1000BASE-T1 H-MTD User’s Guide: Download
- Arcus 100/1000BASE-T1 H-MTD Datasheet: Download
- Arcus 100/1000BASE-T1 H-MTD Datasheet: US Letter: Download
