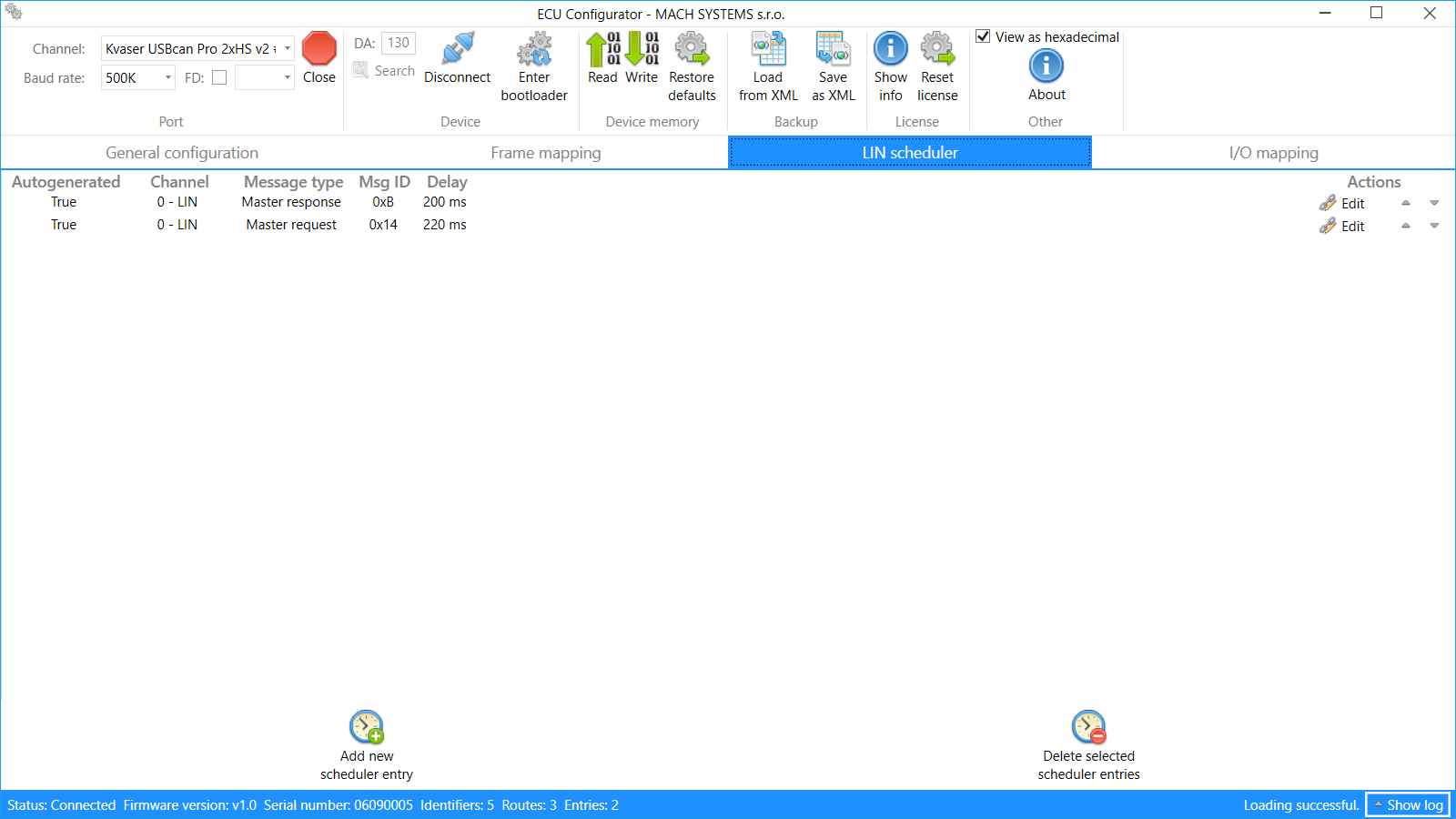

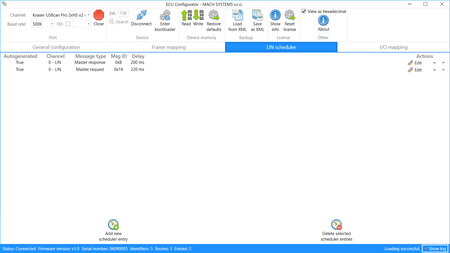

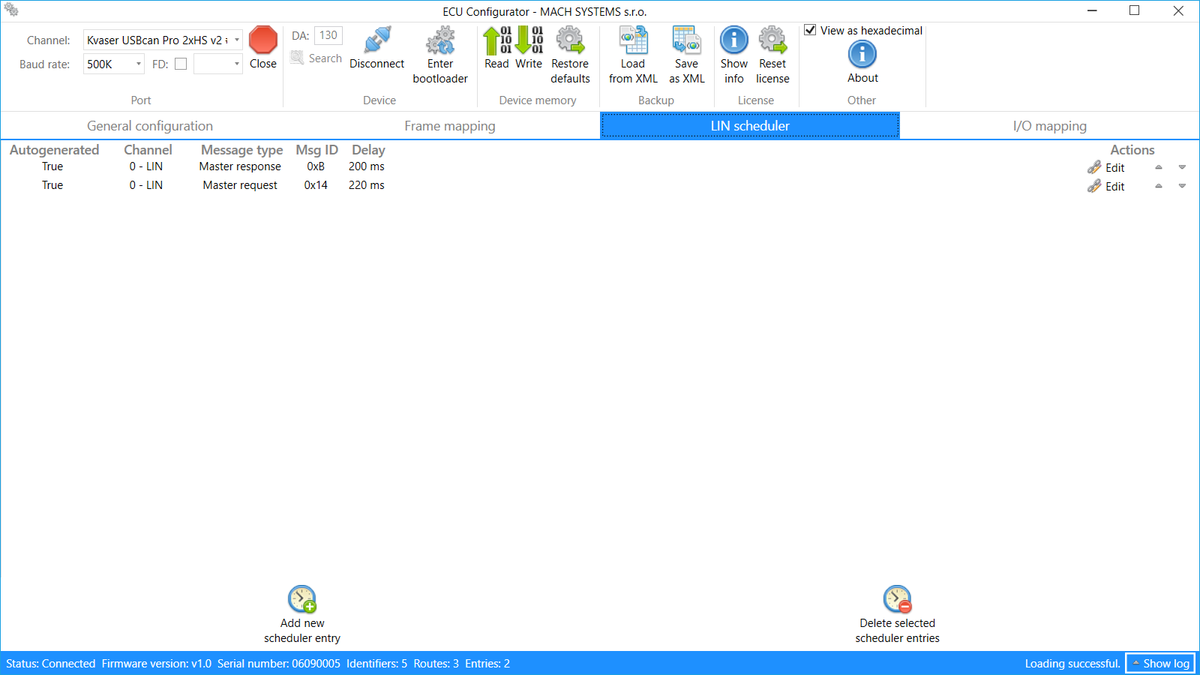

The ECU Configurator is a PC application that can configure our Gateway ECUs over CAN bus. The software can be used to set communication channels (CAN, CAN FD, LIN) parameters, frame routing and mapping, I/O mapping, and LIN scheduler for LIN master.
A Kvaser CAN interface is needed in order to use the application. The ECU Configurator can be purchased with or without the Kvaser interface.
Software License
This is a perpetual license valid for one company. The license can be installed on an unlimited number of computers, and can be used with any Kvaser CAN interface and any of our Gateway ECUs and configurable gateways. The license is not bound to a computer nor a serial number of a Kvaser CAN interface.
- Data conversion between CAN, CAN FD and LIN buses
- One CAN channel
- One optional CAN FD channel
- One LIN channel
- SAE J1939 support
- Configurable frame and data routing between channels
- Up to seven multi-purpose inputs and outputs with current measurement
- Configurable I/O mapping onto CAN or LIN frame data
- PC tool for easy configuration
- Waterproof automotive-grade ECU
- Suitable for 12 V and 24 V systems
- ECE-R10 (E1) approval (planned for 2021/Q4)
- Customisation on request
Usage Examples:
- CAN-LIN bridge
- CAN – CAN FD gateway
- Remote I/O ECU
- Universal SAE J1939 ECU

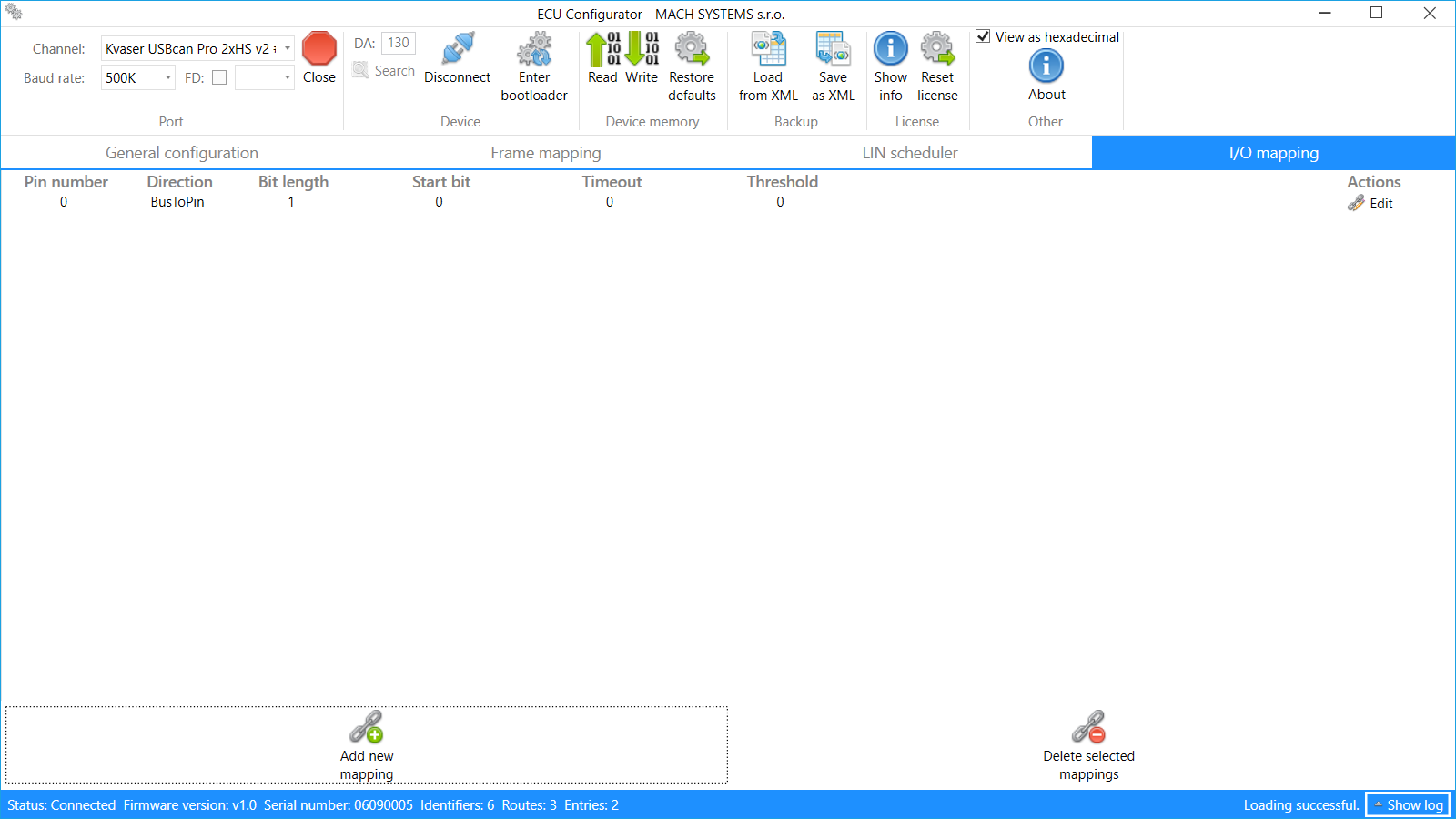

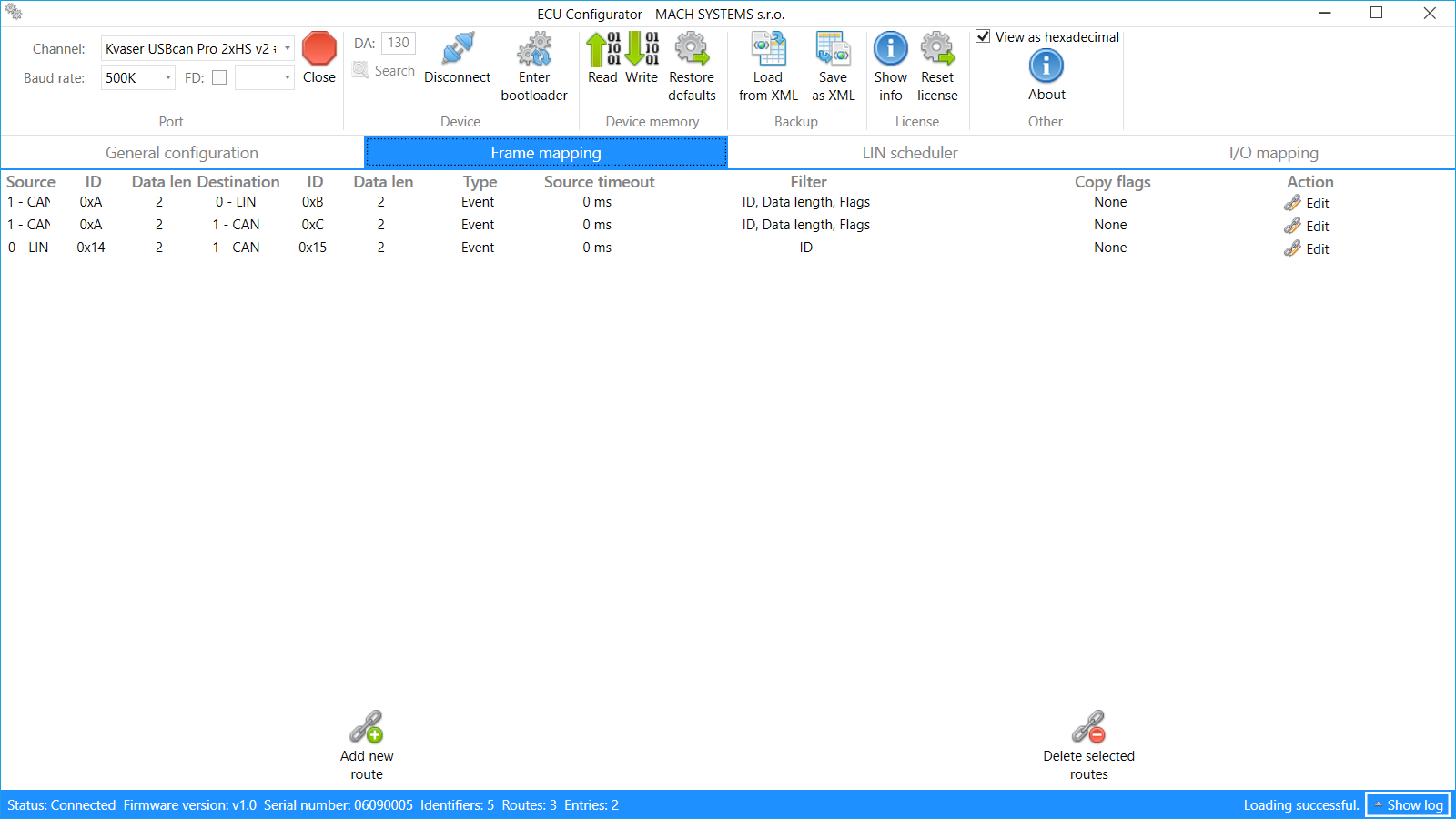

The ECU Configurator (p/n: GW-ECU-CONFIG-TOOL) PC application allows to easily configure the ECU over CAN bus. The user can set ECU’s mode, communication channels’ parameters, inter-channel frame conversion (frame mappings), and I/O mappings. The configuration is stored in the device’s non-volatile memory.
The CAN-LIN Gateway is available in several variants that offer combinations of single-CAN / dual-CAN (CAN FD supported), with/without CAN termination, and automatic wake-up and sleep based on CAN bus activity / control over the ignition switch (KL15) input signal.
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Communication Channels | |
| CAN | CAN 2.0B (baud rates: 125 / 250 / 500 / 1000 KBaud) Wake-up capable Bus termination: optional (see Ordering Information) |
| LIN | LIN v2.2a – ISO 17987 (baud rates: 9600 / 10417 (SAE J2602), 19200 Baud), supports both Master and Slave, and Classic/Enhanced checksums; User-configurable LIN Master’s scheduler |
| CAN FD | ISO CAN FD (baud rate up to 8 MBaud): optional Bus termination: optional see Ordering Information |
| CAN Bus Protocols | SAE J1939, Raw CAN |
| Inputs and Outputs | |
| Number of channels | 4 – 7 (see Ordering Information) |
| Channel mode | Configurable: Analogue/digital input, HSD output |
| Analogue inputs | 0 – 30 V, 12-bit ADC, sample rate 10 ms |
| Digital inputs | Configurable voltage threshold HSD with short-circuit protection and current measurement; |
| Digital outputs | PWM capable Max. current 1.5 A per channel (2 A in total for IO1-4 and IO5-IO7) |
| Mapping | Inputs and outputs can be mapped onto LIN and CAN frame data byte |
| Electrical and Mechanical | |
| Input voltage | 7 – 30 V DC |
| Power consumption | Operation: 0.04 A @ 12 V (+20 °C) Sleep: 40 µA @ 12 V (+20 °C) |
| Power management | Options : Automatic wake-up and sleep based on CAN bus activity KL15 (Ignition switch) signal |
| MCU | 16-bit Automotive DSP |
| Firmware | Firmware update over CAN bus |
| Connector | 12-pin Molex MX150 Mating connector: Molex 33472-1201 (p/n: GW-ECU-CONNECTOR-12p) |
| Dimensions (L x W x H) | 130 x 75 x 43 mm (5.12” x 2.95” x 1.69” in) |
| Weight | 175 g (0.386 lb) |
| Operating temperature | -40 to 85 °C (-40 to 185 °F) |
| Ingress Protection | IP67 |
| Certifications and Tests | |
| Road vehicles | ECE-R10 (E1) approval (planned for 2021/Q4) |
| Transient pulses | ISO 7637-2 |
| EMC | CISPR 25 |
| ESD | EN 61000-4-2 |
| Vibrations | EN 60068-2-27 EN 60068-2-64 |
| User Configuration | |
| ECU modes |
Communication gateway: Configurable bi-directional frame mapping between CAN and LIN channels, digital and analogue inputs and outputs mappable onto CAN or LIN data frames. SAE J1939: ECU’s inputs and outputs are available over PGNs. Dynamic addressing and DM1 supported. |
| Communication channel parameters | CAN and CAN FD: Baud rate, sample point LIN: Baud rate, Checksum type, Master/Slave, scheduling table for LIN Master |
| Configuration | User’s configuration is stored in the ECU’s non-volatile memory. |
| PC application | ECU Configurator Tool (p/n: GW-ECU-CONFIG-TOOL) is a Windows application that allows to easily configure the ECU over CAN bus. |
| Data Sheet |
| CAN-LIN Gateway ECU Data Sheet in PDF Format |
