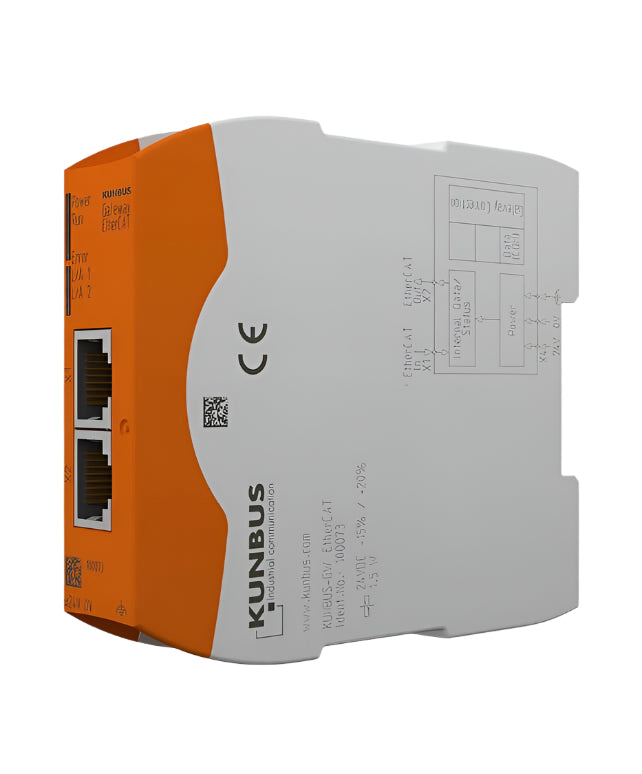

Expansion module for EtherCAT networks
Review the UL Certificate.
When using our RevPi Gate EtherCAT gateway, integrating Revolution Pi into a EtherCAT network is no problem. Like all Revolution Pi expansion modules, the gateway is connected to the base module RevPi Core via the overhead Pi Bridge connector. Thus, up to two gateway modules can be used per system.
Review the UL Certificate.
|
Module version |
Slave |
|
Network connector |
2 x RJ45 |
|
max. baud rate |
100 Mbit/s |
|
I/O data |
512 Bytes IN/OUT |
|
Protection class |
IP20 |
|
Power |
24 V DC (-15/+20%) |
|
Current consumption |
100 mA |
|
Dimensions |
110.4 x 22.5 x 101.4 mm |
|
Weight |
approx. 90 g |
|
Reverse voltage protection |
Yes |
|
Operating temperature |
0 °C to 60 °C |
|
Storage temperature |
-25°C to 70 °C |
|
max. relative humidity (at 40 °C) |
93 % (non condensing) |
|
Casing material |
Polycarbonate |
|
Mounting |
DIN rail (EN50022) |
CAN Ethernet Gateway - Product Flyer
Gateway module EtherCAT Slave manual (English)
XML File
Gateway Module EtherCAT
