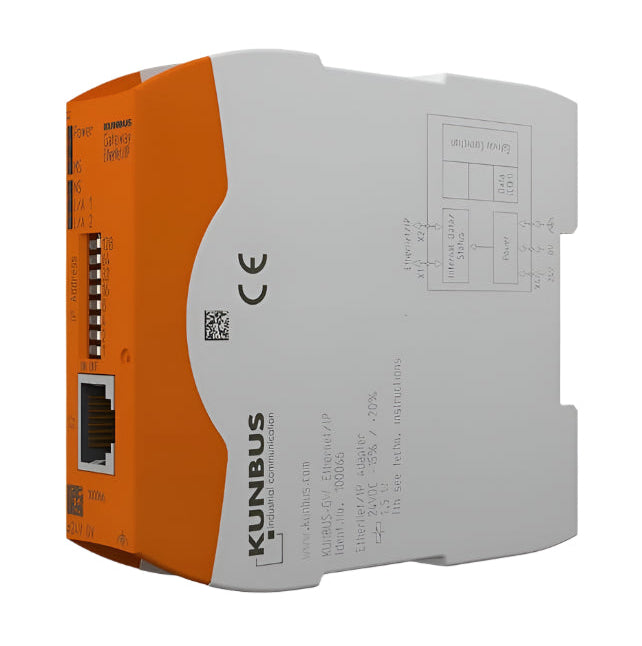

Gateway Module - Ethernet/IP Slave

SKU #: KU-PR100066

Expansion module for Ethernet/IP networks

When using our RevPi Ethernet/IP gateway module, integrating Revolution Pi into a Ethernet/IP network is no problem. Like all Revolution Pi expansion modules, the gateway is connected to the base module RevPi Core via the overhead Pi Bridge connector. Thus, up to two gateway modules can be used per system.

Review the UL Certificate.

Module version Slave
Network connector 2 x RJ45
max. baud rate 10/100 Mbit/s
I/O data max. 480 Bytes IN/OUT
Protection class IP20
Power 24 V DC (-15/+20%)
Current consumption 100 mA
Dimensions 110.4 x 22.5 x 101.4 mm
Weight approx. 90 g
Reverse voltage protection Yes
Operating temperature 0 °C to 60 °C
Storage temperature -25°C to 70 °C
max. relative humidity (at 40 °C) 93 % (non condensing)
Casing material Polycarbonate

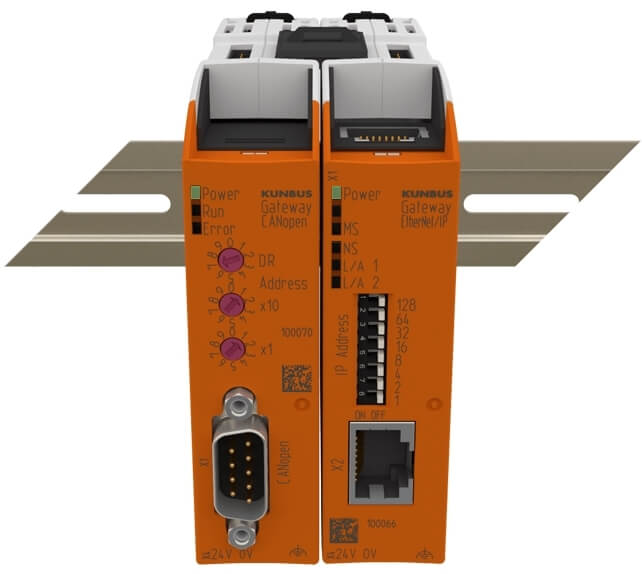

Mounting DIN rail (EN50022)
Gateway module Ethernet/IP Slave manual
Gateway module Ethernet/IP Slave Manual in PDF Format
Gateway Module EtherNet/IP EDS File
Gateway Module EtherNet/IP EDS File
