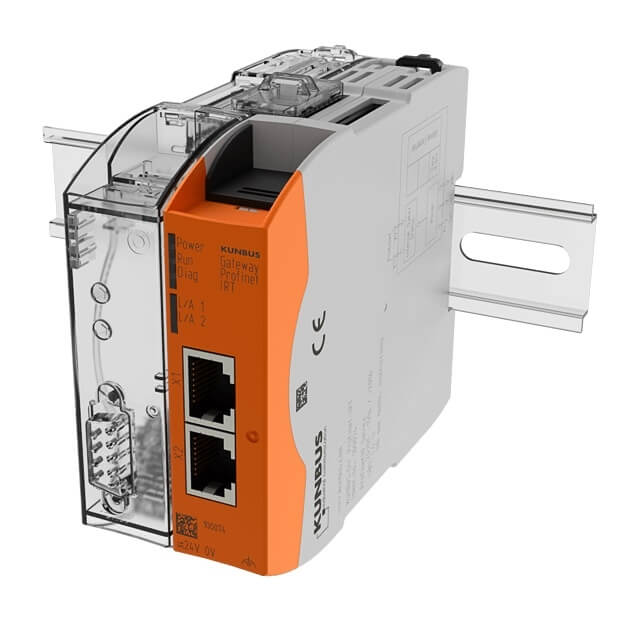

Gateway Module KU-PR100074 PROFINET IRT Slave side view with mounting

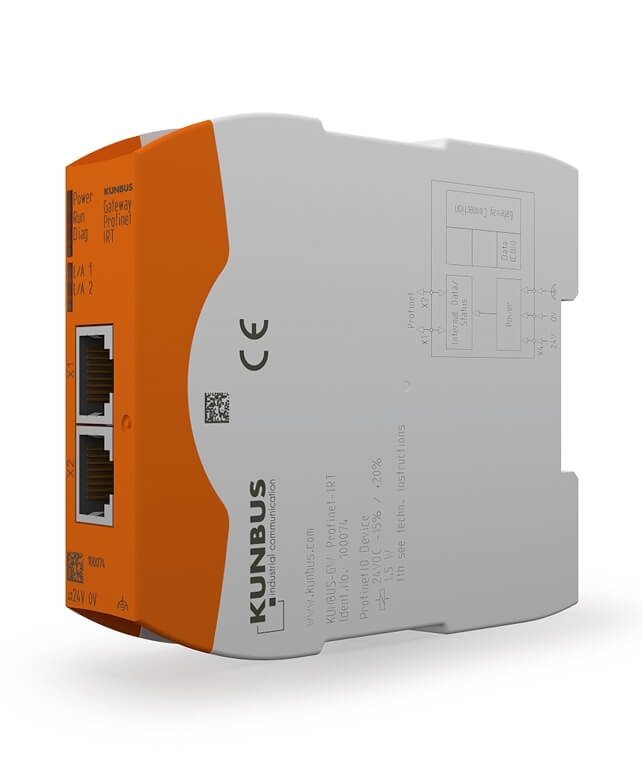

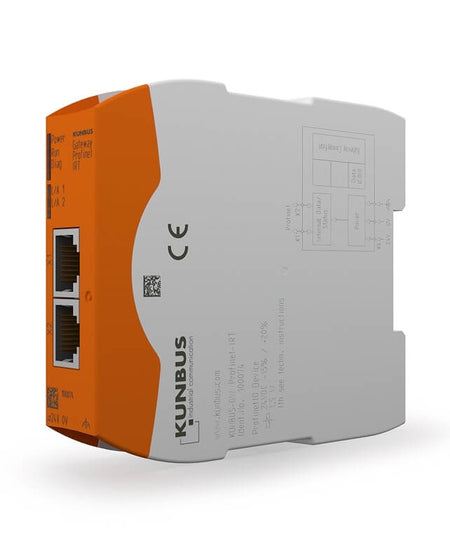

KUNBUS Gateway Module KU-PR100074 - PROFINET IRT Slave back and side view

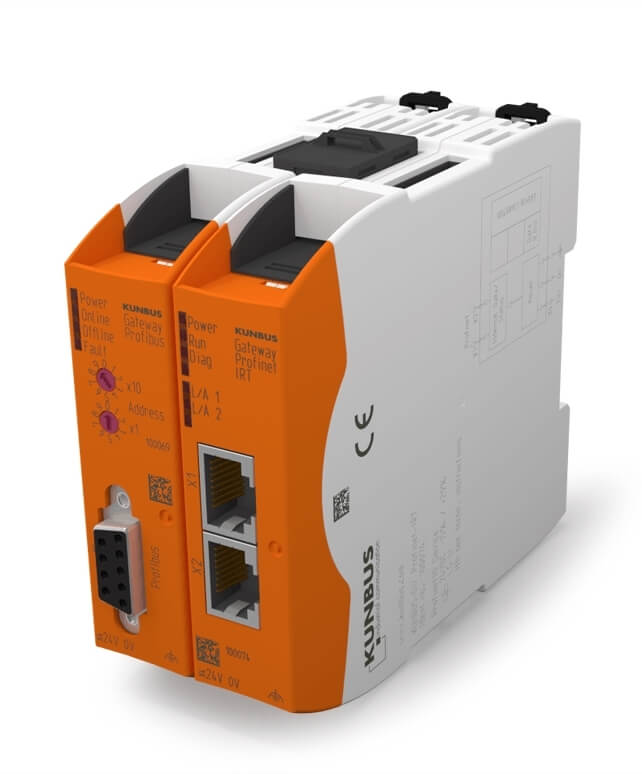

Kunbus KU-PR100074 Gateway Module - PROFINET IRT Slave front and side view
Kunbus KU-PR100074 Gateway Module - PROFINET IRT Slave end view
Gateway Module KU-PR100074 PROFINET IRT Slave side view with mounting
KUNBUS Gateway Module KU-PR100074 - PROFINET IRT Slave back and side view
Kunbus KU-PR100074 Gateway Module - PROFINET IRT Slave front and side view
Kunbus KU-PR100074 Gateway Module - PROFINET IRT Slave end view

Images provided by manufacturer.

KUNBUS

Gateway Module - PROFINET IRT Slave

SKU: KU-PR100074
(0)
$247

Orders placed before 2:30 Pacific Time usually ship the same day.

  • American Express
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

Contact us.

Expansion module for PROFINET Networks

When using our RevPi Gate PROFINET gateway, integrating Revolution Pi into a PROFINET network is no problem. Like all Revolution Pi expansion modules, the gateway is connected to the base module RevPi Core via the overhead Pi Bridge connector. Thus, up to two gateway modules can be used per system.

Phytools SKU to EAN#

PR100074              4260498390045



Review the UL Certificate.



Module version Slave
Network connector 2 x RJ45
max. baud rate 100 Mbit/s
I/O data 512 Byte IN/OUT
Protection class IP20
Power 24 V DC (-15/+20%)
Current consumption 100 mA
Dimensions 110.4 x 22.5 x 101.4 mm
Weight approx. 90 g
Reverse voltage protection Yes
Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C
max. relative humidity (at 40 °C) 93 % (non-condensing)
Casing material Polycarbonate
Mounting DIN rail (EN50022)
User Manual
KUNBUS-GW PROFINET User Manual in PDF Format
Certificate
KUNBUS-GW PROFINET Certificate in PDF Format
XML File
KUNBUS-GW PROFINET XML Files
