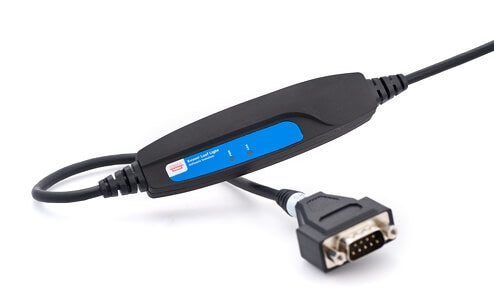

Kvaser Leaf Light HS GI

KV-00411-5

Product is no longer available.

Liquid error (product-EOL line 197): include usage is not allowed in this context

NOTE: This product version has been discontinued by the manufacturer and is no longer available to purchase. Customers are encouraged to consider the manufacturer recommended replacement product, part# KV-00685-0.

The Kvaser Leaf Light HS GI (with Galvanic Isolation) supports full speed USB interface for CAN with high performance at a low cost. Kvaser Leaf Light is a reliable low cost product. Loss free transmission and reception of standard and extended CAN messages on the CAN bus is transmitted with a time stamp precision of 100 microseconds.

  • The Kvaser Leaf Light supports full speed USB interface for CAN with high performance at a low cost.
  • Kvaser Leaf Light is a reliable low cost product. Loss free transmission and reception of standard and extended CAN messages on the CAN bus is transmitted with a time stamp precision of 100 microseconds.
  • The low current consumption, 70 mA, reduces the power drain from your laptop. Application Areas: Human Interfaces, testing equipment, different types of one channel tools, multi channel tools not requiring channel synchronization, etc.
Galvanic Isolation Yes
Bitrate 5-1000 kbit/s
Silent mode No
Error frame generation No
Error frame detection Yes
Weight 100 grams
Timestamp resolution 100
On board buffer Yes
Maximum message rate, send 8000
Maximum message rate, receive 8000
Sound No
Clock synchronization N/A
Dimensions (WxLxH) 25x100x20 mm (1.0x3.9x0.8in.)
Kvaser Leaf User's Guide
User's Guide for the Kvaser Leaf
Version 11.0.0
Kvaser Leaf Light GI Datasheet
Datasheet for the Kvaser Leaf Light GI
Version 2013
Kvaser Leaf Installation Guide
Kvaser Leaf Installation Guide
Version 4.1.0
Kvaser DIADEM Driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version 1.0.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
Kvaser Device Firmware
Firmware update for Kvaser Leaf (all types), Kvaser Memorator Professional, Kvaser Memorator SemiPro, Kvaser Memorator Light USBcan Professional, and Kvaser Blackbird.
Version 3.2.302
Kvaser CANKing
A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
Version 5.3.889
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately
Version 5.6.0
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version 6.1.0
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version 5.3.0
Remove old drivers
Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
Version 3.9c
