Kvaser Memorator Pro 5xHS CB

Save 9%

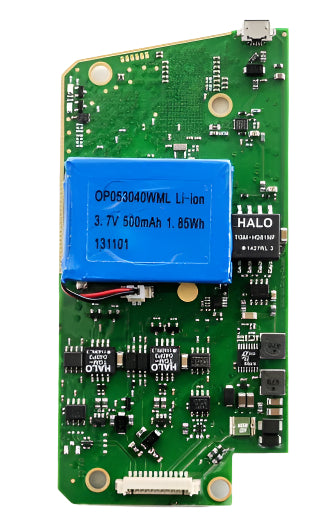

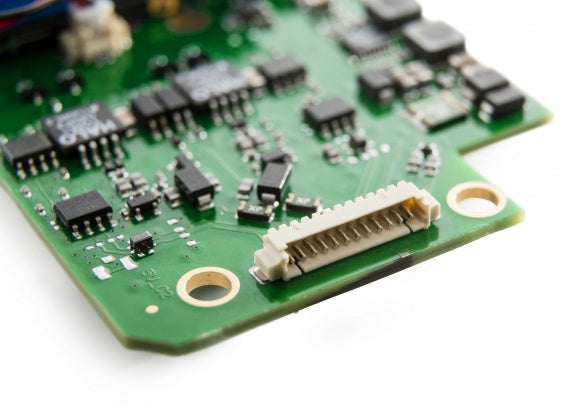

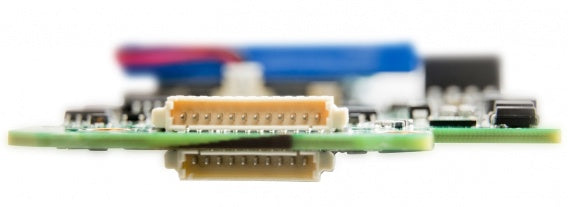

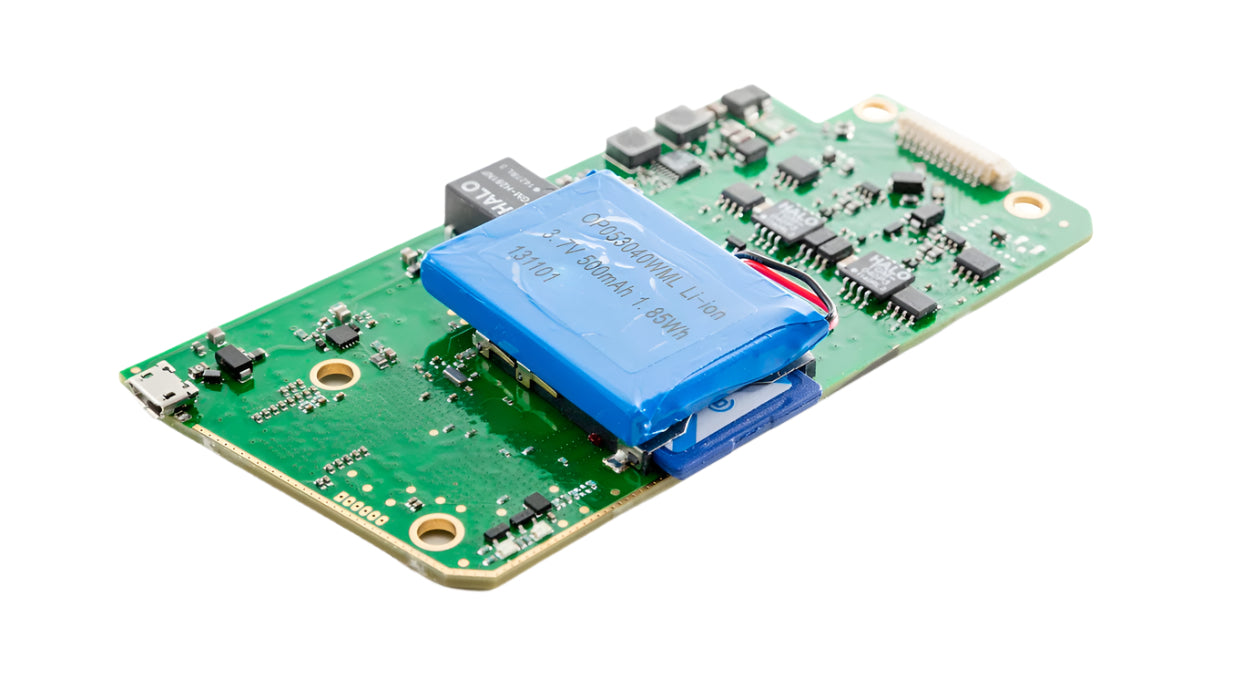

The Memorator Pro 5xHS CB is a bare circuit board version of a five channel, high performance CAN (Controller Area Network) bus interface and standalone data logger. Now with CAN FD support, the updated data logger allows users to monitor and collect data from up to five CAN channels using a single device. In interface mode the device connects to the PC via USB while in standalone mode it logs data to an SD card.

The Memorator Pro 5xHS CB offers advanced features such as Message Filtering, Triggers, Error Detection and Generation, Silent Mode, an expandable SD Card slot, Galvanic Isolation, and much more. Configurable using Kvaser's Memorator Config Tool, it is also capable of running user-developed scripts, written in the Kvaser t programming language. Guidance in creating t programs is supplied.

          • Monitor 5 CAN channels simultaneously using just one device, or connect the USB cable with a single 9 pin DSUB for single CAN channel monitoring.
          • Automatically time synchronizes the data transmitted and received across all five buses.
          • Built-in Kvaser MagiSync technology time synchronizes with other Kvaser interfaces connected to the same PC, resulting in simpler and more accurate multi-channel data capture.
          • Script functionality allows users to develop customized t-script applications written in the Kvaser t programming language.
          • Plug and play installation, and a comprehensive user guide to help make t script development quick and easy.
          • Log data to an expandable SD card slot.

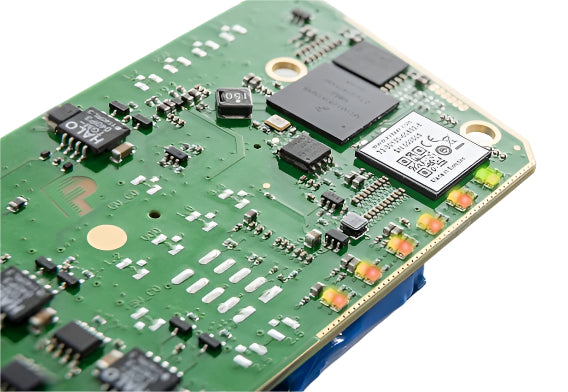

          • LED lights alert user to device status, including signalling a full SD card or card error.
          • Power derived from the USB connection, CAN or built-in power supply.
          • Supports CAN FD
          • Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.


                  Galvanic Isolation Yes
                  Bitrate 40-1000 kbit/s
                  Silent mode Yes
                  Error frame generation Yes
                  Error counters reading Yes
                  Channels 5
                  Timestamp resolution 1
                  Buffers Auto RX Buffers, Auto TX Buffers, On Board Buffer
                  Maximum message rate, send 20000 mps
                  Maximum message rate, receive 20000 mps
                  Sound No
                  Galvanic Isolation Yes
                  Dimensions (LxH) 120x13 mm
