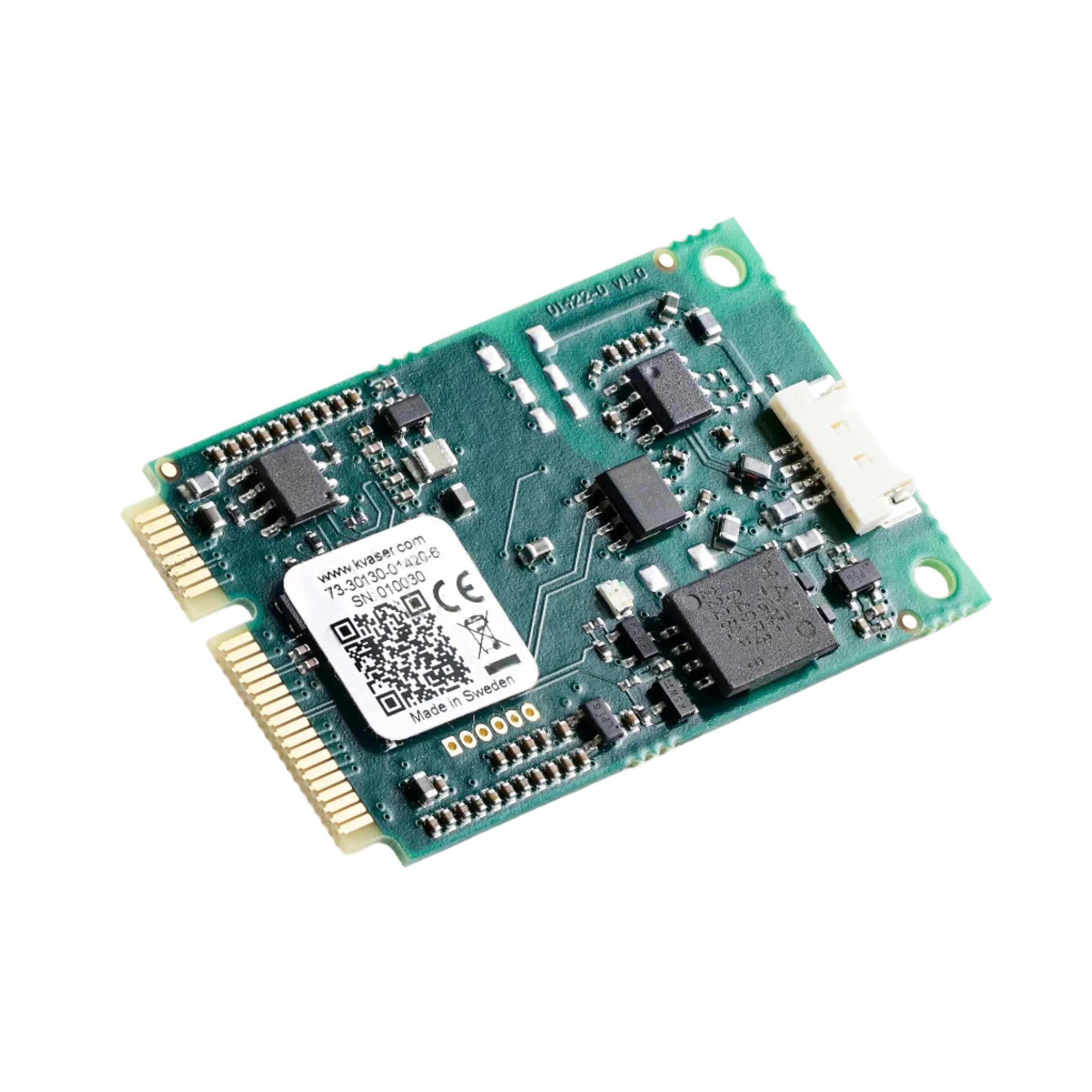

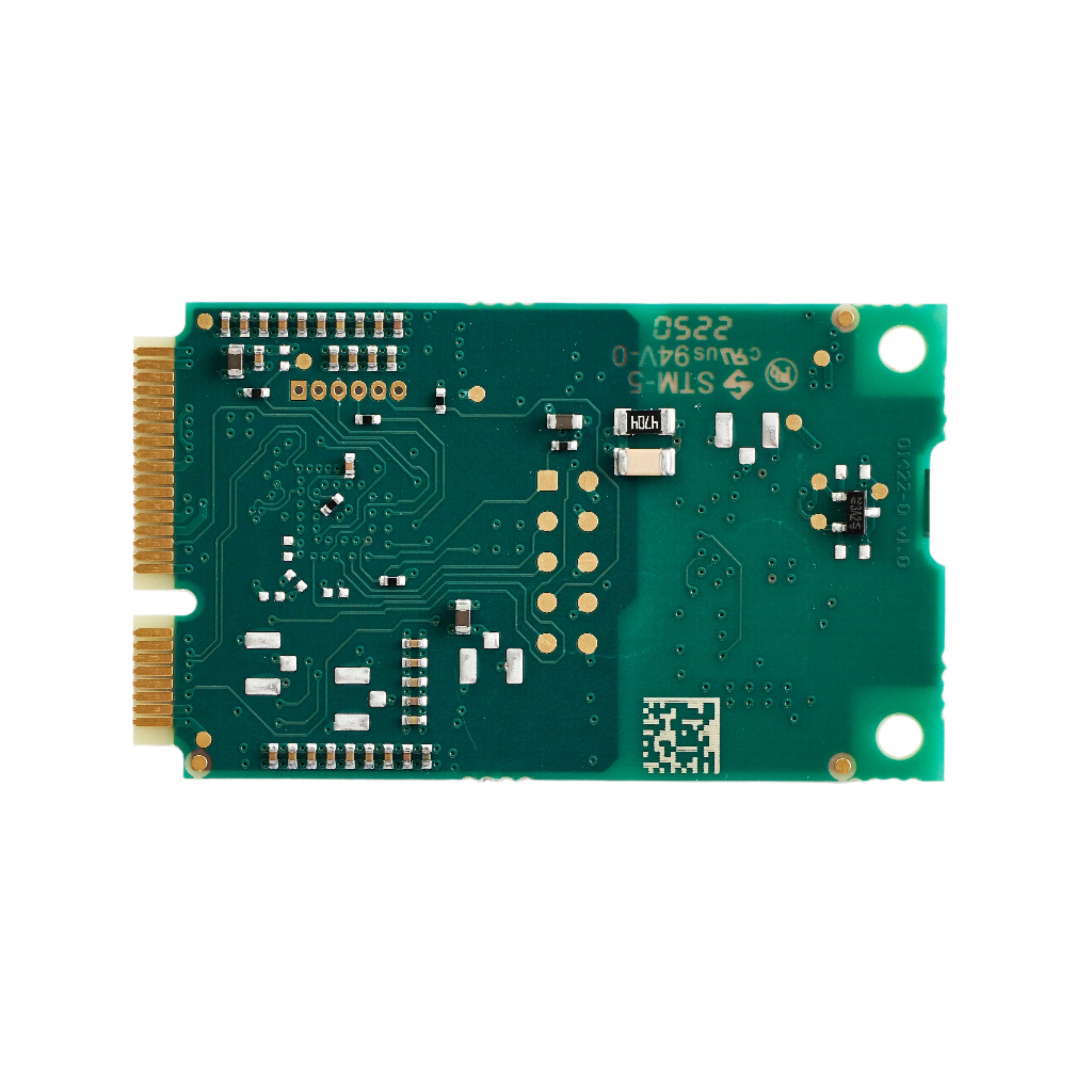

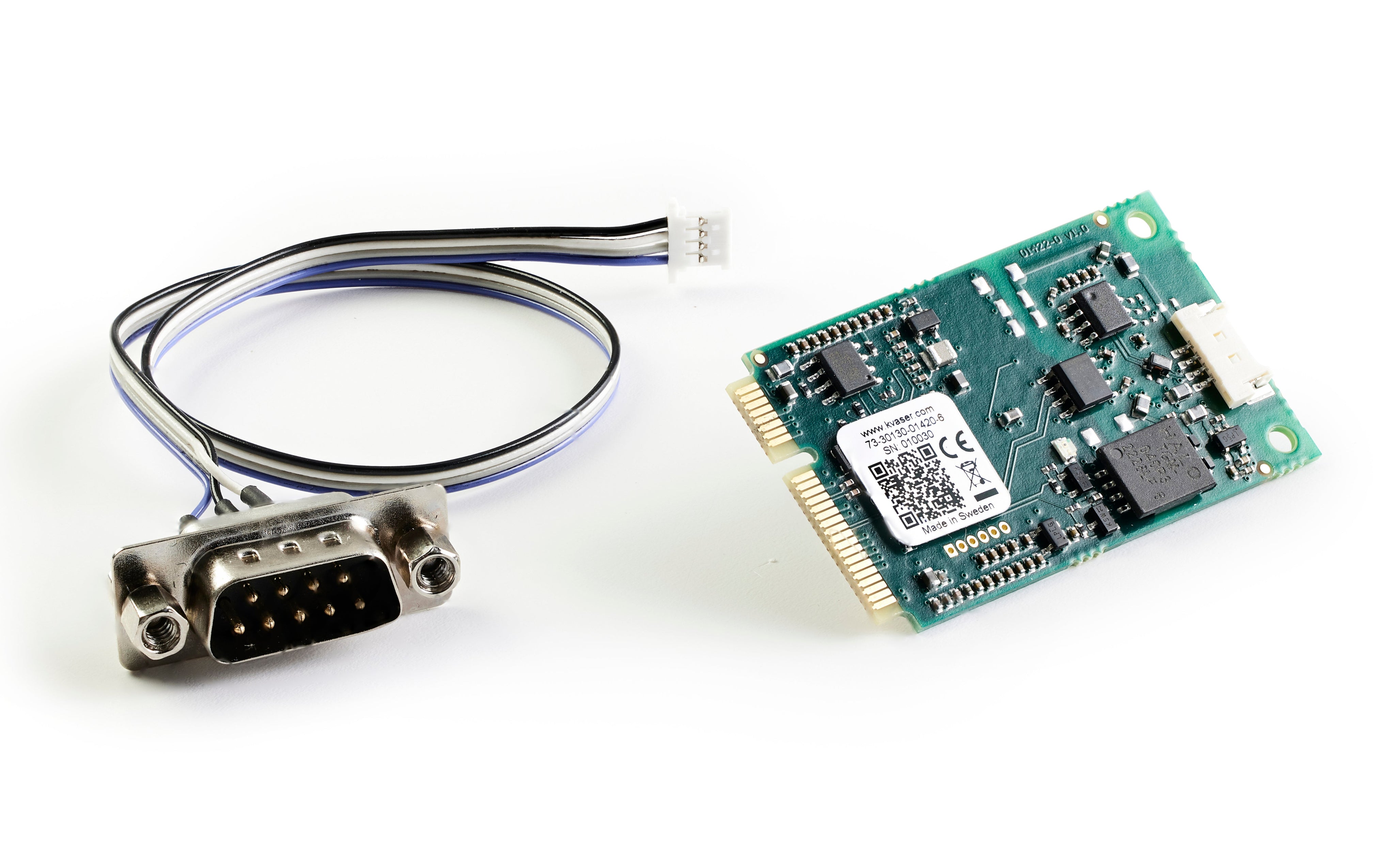

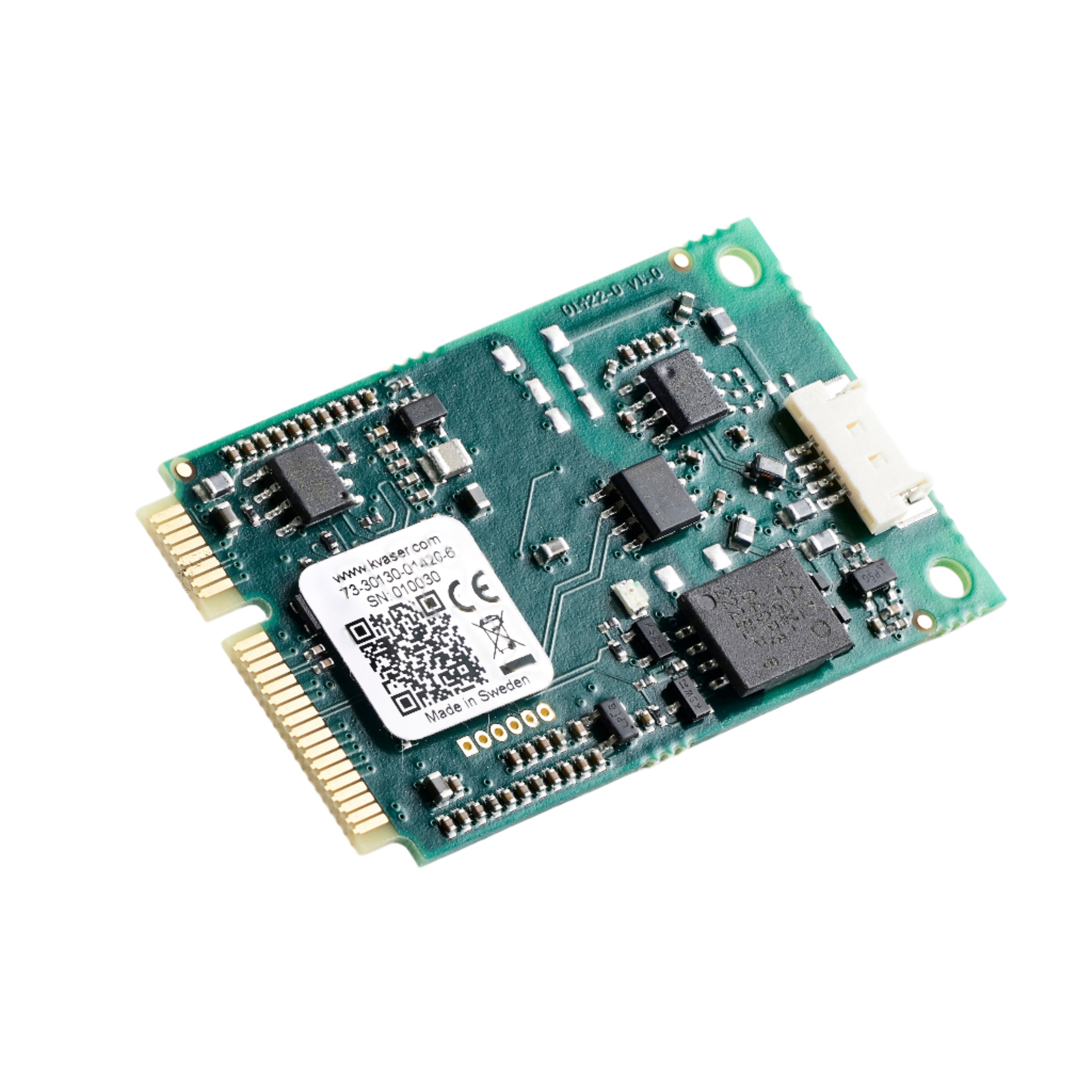

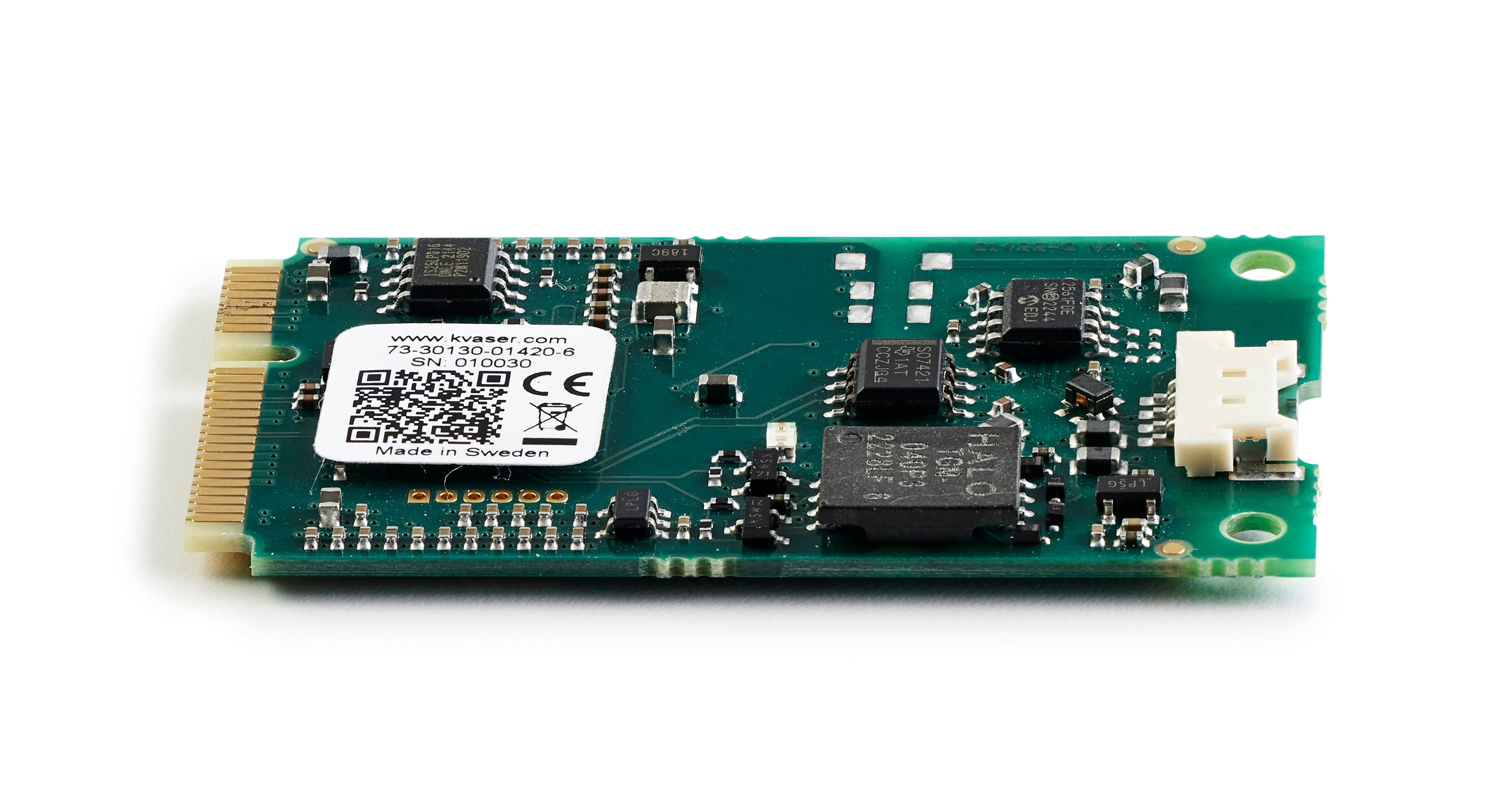

Kvaser Mini PCI Express 1xCAN v3 is a small, yet advanced, real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. The Kvaser Mini PCI Express 1xCAN v3 is compatible with applications that use Kvaser‘s CANlib.
- Mini PCI Express CAN interface.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
- 2-Year Warranty. See our General Conditions and Policies for details.
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Galvanic Isolation | Yes |
| Bitrate | 20-1000 kbit/s |
| Silent mode | Yes |
| Error frame generation | Yes |
| CAN FD bitrate |
up to 8 Mbit/s |
| Weight | 5 grams |
| Timestamp resolution | 1 μs |
| On board buffer | N/A |
| Maximum message rate, send | 20000 |
| Maximum message rate, receive | 20000 |
| Sound | No |
| Clock synchronization | N/A |
| Temperature range | -40°C to +85°C |
| Dimensions (WxLxH) | 30x51x5mm |
| Kvaser DIADEM Driver |
| Kvaser Drivers for Windows |
| Kvaser CANKing |
| A free of charge general-purpose CAN bus monitor. Works with all CAN interfaces from Kvaser as well as the virtual CAN bus. |
| Kvaser CANlib SDK |
| Kvaser LabView VI Library for CAN |
| Kvaser Linux Driver and SDK |
