Kvaser OBD II Extension Cable 2.5 Meter

SKU #: KV-00347-7

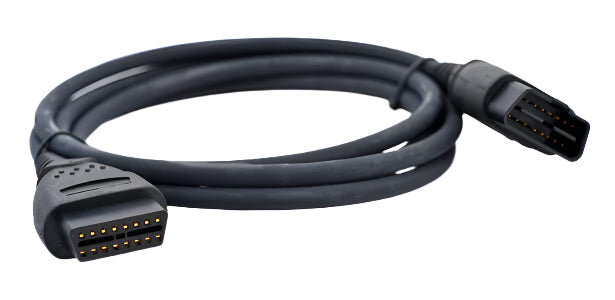

A Kvaser OBD II Extension Cable is an extension cable with a male to female OBD II connector. The cable is made of durable thermoplastic rubber. All pins are connected.

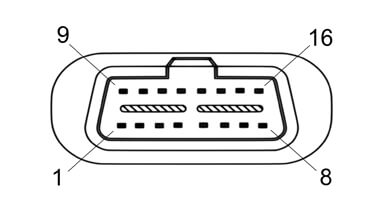

  • Molded OBD II (SAE J1962) male connector, for Type A (12 Volt) as well as Type B (24 Volt).
  • Molded OBD II (SAE J1962) female connector, for Type A (12 Volt) as well as Type B (24 Volt).
  • Made of durable thermoplastic rubber
  • Gold plated pins on OBDII connectors for extra reliable contact.
  • Termination is built in with a 120 Ohm terminating resistor
  • Available in four different cable lengths
  • RoHS compliant.
  • This cable can save wear and tear on your CAN interface's OBD2 connector.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation No
Certificates CE, RoHS
Silent mode No
Error Frame Generation No
Error Counters Reading No
Channels 1
Temp Range -30 °C to +85 °C
Length 2500 mm
Weight 400 grams
Material Durable thermoplastic rubber
OS Win XP, Linux, Win 7, Win Vista, Win 10, Win 8
Datasheet
Kvaser OBD II Extension Cable 2.5 Meter Datasheet
Kvaser OBD II Extension Cable Schematics
Detailed schematic for the Kvaser OBD II extension cable.
Version V1.0.1
