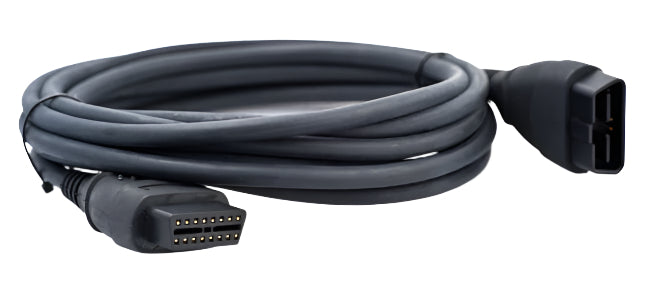

A Kvaser OBD II Extension Cable is an extension cable with a male to female OBD II connector. The cable is made of durable thermoplastic rubber. All pins are connected.

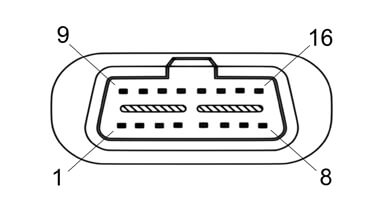

- Molded OBD II (SAE J1962) male connector, for Type A (12 Volt) as well as Type B (24 Volt).
- Molded OBD II (SAE J1962) female connector, for Type A (12 Volt) as well as Type B (24 Volt).
- Made of durable thermoplastic rubber
- Gold plated pins on OBDII connectors for extra reliable contact.
- Termination is built in with a 120 Ohm terminating resistor
- Available in four different cable lengths
- RoHS compliant.
- This cable can save wear and tear on your CAN interface's OBD2 connector.
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Galvanic Isolation | No |
| Certificates | CE, RoHS |
| Silent mode | No |
| Error Frame Generation | No |
| Error Counters Reading | No |
| Channels | 1 |
| Temp Range | -30 °C to +85 °C |
| Length | 5000 mm |
| Weight | 600 grams |
| Material | Durable thermoplastic rubber |
| OS | Win XP, Linux, Win 7, Win Vista, Win 10, Win 8 |
| Datasheet |
| Kvaser OBD II Extension Cable 5 Meter Datasheet |
| Kvaser OBD II Extension Cable Schematics |
| Detailed schematic for the Kvaser OBD II extension cable. Version V1.0.1 |
