- Fully compliant to the PCIe bus specification 1.2, Type F2 form factor (Full-Mini with bottom-side keep outs).
- High-speed CAN connection (compliant with ISO 11898-2), supporting a bit rate from 50 to 1000 kbit/s for Classical CAN and up to 8Mbit/s for CAN FD.
- High transmission rate of up to 20000 messages/s.
- Time stamp accuracy of 1 µs.
- Galvanic isolation.
- Suitable for industrial environments.
- Low profile mini PCI Express-compliant 4-pin Molex connector provides CAN channel access.
- Includes Molex to DSUB9 cable adapter.
- Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
- Operates over the industrial temperature range of -40 to +85°C.
- Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS
- board. Windows DLL library and examples included.
- Supports Windows Vista or later.
- Linux drivers and a dedicated SDK are available as a separate download.
- Support for SocketCAN, see elinux.org for details.
- Extended operating temperature range from -40 to 85 °C.
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Galvanic Isolation | No |
| Material | Durable Thermoplastic rubber |
| Silent mode | No |
| Error frame generation | No |
| Temp Range | -30 °C to +85 °C |
| Length | 2500 mm (98.4in.) |
| Weight | 400 grams |
| Datasheet |

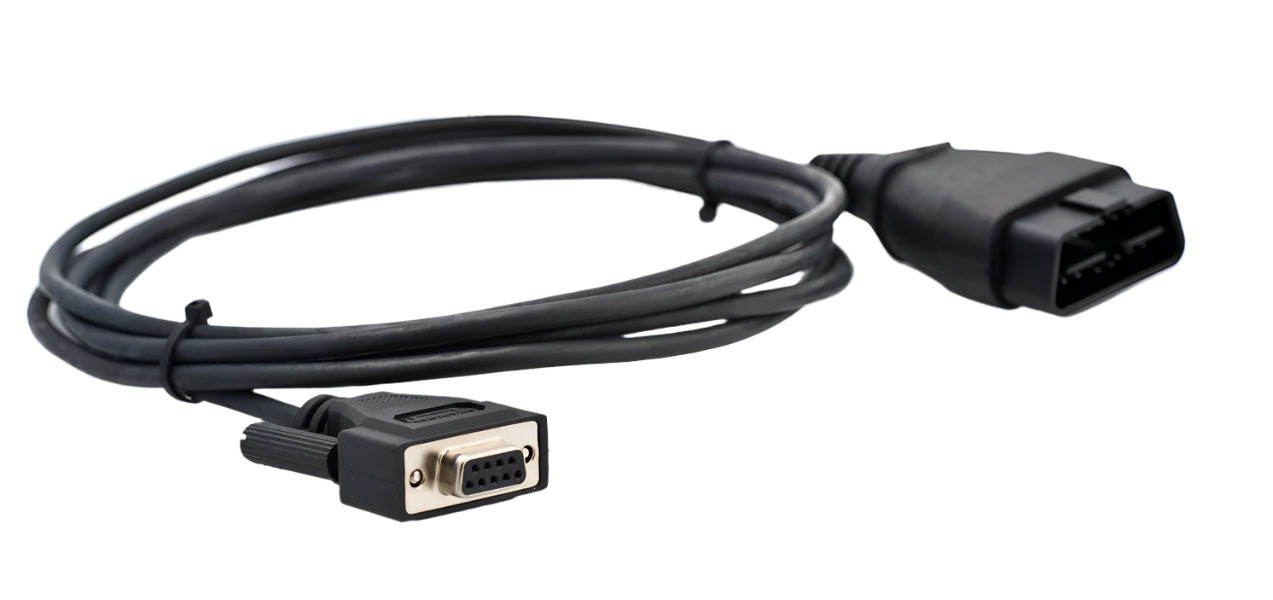

| Kvaser OBD II Dsub9 Adapter Cable 2.5 Meter Datasheet |
