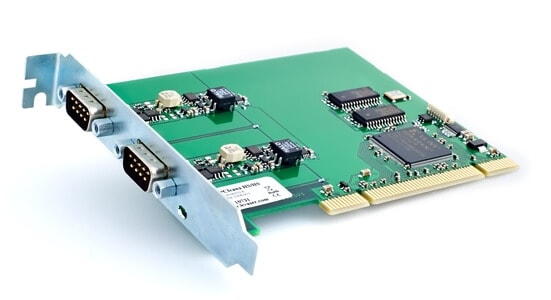

Kvaser PCIcanx HS/HSKV-00331-6
by Kvaser AB
Product is no longer available.
Kvaser PCIcanx product family is a family of CAN/PCI interface boards and comprises three members: Kvaser PCIcanx 4xHS, PCIcanx HS/HS and PCIcanx HS. The Kvaser PCIcanx boards fits in both PCI-X and PCI bus systems. Galvanically isolated CAN bus drivers to protect the hardware.
- Compliant with PCI 2.3
- The board fits in both 3.3V PCI-X and 3.3V and 5V PCI busses
- Completely compatible with our PCIcan boards
- Dimensions 140 x 100 mm (approx. 5.5 x 4 in.)
- I/O mapped
- Quick and easy plug-and-play installation
- SJA1000 CAN Controllers from Philips, with 64-byte receive FIFO
- Supports CAN 2.0 A and 2.0 B (active)
- High-speed ISO 11898 compliant driver circuits
- Interfaces the CAN bus with DSUB CAN connectors
- Pin assignment according to CiA-DS102
- 16 MHz CAN oscillator frequency
- Optoisolated driver circuits with fast optocouplers
- Wide temperature range, -40°C - +85°C
|The information herein is subject to change without notice.|
|Error frame generation||No|
|Error frame detection||Yes|
|On board buffer||No|
|Maximum message rate, send||18000|
|Maximum message rate, receive||14000|
|Dimensions (WxLxH)||120x95x20 mm (4.7x3.7x0.8in.)|
