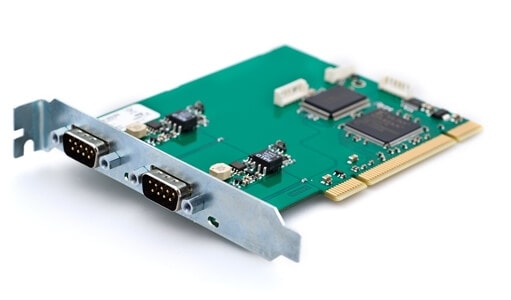

Kvaser PCIcanx II HS/HS

SKU KV-00343-9

Kvaser PCIcanx II is a high-performance CAN/PCI interface board and comprises two members: PCIcanx II HS/HS and PCIcanx II HS. Kvaser PCIcanx II HS is delivered with a free of charge low profile bracket. The Kvaser PCIcanx II boards fits in both PCI-X and PCI bus systems. Galvanically isolated CAN bus drivers to protect the hardware.

  • Compliant with PCI 2.3
  • The board fits in both 3.3V PCI-X and 3.3V and 5V PCI busses
  • Completely compatible with our PCIcan boards
  • Dimensions 140 x 100 mm (approx. 5.5 x 4 in.)
  • I/O mapped
  • Quick and easy plug-and-play installation
  • SJA1000 CAN Controllers from Philips, with 64-byte receive FIFO
  • Supports CAN 2.0 A and 2.0 B (active)
  • High-speed ISO 11898 compliant driver circuits
  • Interfaces the CAN bus with DSUB CAN connectors
  • Pin assignment according to CiA-DS102
  • 16 MHz CAN oscillator frequency
  • Optoisolated driver circuits with fast optocouplers
  • Wide temperature range, -40°C - +85°C
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 0-1000 kbit/s
Silent mode Yes
Error frame generation Yes
Error frame detection Yes
Weight 100 grams
On board buffer Yes
Maximum message rate, send 8000
Maximum message rate, receive 14000
Sound No
Clock synchronization N/A
Dimensions (WxLxH) 120x95x20 mm (4.7x3.7x0.8in.)
Datasheet
Kvaser PCIcanx II HS/HS Datasheet
Kvaser PCIcanx Users Guide
Kvaser PCIcanx Users Guide
Version V5.2.0
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux
Version V1.7.153
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.17.748
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.35.477
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux.
Version V1.7.153
Kvaser DIADEM Driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version V4.1.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
Version V5.35.477
Kvaser CANKing
A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
Version V6.18.106
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.35.477
Remove old drivers
Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
Version 3.9c
Cleanup
Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer.
Version 3.9c
