- PCI Express LIN interface
- Supports LIN, up to 20 kbit/s
- Four fully featured, time-synchronized, individually galvanically isolated LIN channels utilizing Kvaser LIN-IP implemented in FPGA
- Quick and easy plug-and-play installation
- Low profile board, includes low- and high-profile brackets
- 100% compatible with applications written for other Kvaser LIN hardware with Kvaser LINlib
- Supports simultaneous usage of multiple Kvaser interfaces
- Kvaser software-based TimeSync – time synchronization with a host-referenced clock source
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.

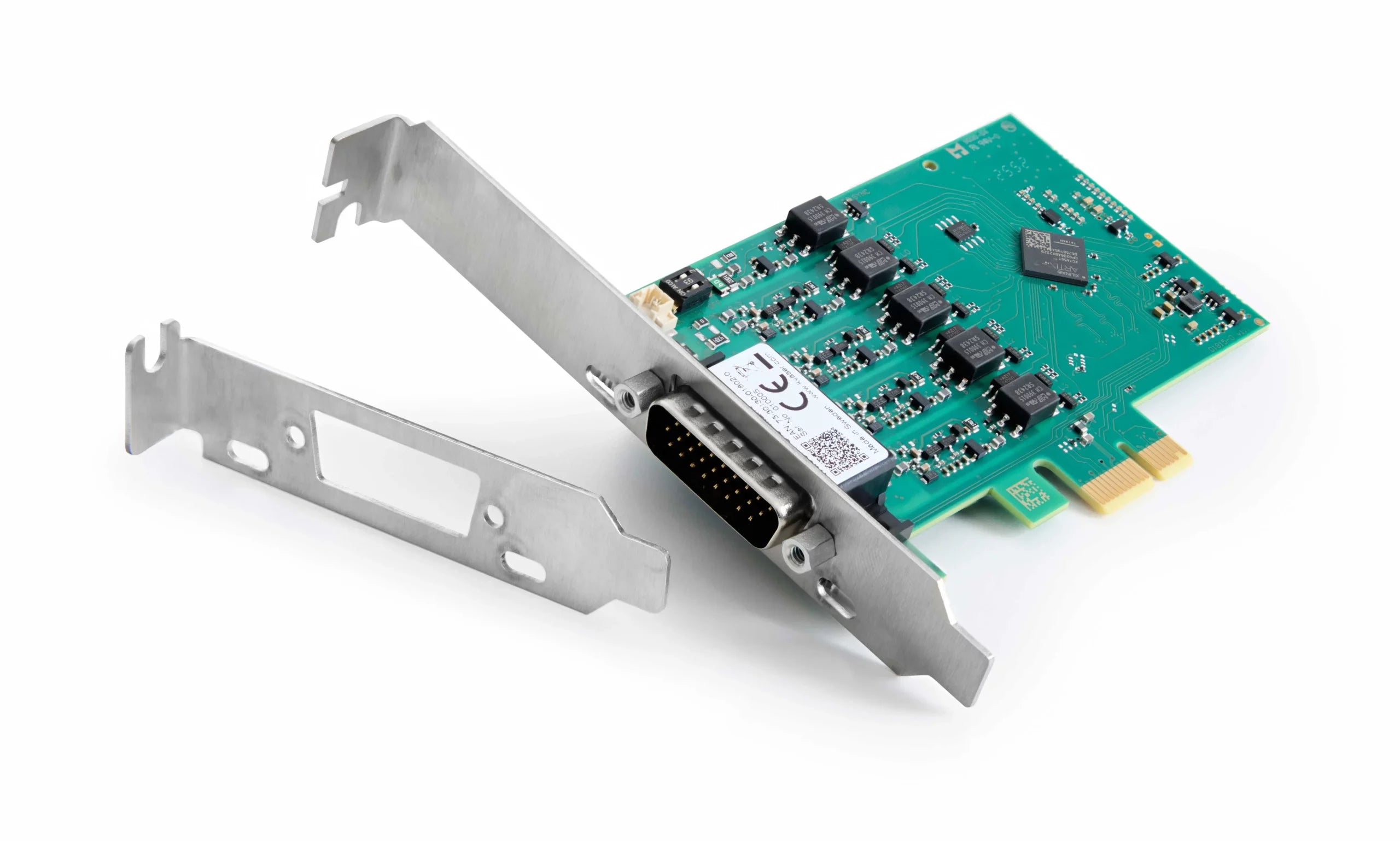

- Low-profile PCI Express card
- A longer and shorter bracket are included to fit different computer cases
 Warranty
 2-Year Warranty. See our General Conditions and Policies for details.
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Galvanic Isolation | Yes |
| Certificates | CE, FCC |
| LIN Bitrate | 1-20 kbit/s |
| Silent mode | No |
| Error Frame Generation | No |
| Error Counters Detection | No |
| Weight | 56 grams |
| Timestamp resolution (µs) | 1 μs |
| Channels | 4 |
| Maximum message rate, send | XXX |
| Maximum message rate, receive | XXX |
| Sound | No |

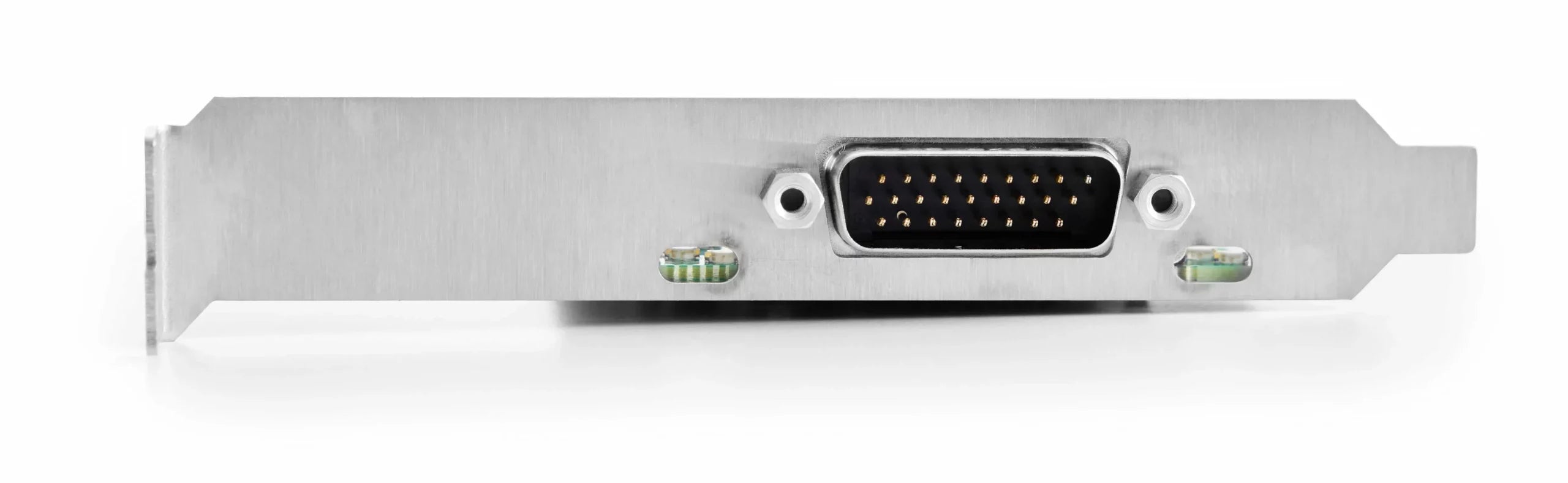

| Connectors | 26-pin HD D-SUB |
| Interfaces | PCI Express |
| Length | 100 mm |
| Width | 68 mm |
| OS | Linux, Win 7, Win 8, Win 10 |
