Kvaser PCIEcan 2xHS v2KV-00861-8
Product is no longer available.
This product is EOL and not intended for new designs.

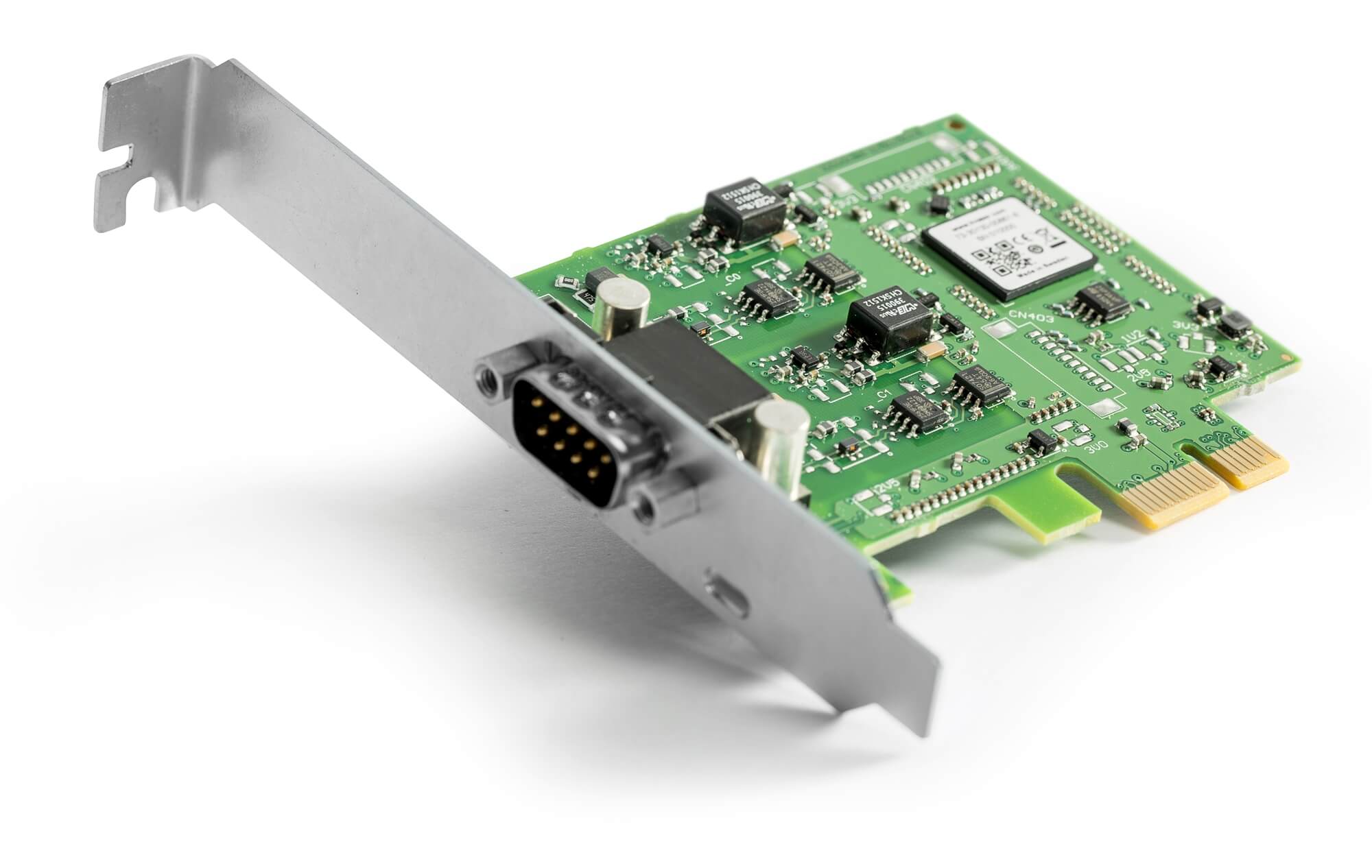

The Kvaser PCIEcan 2*HS V2 is a highly integrated, high-speed controller area network (CAN) insert card that adds two single high-speed (ISO 11898-2) CAN channels to any standard computer board with PCI Express slot. At 86 x 69 mm, this has a smaller footprint and lower profile than the previous model, the PCIEcan HS/HS (KV-00405-4).
The Kvaser PCIEcan 2*HS V2 is CAN FD compliant and offers silent mode, error frame detection/generation as well as an on-board buffer making it a great fit for many embedded data acquisition systems.
- Standard (PCIe-x1) PCI Express interface
- Quick and easy plug-and-play installation
- Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s
- Supports CAN 2.0 A and 2.0 B (active)
- Supports CAN FD up to 8Mbit/s (with proper physical layer implementation)
- Low profile card allows ultra-compact systems
- Includes low and high profile brackets
- Implements Kvaser’s CAN IP in an FPGA, resulting in high max message rate
- Yellow LED indicates when a CAN message was received or sent
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib
- Supports silent mode for analysis tools – listens to the bus without interfering
- Detection and generation of error frames and remote frames
- Designed for standard and industrial computers
- Galvanically isolated CAN bus drivers
- Extended operating temperature range from -40 to 85°C
- 2-Year Warranty. See our General Conditions and Policies for details
- Free Technical Support on all products available by contacting email@example.com
- J2534 Application Programming Interface available
- RP1210A Application Programming Interface available
|The information herein is subject to change without notice.
|Error frame generation
|Error frame detection
|On board buffer
|Maximum message rate, send
|Maximum message rate, receive
|Operating Temp Range
|86 mm * 69 mm
