Kvaser T-Cannector V2

KV-00776-5
Save 10%
$72.00
$65.00

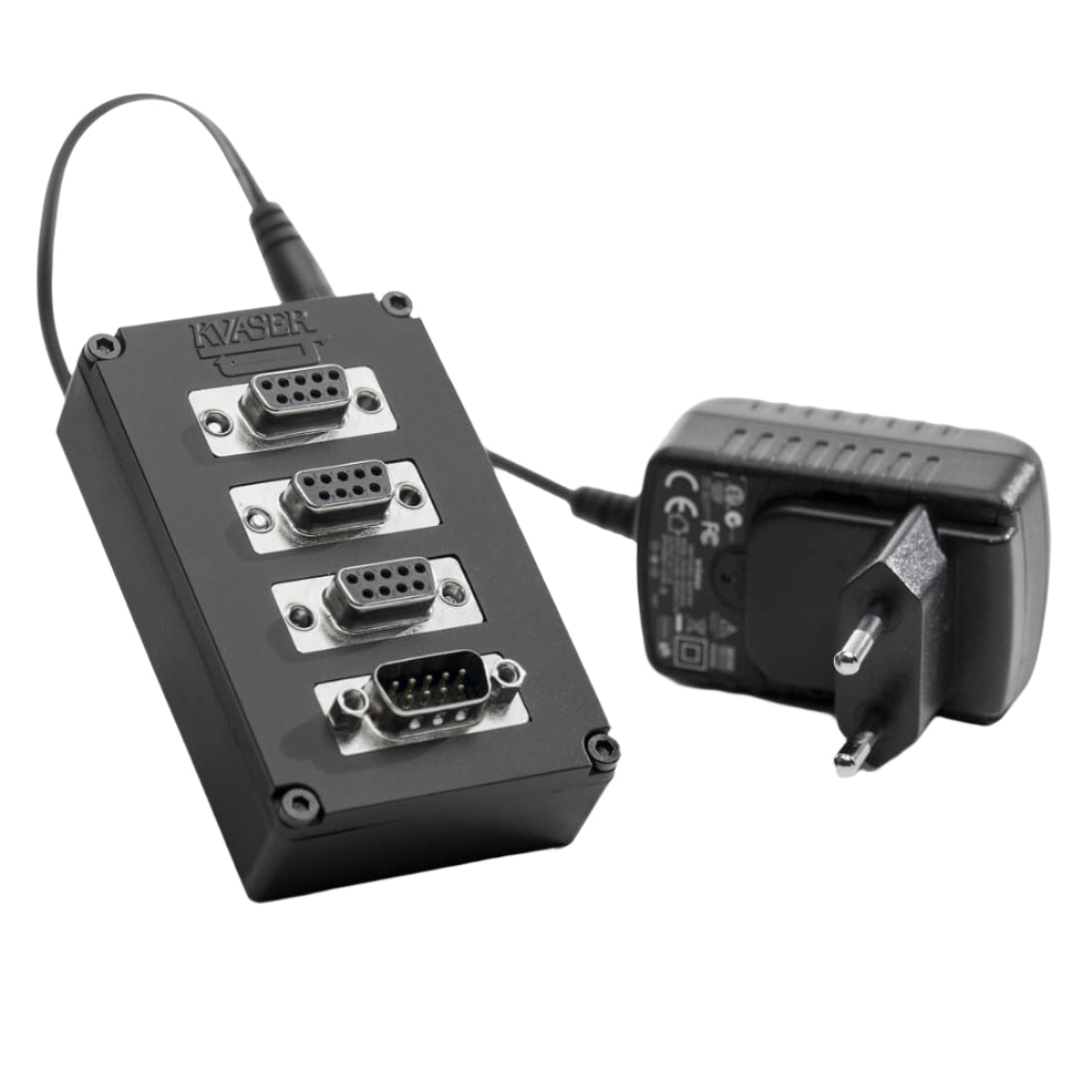

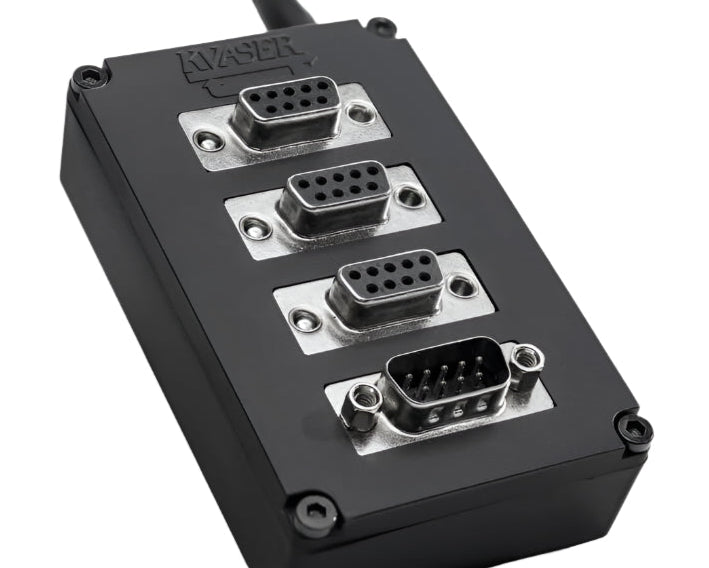

Kvaser T-Cannector V2 is a CAN bus hub with three female and one male D-SUB9 connectors. Offering an adjustable CAN termination resistor (120/60/0 Ohm) it provides an affordable and safe way of terminating the CAN circuit when using Kvaser interfaces on a development board, as well as powering interface devices without internal power, such as Kvaser’s Blackbird and Memorator series.

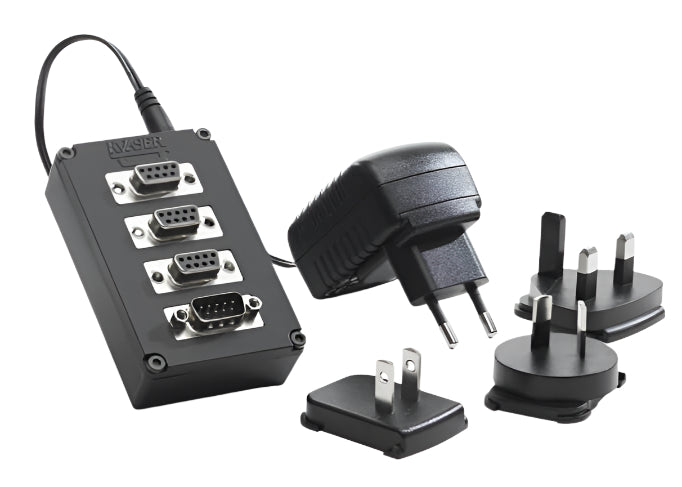

Kvaser T-cannector v2 is a CAN bus hub with three female and one male D-SUB9 connectors. Used typically in application development scenarios, this offers an adjustable CAN termination resistor (120/60/0 Ohm) that provides an affordable and safe way of terminating the CAN circuit, as well as powering devices that take their power from the USB connection or the CAN network to which they are attached, such as Kvaser’s Blackbird and Memorator series. This device comes with a 12V power supply and EU, USA, UK and Chinese plugs.

This is a new version of an existing product that responds to user requests for more termination options. Notably our previous product came in two versions: with fixed termination of 120 Ohms and without. The Kvaser T-cannector v2 is extremely price-competitive, providing an external 12V 1A power source for Kvaser CAN interfaces and a safe, trustworthy means of circuit termination that protects customer’s interface investment and will prevent short circuits from damaging their development boards.

  • Acts as a CAN bus hub with 3 female and 1 male D-SUB9 connectors
  • Each DSUB9 has screws to secure the connection to the Kvaser CAN interface
  • Adjustable termination via easy-to-use switch
  • 12V 1A power supply

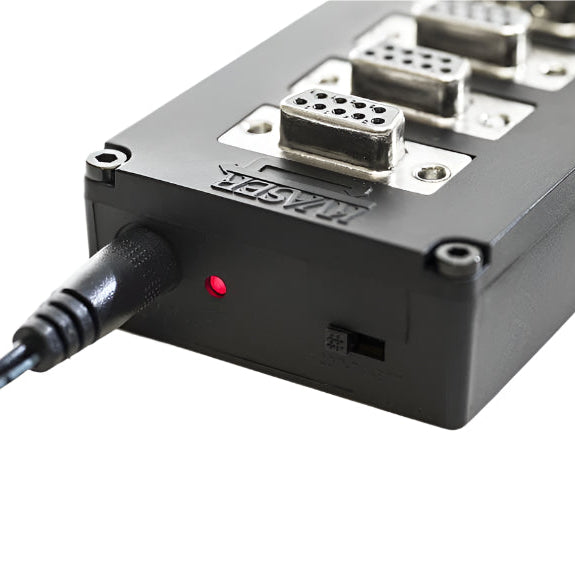

  • LED to indicate power on
  • Voltage range of 12V-24V DC
Property Value
The information herein is subject to change without notice.
Temp Range -30 - 85 °C
Weight 400 g
Length 90mm
Height 29 mm
Channels 4
Connectors DSUB-9
Galvanic Isolation No
Error frame generation No
Error Counters Reading No
Silent Mode No
Sound No
Interface Cable
Material Durable thermoplastic
