Kvaser USBcan Pro 2xHS v2

SKU KV-00752-9

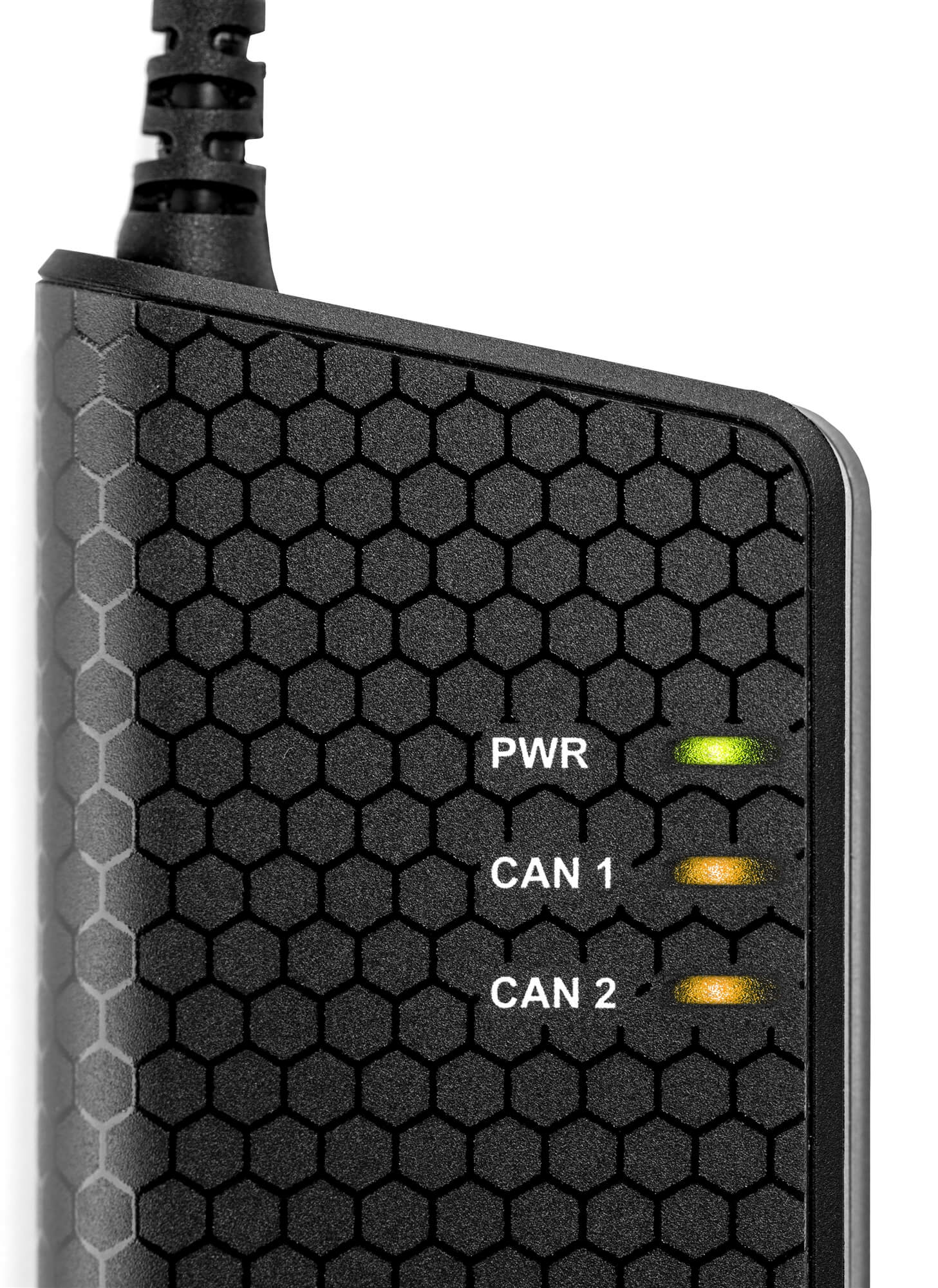

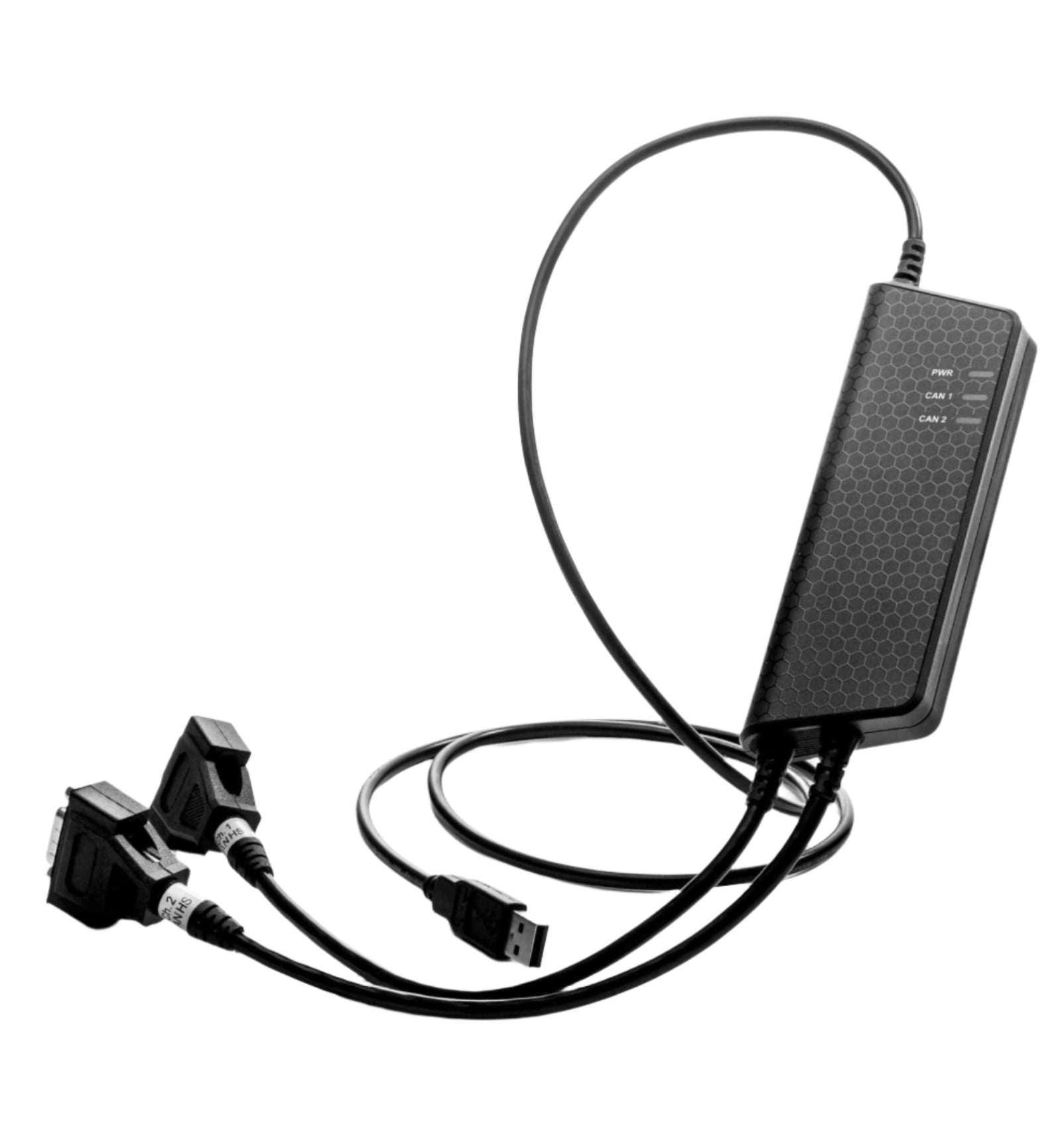

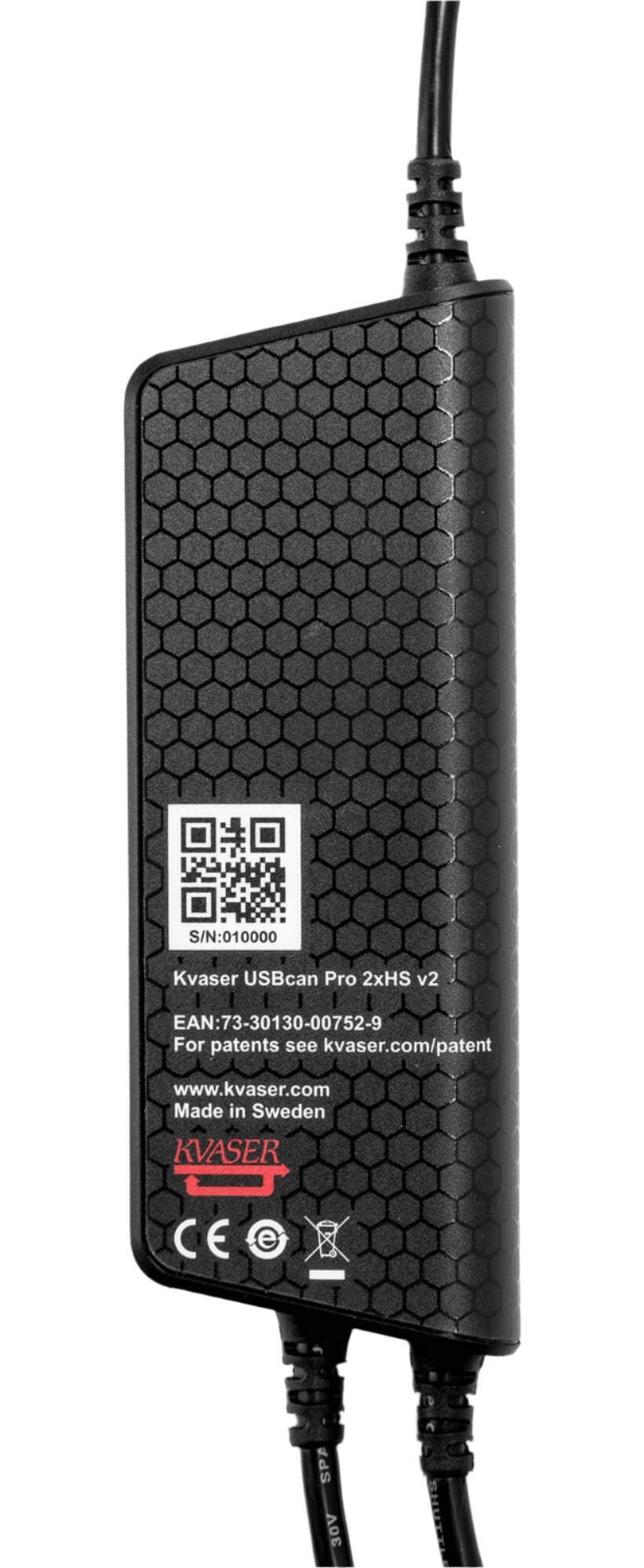

The new USBcan Pro 2xHS v2 made by Kvaser AB is a USB to dual-channel CAN or CAN FD interface with scripting capability. With a standard USB connector and two ISO 11898-2 compliant high-speed CAN channels in two separate 9-pin D-SUB CAN connectors, it is high-performance, yet compact. This sleek PC-CAN Adapter can be used as a simple dual-channel interface to connect two high speed CAN buses to a PC or mobile computer, or can be programmed to do more. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting out programming the device.

  • USB CAN interface with Kvaser t programmability.
  • Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
  • Power is taken from the USB bus.
  • Galvanic isolation.
  • Quick and easy plug-and-play installation.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Kvaser MagiSync provides automatic time synchronization between several PC-to- bus interfaces connected to the same PC.
  • Programming functionality to support interface mode e.g. optimize protocol handling, pre-filter CAN messages directly on the interface or simulate missing hardware.
  • Simultaneous operation of multiple devices.
  • Support for SocketCAN, see elinux.org for details.

Warranty

2-Year Warranty. See our General Conditions and Policies for details.

Support

Free Technical Support on all products available by contacting support@kvaser.com.

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Certificates CE, RoHS
Bitrate 50-8000 kbit/s
Channels 2
Current Consumption Max 500mA
Connectors DSUB 9
Silent mode Yes
Error frame generation Yes
Error Counters Reading Yes
Interfaces USB
Weight 170 grams
Temp Range -40 °C to +85 °C
Timestamp resolution (µs) 1 µs
Maximum message rate, send 20000 mps
Maximum message rate, receive 20000 mps
Sound No
Dimensions (LxH) 170x20 mm
Material PA66
OS Win XP, Linux, Win 7, Win Vista, Win 10, Win 8
Datasheet
Kvaser USBcan Pro 2xHS v2 Datasheet
Kvaser USBcan Pro 2xHS Users Guide
Kvaser USBcan Pro 2xHS User's Guide
Version V3.4.210216
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux.
Version V1.7.153
Kvaser Firmware Update Tool
TFirmware Update tool for most Kvaser devices.
Version V4.24.477
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.17.748
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.35.477
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser DIADEM Driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version V4.1.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
Version V5.35.477
Kvaser CANKing
A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
Version V6.18.106
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.35.477
Remove old drivers
Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
Version 3.9c
Cleanup
Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer.
Version 3.9c
