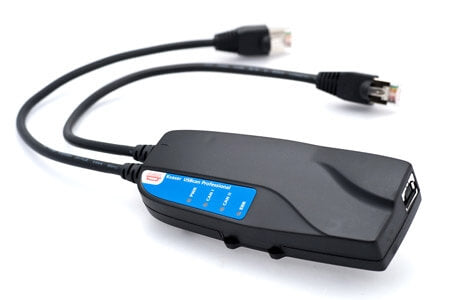

Kvaser USBcan Professional HS/HS RJ45

KV-00413-9
$965.00
The Kvaser USBcan Professional provides two CAN bus interfaces through a single USB connection. The Kvaser USBcan Professional supports Kvaser's MagiSync™ technology to synchronize time stamps across multiple units without extra wires providing flexibility for multi-channel applications. With quick reaction times and high data throughput, the Kvaser USBcan Professional is perfect for rapid ECU re-flashing, advanced bus analyzers, and efficient development work.
  • One device for desktop and laptop
  • Quick and easy plug-and-play installation
  • Automatic and accurate clock synchronization between several Kvaser USBcan Professional interfaces through Kvaser MagiSync™. The technical solution is unique and patented by Kvaser.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Support for Kvaser Linx J1587
  • CAN Messages are time-stamped and synchronized with a precision of 2 microseconds
  • Large on-board RAM buffer for CAN message
  • Handles up to 40,000 messages per second
  • Excellent error handling
  • Supports silent mode for analyzing tools
  • Galvanic isolation of the CAN bus driver stage to protect the hardware
  • Labeled CAN channel for easy identification of the supported physical layer
  • 100% compatible with applications written for all Kvaser hardware with KVASER's CANlib

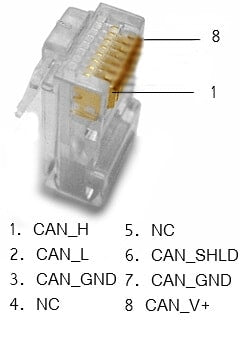

  • Interfaces the CAN bus with RJ45 connectors
  • Designed for USB 2.0, backward compliant with USB 1.1
  • A practically unlimited number of Kvaser USBcan Professional devices can be connected via standard USB hubs for simultaneous use on a single PC
  • Driver support for major operating systems
  • 100% compatible with applications written for Leaf, LAPcan, PCIcan, andPCcan with KVASER's CANlib
  • Two high-speed channels with ISO 11898-2 compliant CAN transceivers, 10 kbit/s up to 1 Mbit/s
  • Plastic housing with dimension W*L*H about 50*90*25 mm (approx 2 x 3,5 x 1 inch)
Galvanic Isolation Yes
Bitrate 5-1000 kbit/s
Silent mode Yes
Error frame generation Yes
Error frame detection Yes
Weight 150 grams
Timestamp resolution 2
On board buffer Yes
Maximum message rate, send 20000
Maximum message rate, receive 20000
Sound No
Clock synchronization MagiSync
Dimensions (WxLxH) 50x90x25 mm (2.0x3.5x1.0in.)
