PCAN-AU5790

IPEH-002040
$195.00

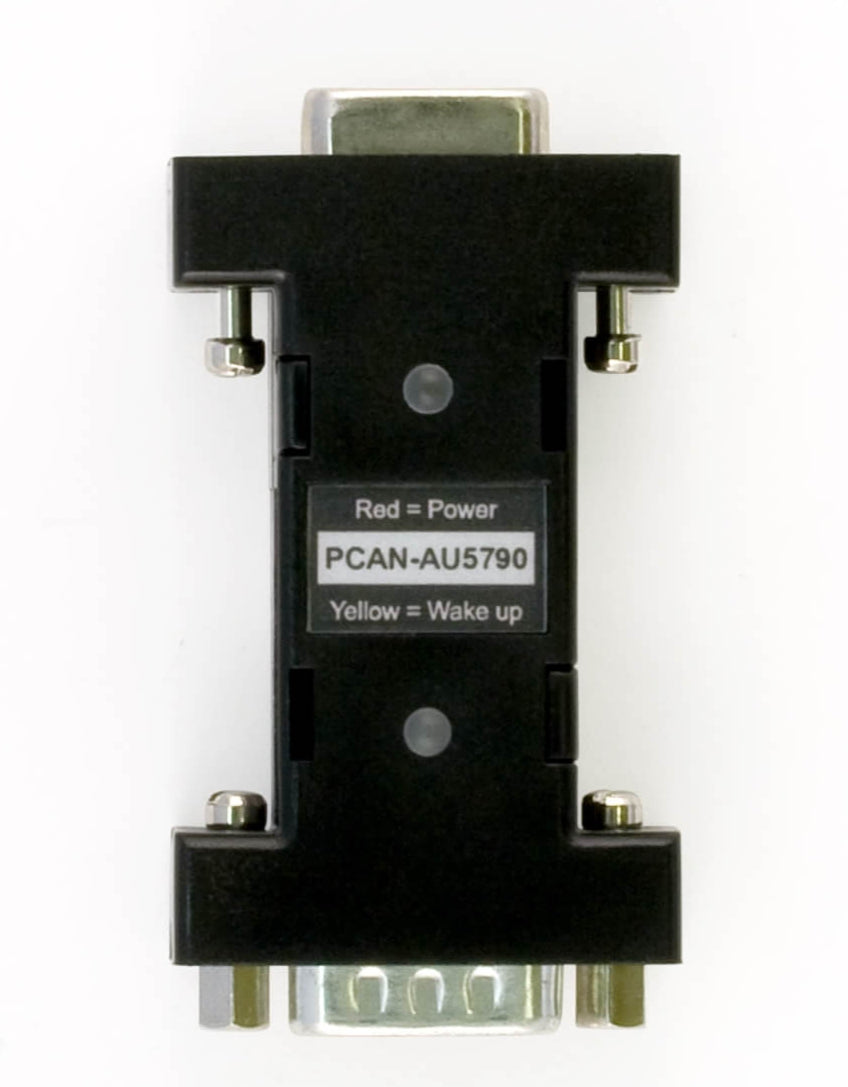

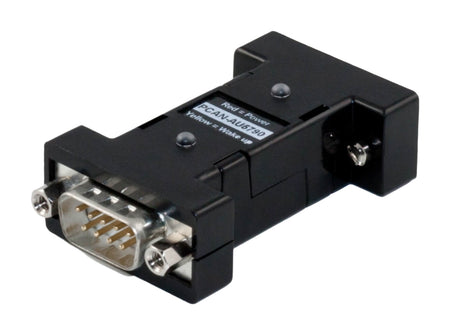

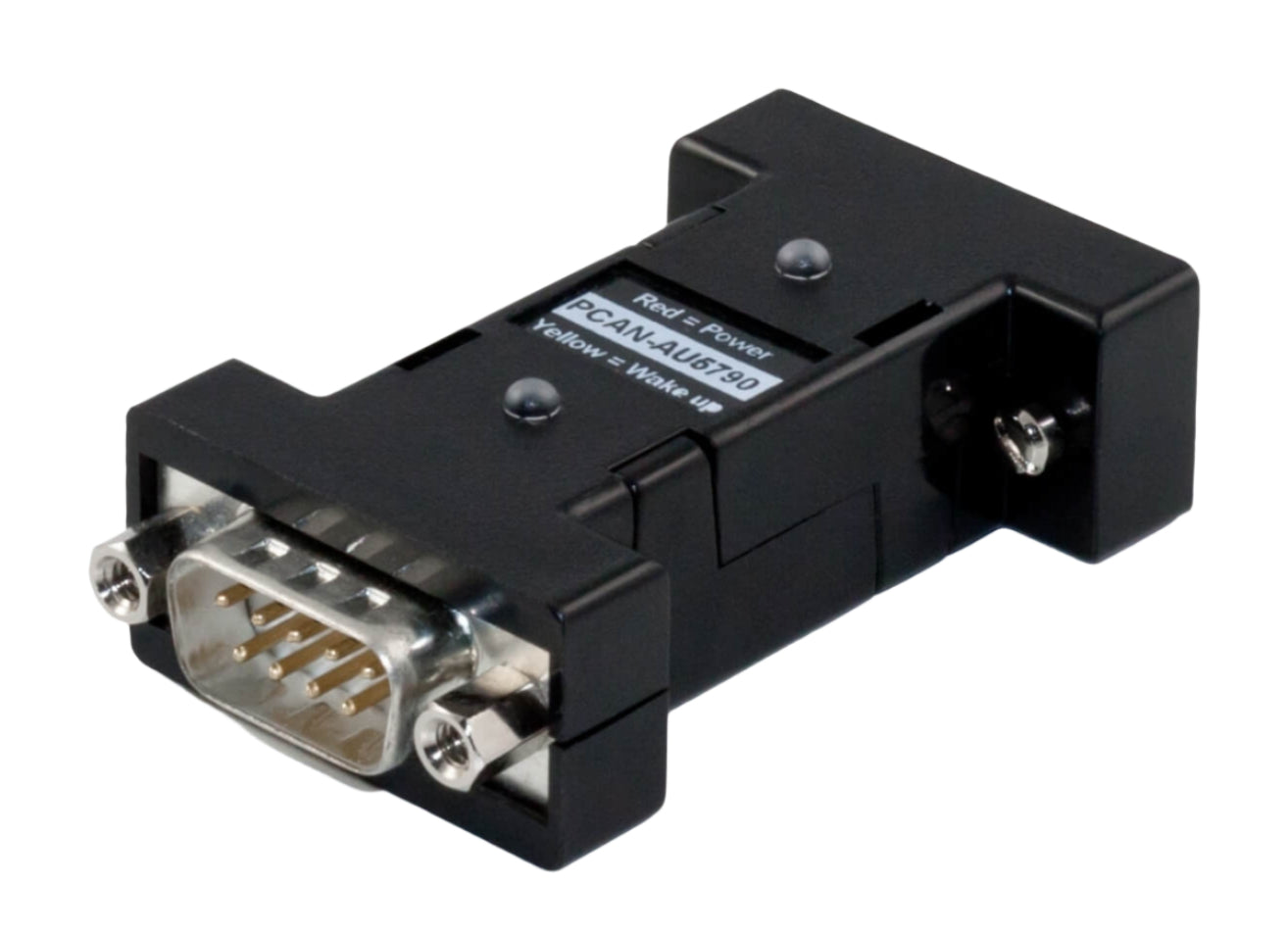

The PCAN-AU5790 bus converter establishes a connection between a High-speed CAN bus (ISO 11898-2) and a Single-wire CAN bus (SAE J2411). One of the most important potential applications of the bus converter is a simple connection between a PEAK CAN interface (e.g. PCAN-USB) and a Single-wire CAN bus.
  • Philips AU5790 Transceiver (others available on request)
  • Adapter features a plastic housing
  • Transfer rates up to 125k Baud
  • Operating modes can be switched for the Single-wire CAN side via a sliding switch.
  • Operating mode LED
Power Supply +5 V DC, at least 150 mA (via HS-CAN port)
+12 V DC additionally (via SW-CAN port), if available current strength of the 5-Volt supply < 150 mA
Power Consumption 20 mA average, 120 mA maximum
High-speed CAN ISO 11898-2
Compliant to CAN specifications 2.0A and 2.0B
Transceiver: Philips PCA82C251

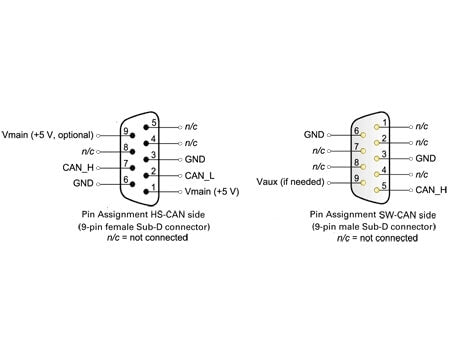

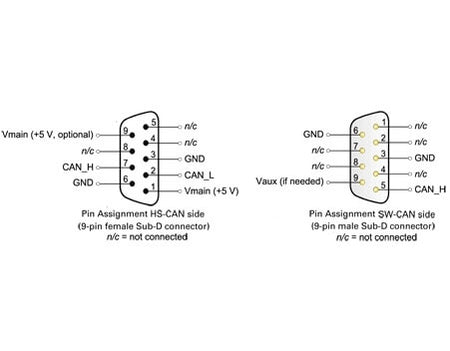

Sub-D socket (pin assignment according to CiA DS 102)
Termination: 120 Ω
Single-wire CAN SAE J2411
Transceiver: Philips AU5790
Sub-D plug
Termination: 5.1 kΩ
Operation modes: Normal, High-speed, Wake-up
Transfer rate max. 83.3 kBit/s
Dimensions 63 x 34 x 19 mm (2 1/2 x 1 5/16 x 3/4 inches)
Weight max. 30 g (2.5 oz.)
Operating temperature 0 – 70 °C (32 – 158 °F)
Storage temperature -40 – +100 °C -40 – +212 °F
Relative humidity 15 – 90 %, not condensing
Wake-up LED (yellow) Pulse width: > 0.5 s
Time delay signal: > 5 μs (at 11-Volt pulse)
Threshold signal: > 8.2 V
