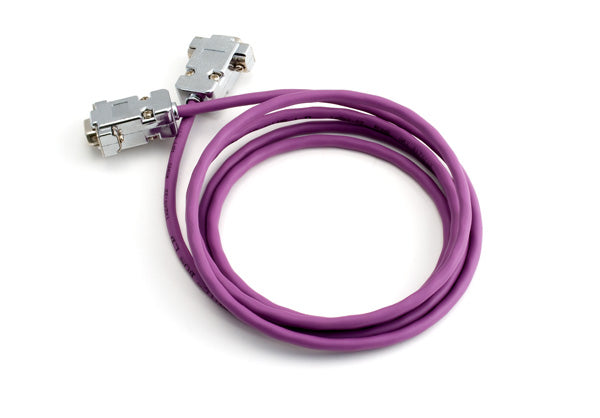

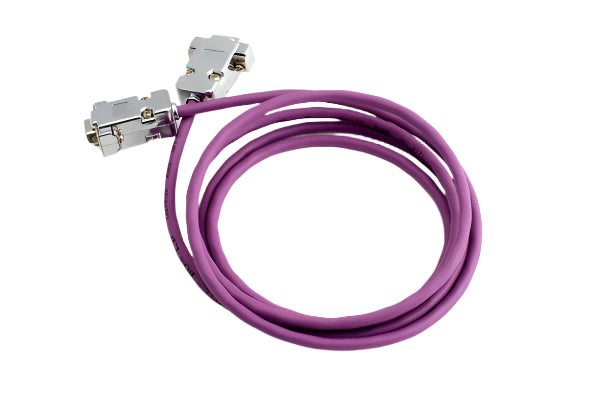

PCAN Cable 2 - w/120 Ohm TERMINATION

SKU #: IPEK-003001
New

Connection Cable for CAN and CAN FD

Cable offers two 120 Ohm CAN bus termination resistors. These cables are needed to set up a CAN bus and are specially designed to be used in a CAN environment. If two high-speed CAN hubs need a simple direct connection between them, the PCAN-Cable 2 with integrated termination can be used.

Technical Specifications:

  • 9-pin D-Sub sockets (in accordance with CiA® 106) at both ends
  • Length 2.0 m
  • Shield connected to GND
  • PCAN-Cable 1 without termination resistors
  • PCAN-Cable 2 with 120-Ohm termination resistors
  • Suitable for the use in CAN FD buses

Scope of Supply

  • PCAN-Cable: Other lengths and special cable makeup on request.
