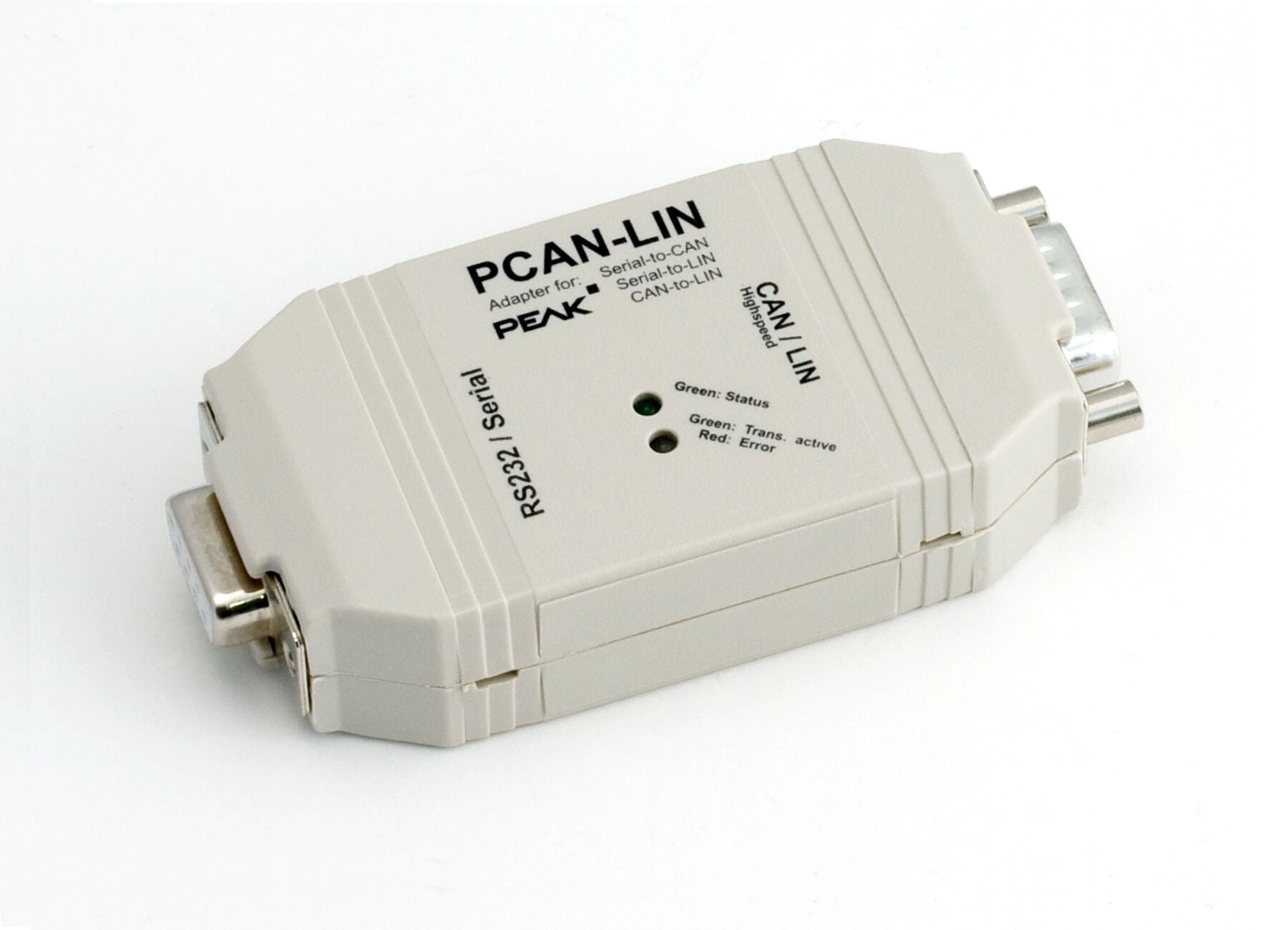

PCAN-LIN Interface (low-speed) IPEH-002028 corner top view
PCAN-LIN Interface (low-speed) IPEH-002028 product shot view

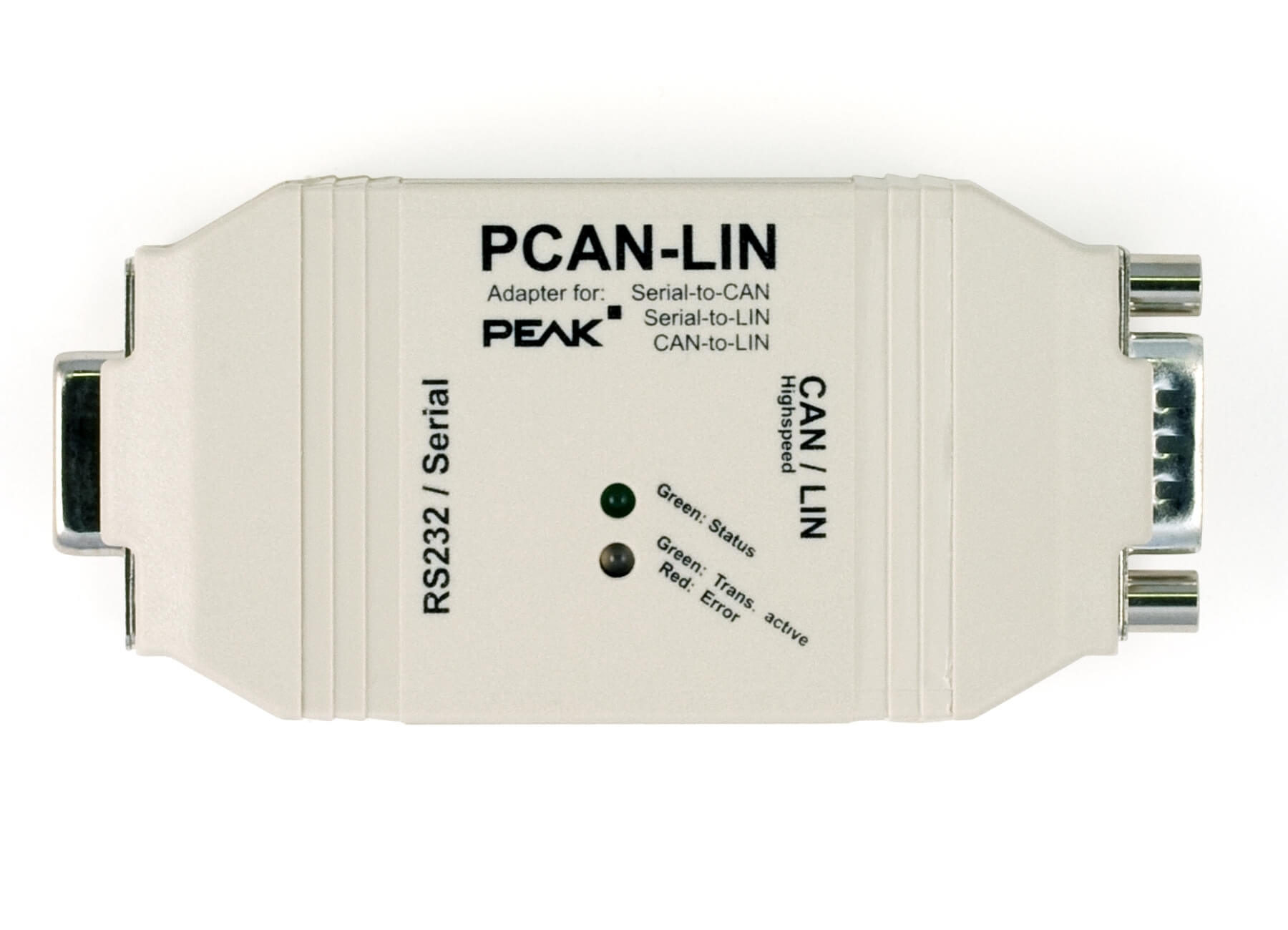

PCAN-LIN Interface (low-speed) IPEH-002028 Top down view

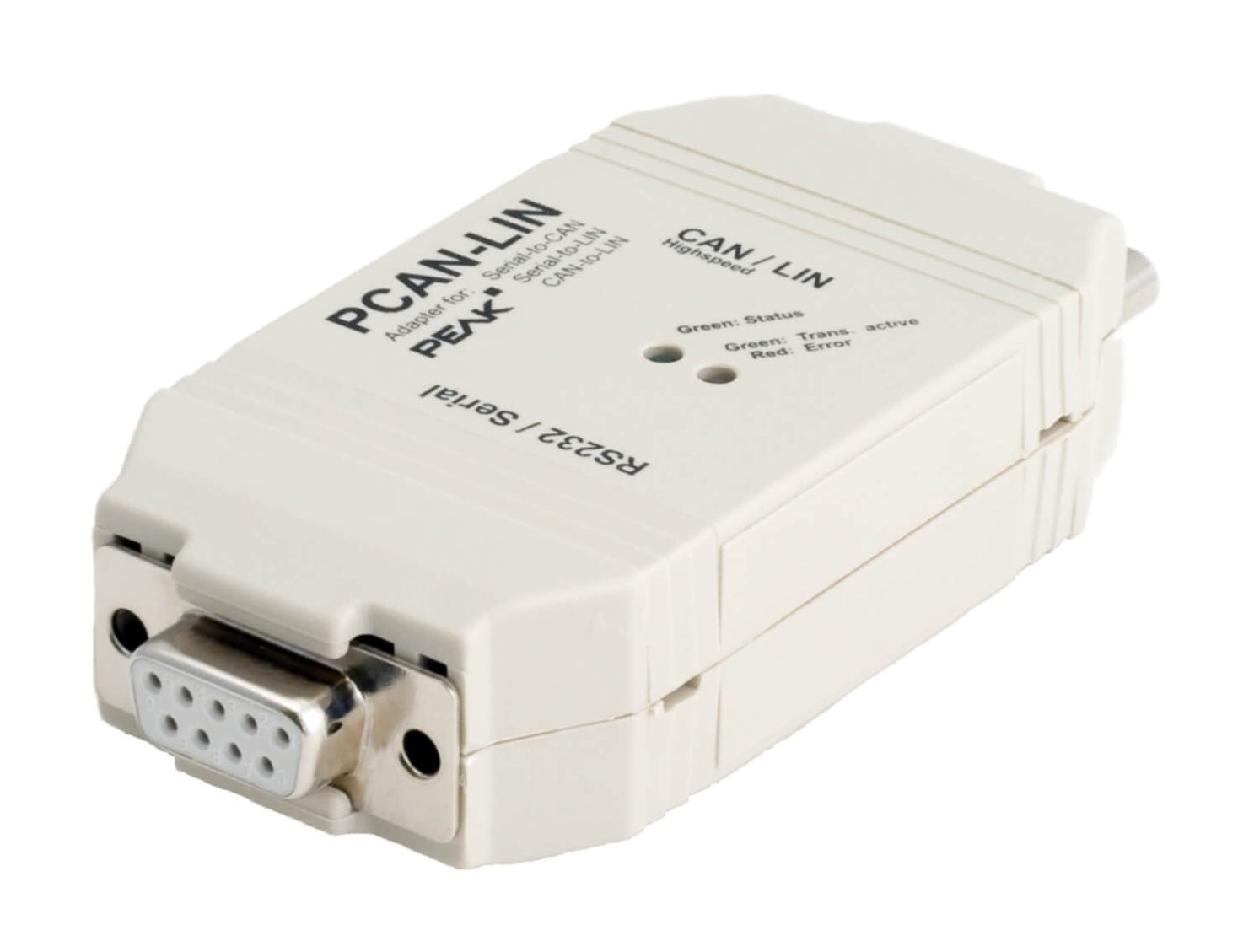

PCAN-LIN Interface (low-speed) IPEH-002028 corner top view
PCAN-LIN Interface (low-speed) IPEH-002028 product shot view

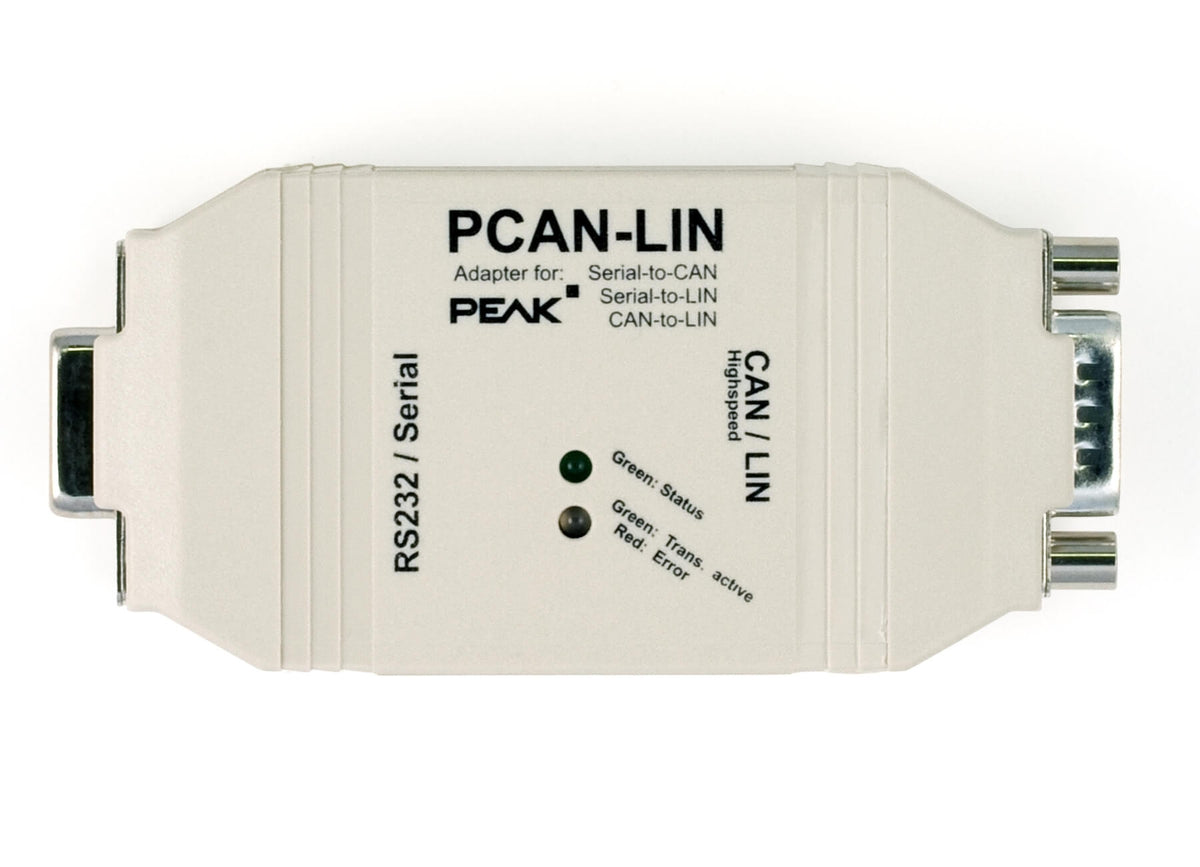

PCAN-LIN Interface (low-speed) IPEH-002028 Top down view

Images provided by manufacturer.

PEAK-System Technik

PCAN-LIN Interface (low-speed)

SKU: IPEH-002028
(0)
$325 USD
-8% $355 USD $325 USD
In stock
Usually ships within 24 hours if in stock.
Title

Orders placed before 2:30 Pacific Time usually ship the same day.

  • American Express
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

Contact us.

This module (low speed) enables users to communicate over CAN, LIN and serial interface.

The included firmware enables data exchange between the different bus systems, while configuration software allows setup of different operational modes.

For instance, when configured as a LIN master, the PCAN-LIN can request data and send the incoming LIN data to the CAN bus and/or the serial interface. The default bit rate for LIN is 19200 bps. CAN data are directly routed to LIN without offset (offset 0). The Low-Speed version has a max CAN speed of 125 kbps.


  • Sending/receiving LIN 1.x and 2.0 frames
  • The standard bit rate is set to 19200 bit/s for LIN and to 500 kbit/s for CAN
  • Electrical decoupling available between RS-232 and CAN/LIN (maximum 1 kV, optional)
  • Available for use as LIN slave or master / slave
  • General-purpose gateway (or router when using Acceptance Code / Acceptance Mask feature) from:
    • RS-232 to LIN (and back)
    • CAN to LIN (and back)
    • RS-232 to CAN (limited bandwidth)
  • Individual LIN frames can be initiated via CAN or RS-232
  • Processing a user-definable LIN-ID list (scheduler with limited number of entries, cyclic handling if required)
  • Voltage supply 8-18 V
  • Optional simulation of LIN slaves. Data can be changed via CAN frames (firmware must be modified)
Power Supply +8 … +18 V DC
(via Pin 1 of the D-Sub male connector)
Power Consumption PCAN-LIN LS-CAN: max. 130 mA
Serial RS-232, max. 57.600 kBit/s
LIN ISO 15765-2, LIN 1.x and LIN 2.x, max. 19.200 kBit/s
CAN PCAN-LIN LS-CAN: ISO 11898-3, CAN transceiver Philips TJA1054, max. 125 kBit/s, CAN 2.0A (Standard format) and 2.0B (Extended format), CAN controller Philips SJA1000
Dimensions 92 x 44 x 22 mm
Operating temperature -40 … +85 °C (-40 … +185 °F)
Storage temperature -40 … +100 °C (-40 … +212 °F)
Relative humidity 15 - 90 %, not condensing
EMC directives EN 61000-6-3:2001
EN 61000-6-1:2001
EN 61000-6-4:2001
EN 61000-6-2:2001
EC directive 89/336/EEC
Weight 48g
Certifications CE
PCAN-LIN manual
Manual in English
PCAN-LIN protocol definition
Manual in English
PCAN-LIN package
PCAN-LIN Configuration software for Windows® 10, 8.1, 7 (32/64-bit)

  • Type Gateways & Routers
  • Vendor PEAK-System Technik
