PCAN-LWL

IPEH-002026
$979.00

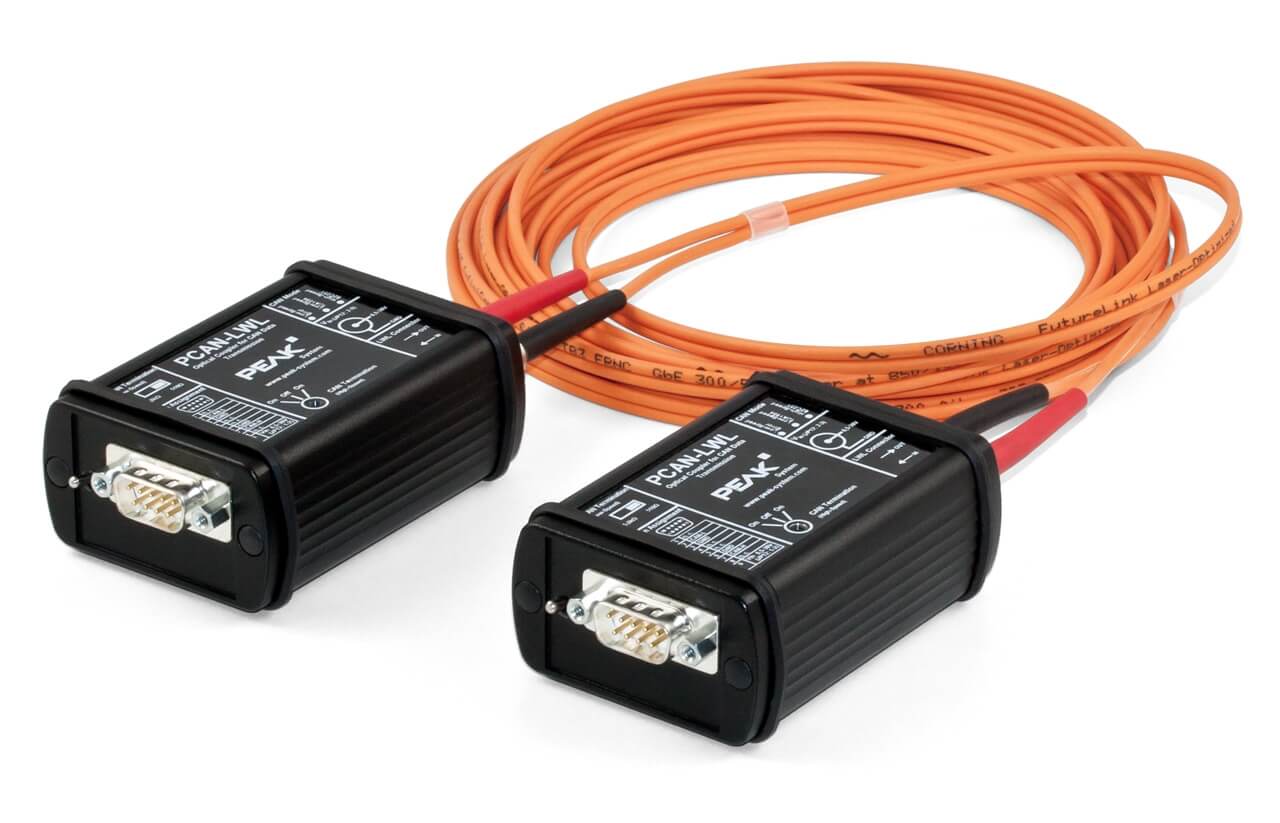

For use in explosion-proof areas or for EMI/EMC measurements, the PCAN-LWL can be used to replace a stretch of CAN network with a fiber-optic line at any point. There are the options of conversion to high-speed CAN or low-speed CAN. The modules are supplied with power externally. PCAN-LWL CAN wire to fiber-optic converters, incl. 5 meter fiber-optic cable
  • LED display for transceiver status
  • High-speed CAN: AMIS 30660 transceiver, max. 500 kbit/s, integrated 120 Ohm bus termination can be turned on/off
  • Low-speed CAN: TJA1054 transceiver, max. 125 kbit/s, integrated 510 Ohm / 5.6 kOhm bus termination can be turned on/off, bus error display
  • Fiber-optic line consists of a 62.5/125 µm fiber-optic duplex line with ST connectors
  • Aluminum casing
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 102)
  • Supply voltage: 6.5 – 30 V
  • Supply via D-Sub 9 pin, or DC connector (jumper)
  • Operating temperature range from 0 to 70 °C (32 to 158 °F)
High-speed CAN: D-Sub plug, 9 pins, in accordance with CiA® 102
Transceiver: AMIS 30660
Bit rate: max. 500 kbit/s
Bus termination: switchable 120 Ω
Low-speed CAN: D-Sub plug, 9 pins; in accordance with CiA® 102
Transceiver: TJA1054
Bit rate: max. 125 kbit/s
Bus termination: switchable 510 Ω / 5,6 kΩ
Signal delay
(through 2x PCAN-LWL + 5 m OWG)
High-speed CAN: approx. 250 ns
Low-speed CAN: approx. 1,5 μs
Optical wave guide Optical fiber duplex line with ST connector
Supply voltage 6,5 - 30 V
Power Consumption max. 50 mA (at 9 V)
Operating temperature 0 - 70 °C (32 - 158 °F)
Storage temperature -40 - 100 °C (-40 – 212 °F)
Relative humidity 15 - 90 %, not condensing
EMC EN 55024:2003-10
EN 55022:2008-05
EC directive 2004/108/EG
Ingress protection (DIN EN 60529) IP20
Size 60 x 35 x 80 mm (B x H x T)
Weight 138 g
