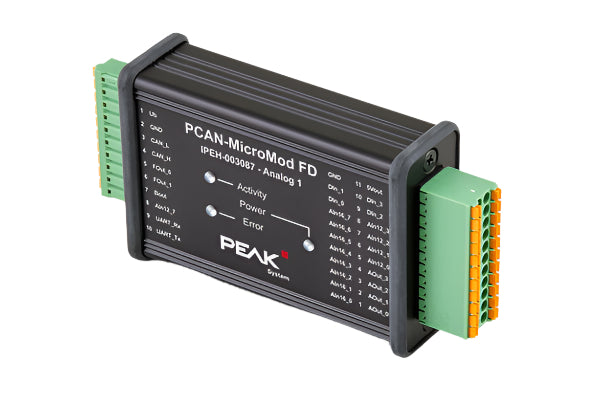

The PCAN-MicroMod FD plug-in board can be purchased together with ready-to-use motherboards that provide peripherals for specific requirements. For the connection of CAN, I/O, and power supply, spring terminal connectors are used. The motherboard PCAN-MicroMod FD Analog 1 puts the emphasis on analog inputs and outputs, which are provided with appropriate protective circuitry.
The PCAN-MicroMod FD is configured using the supplied Windows software. In addition to simple I/O mapping to CAN IDs, function blocks are also available for processing the data. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an independent CAN node. Multiple modules can be configured independently on a CAN bus. (Requires a PCAN interface.)
The PCAN-MicroMod FD is configured using the supplied Windows software. In addition to simple I/O mapping to CAN IDs, function blocks are also available for processing the data. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an independent CAN node. Multiple modules can be configured independently on a CAN bus. (Requires a PCAN interface.)
All PCAN-MicroMod FD products can alternatively be operated with CANopen firmware. Licenses for the CANopen/CANopen FD firmware are available from our partner Embedded Systems Academy.
- Completely configurable using the Windows® software PCAN-MicroMod Configuration
- Communication through High-speed CAN
- Operating voltage 8 - 26 V
- Aluminum housing with spring terminal connectors. Optional DIN rail fixing option available
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
- CANopen firmware available upon request
- Board with plugged on PCAN-MicroMod FD
- Configuration via the CAN bus with the Windows® software PCAN-MicroMod FD Configuration
- High-speed CAN connection (ISO 11898-2)
- Complies with CAN specifications 2.0 A/B and FD
- CAN FD bit rates for the data field (64 bytes max.) from 20 kbit/s up to 10 Mbit/s
- CAN bit rates from 20 kbit/s up to 1 Mbit/s
- Switchable CAN termination
- 2 frequency outputs
- Low-side switches
- Adjustable frequency range from 0 to 20 kHz
- 1 analog input for voltage monitoring up to 30 V, resolution 12 bit
- 8 analog inputs
- Resolution 16 bit
- Measuring range adjustable: ±2.5 V, ±5 V, ±10 V, ±20 V
- 4 analog inputs
- Resolution 12 bit
- Measuring range 0 - 10 V
- 4 analog outputs
- Resolution 12 bit
- Voltage range adjustable: 0 - 5 V or 0 - 10 V
- 4 digital inputs
- Pull-up or pull-down configurable
- 4-bit rotary coding switch for setting the module ID
- 3 status LED
- Aluminum casing with spring terminal connectors
- Operating voltage 8 to 30 V
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
| PCAN-MicroMod FD Analog 1 |
| FD Analog Users Manual in PDF format |
| PCAN-MicroMod FD User Manual |
| PCAN-MicroMod FD manual in PDF format |
| PCAN-MicroMod FD Configuration tutorial |
| PCAN-MicroMod FD Configuration Tutorial in PDF format |
| PCAN-MicroMod FD Configuration tutorial Examples Files |
| PCAN-MicroMod FD Configuration Tutorial Example Files |
| PCAN-MicroMod FD CANopen® firmware manual |
| PCAN-MicroMod FD CANopen® firmware manual in PDF format |
| PCAN-MicroMod FD Configuration |
| Configuration software for PCAN-MicroMod FD products for Windows® 11 (64-bit), 10 (32/64-bit). |
| PCAN-MicroMod FD CANopen package |
| Package with CANopen EDS files for the PCAN-MicroMod FD products. |
| PEAK-Flash |
| Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters for Windows® 11 (64-bit), 10 (32/64-bit). |
