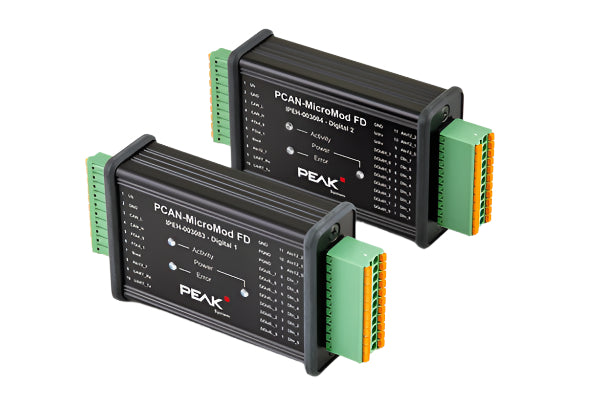

PCAN-MicroMod FD Digital 1

SKU #: IPEH-003083

The PCAN-MicroMod FD plug-in board can be purchased together with ready-to-use motherboards that provide peripherals for specific requirements. For the connection of CAN, I/O, and power supply, spring terminal connectors are used. The motherboard PCAN-MicroMod FD Digital 1 puts the emphasis on digital inputs and outputs, which are provided with appropriate protective circuitry.

The PCAN-MicroMod FD is configured using the supplied Windows software. In addition to simple I/O mapping to CAN IDs, function blocks are also available for processing the data. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an independent CAN node. Multiple modules can be configured independently on a CAN bus. (Requires a PCAN interface.)

All PCAN-MicroMod FD products can alternatively be operated with CANopen firmware. Licenses for the CANopen/CANopen FD firmware are available from our partner Embedded Systems Academy.

  • Completely configurable using the Windows® software PCAN-MicroMod Configuration
  • Communication through High-speed CAN
  • Operating voltage 8 - 26 V
  • Aluminum housing with spring terminal connectors. Optional DIN rail fixing option available
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
  • CANopen firmware available upon request
  • Board with plugged on PCAN-MicroMod FD
  • Configuration via the CAN bus with the Windows® software PCAN-MicroMod FD Configuration
  • High-speed CAN connection (ISO 11898-2)
    • Complies with CAN specifications 2.0 A/B and FD
    • CAN FD bit rates for the data field (64 bytes max.) from 20 kbit/s up to 10 Mbit/s
    • CAN bit rates from 20 kbit/s up to 1 Mbit/s
    • Switchable CAN termination
  • 2 frequency outputs
    • Low-side switches
    • Adjustable frequency range from 0 to 20 kHz
  • 1 analog input for voltage monitoring up to 30 V, resolution 12 bit
  • 8 digital inputs
    • Pull-up or pull-down configurable
  • 8 digital outputs
    • Digital 1: Low-side switches
    • Digital 2: High-side switches
    • PWM mode: resolution duty cycle 16 bit, adjustable frequency range from 0 to 20 kHz
  • 3 analog inputs
    • Resolution 12 bit
    • Measuring range 0 - 10 V
  • 4-bit rotary coding switch for setting the module ID
  • 3 status LED
  • Aluminum casing with spring terminal connectors
  • Operating voltage 8 to 30 V
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)

PCAN MicroMod FD User Manual
FD User Manual in PDF Format
PCAN-MicroMod Digital 1 & 2 manual
Digital Manual in PDF Format
PCAN-MicroMod FD User Manual
FD User Manual in PDF Forman
PCAN-MicroMod Configuration
The package includes the configuration software PCAN-MicroMod Configuration for Windows®, the latest PCAN-MicroMod and the CANopen® firmware, all files for development, and documentation (German and English)

Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters.
