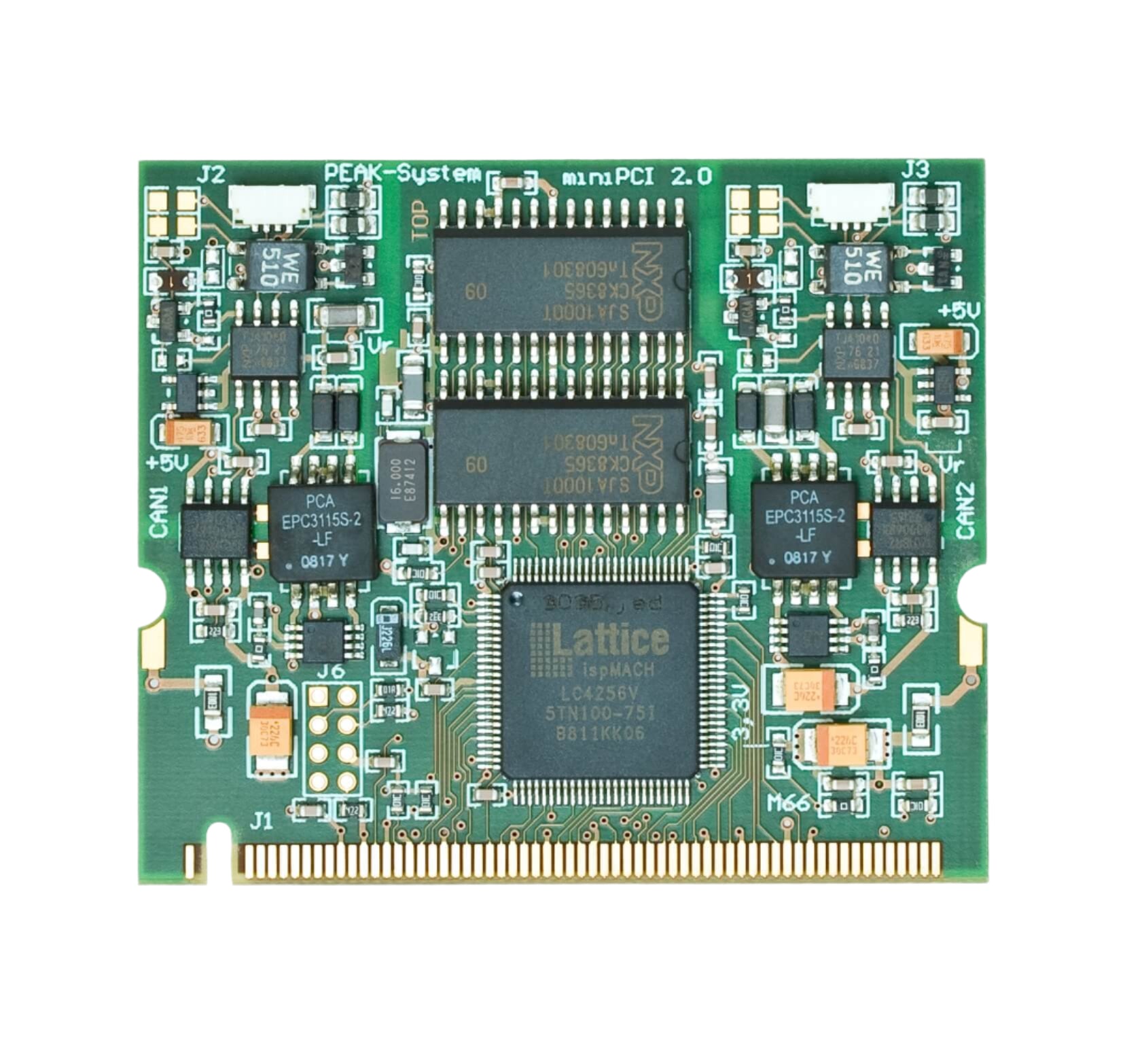

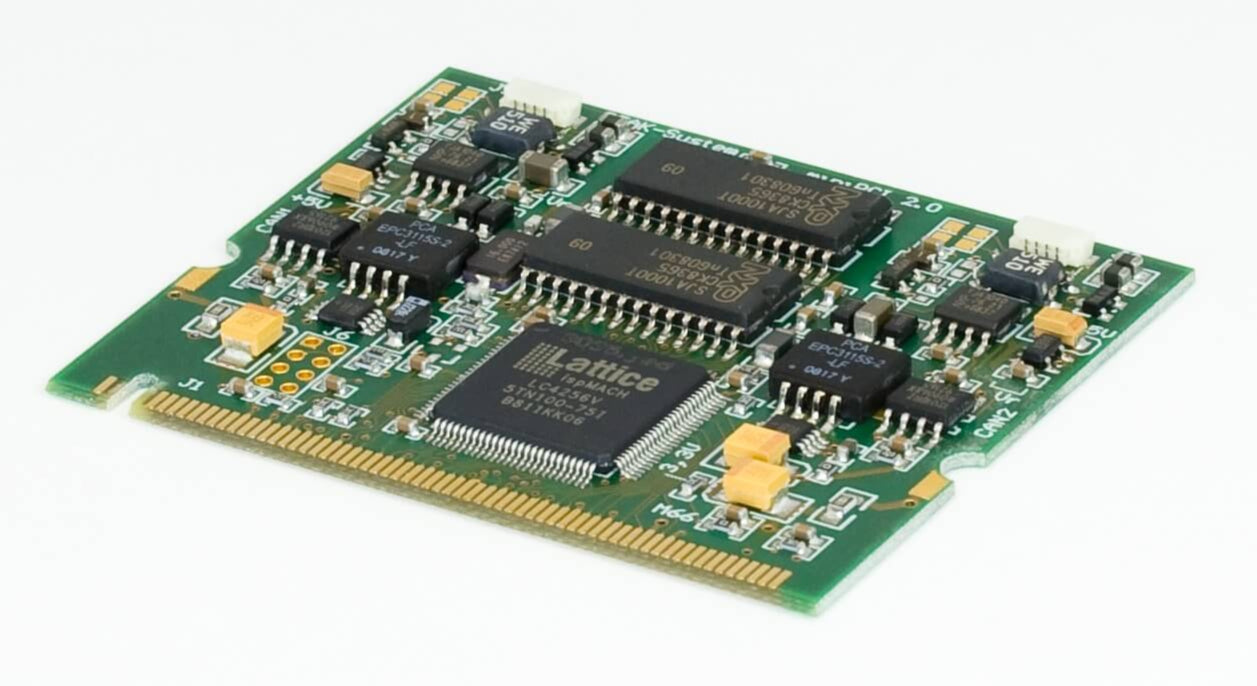

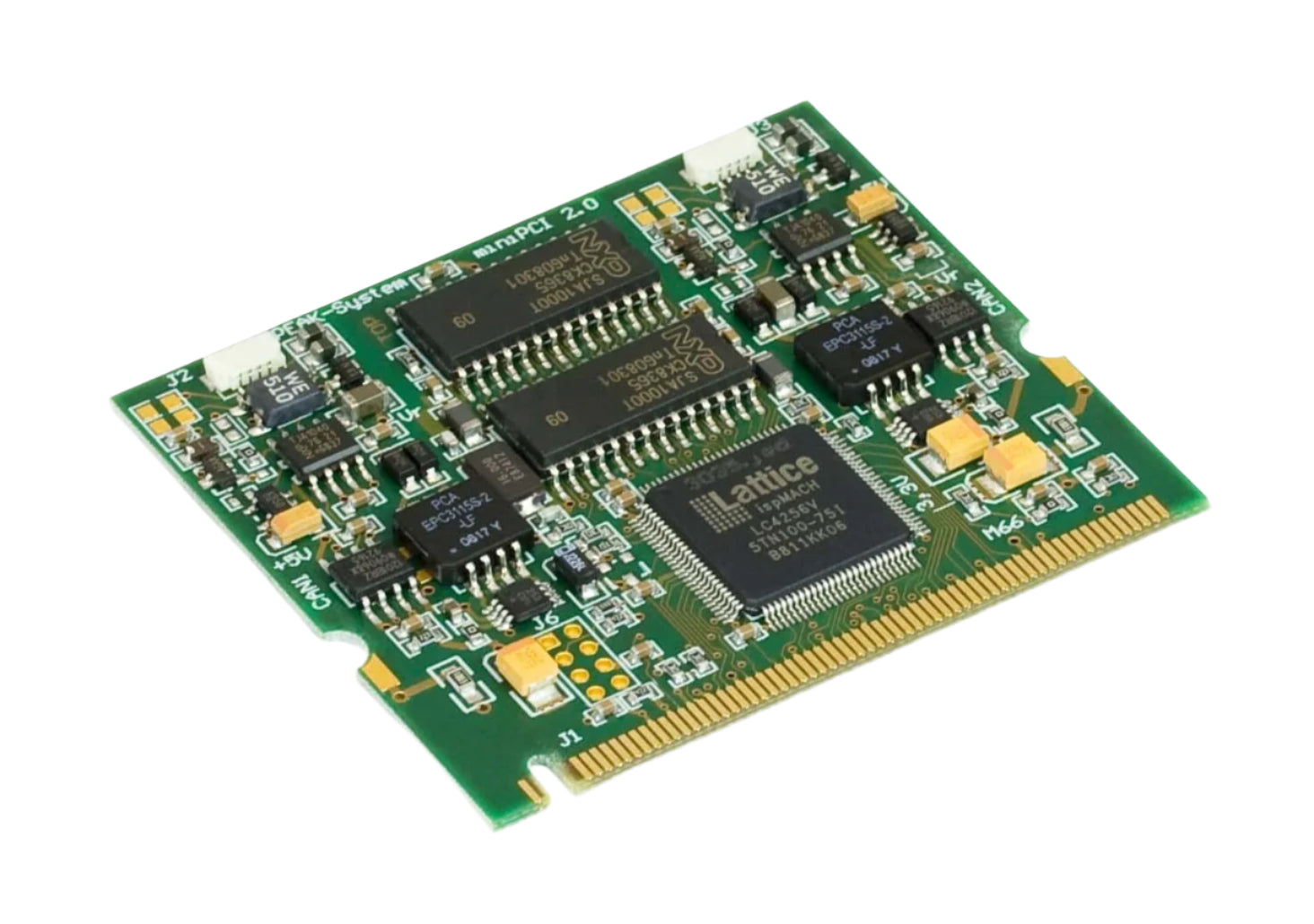

PCAN-miniPCI card (1ch/2ch)

SKU #: IPEH-003044, IPEH-003045

The PCAN-miniPCI card enables the connection of embedded PCs and laptops with Mini PCI slots to CAN networks. The PCAN-miniPCI package includes device drivers for Windows® 10, 8.1, 7 (32/64Bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available.

  • CAN interface for the Mini PCI slot
  • CAN bus connection via connection cable and D-Sub, 9-pin (to CiA® 102)
  • Transfer rates up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • NXP SJA1000 CAN controller, 16 MHz clock frequency
  • 82C251 CAN transceiver
  • Space-saving dimensions thanks to SMD technology
  • Hardware can be reset via software
  • 5 Volt supply to the CAN circuitry can be connected through a solder jumper, e.g. for external transceiver
  • Available as single or dual-channel CAN version
Interface(s) PC: Mini PCI bus type 3A (124-pin)
CAN: ISO 11898-2, complies with CiA-recommendation DS 102
Power Consumption 3.3V max. 20mA, 5V below
1 channel max. 50mA
2 channel max. 80 mA
Baud Rate CAN: max. 1 Mbit/s
Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Transceiver CAN: NXP / Philips PCA82C251
Dimensions 59.6 x 51 x 4 mm
Weight 54, 63, 55, 65 g
Software Driver: Windows® 10, 8.1, 7 and Linux (32/64-bit)
Tools: PCAN-View for Windows®
Connector(s) 15 cm
Controller(s) CAN: NXP / Philips SJA1000
I/O & IRQ automatically assigned via "plug n play"
Specification CAN: 2.0A (Standard format) and 2.0B (extended format)
Operating temperature -20°C to +70°C
Storage temperature -40°C to +100°C
Relative humidity 15% to 90% (non-condensing)
EMC directives EN 55024:2003-10
EN 55022:2007-04
EC directive 89/336/EEC
Certifications CE, RoHS
PCAN-miniPCI manual
User's Guide in English
PCAN-miniPCI package
Contains device drivers for Windows® 10, 8.1, 7 and Linux (32/64-bit), the PCAN-Basic API, the CAN monitor PCAN-View, and documentation (German and English)
Important Information
New Device Driver 3.x Information Page
PCAN-Linux device driver
Driver for PEAK CAN interfaces from Kernel 2.4 and higher
