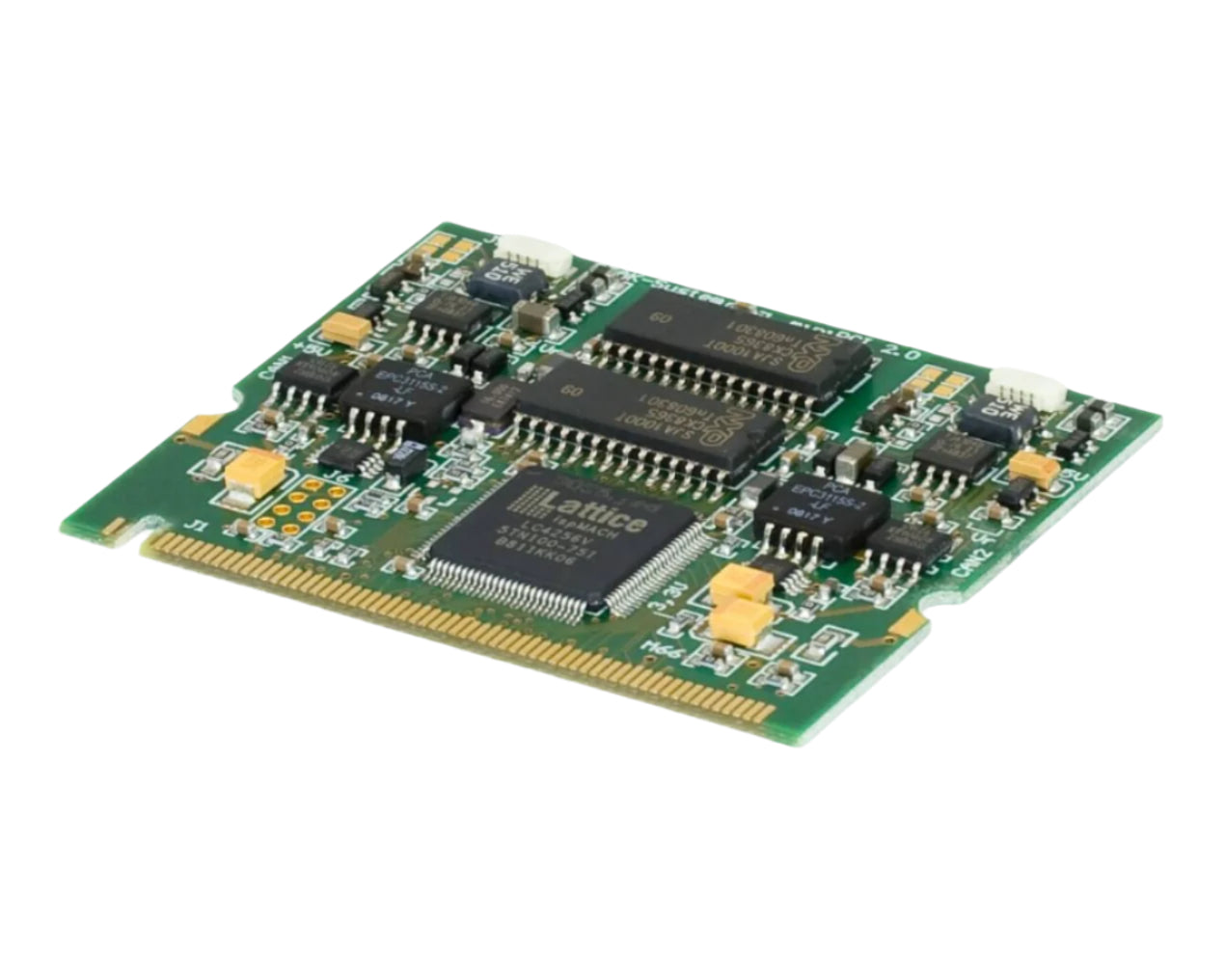

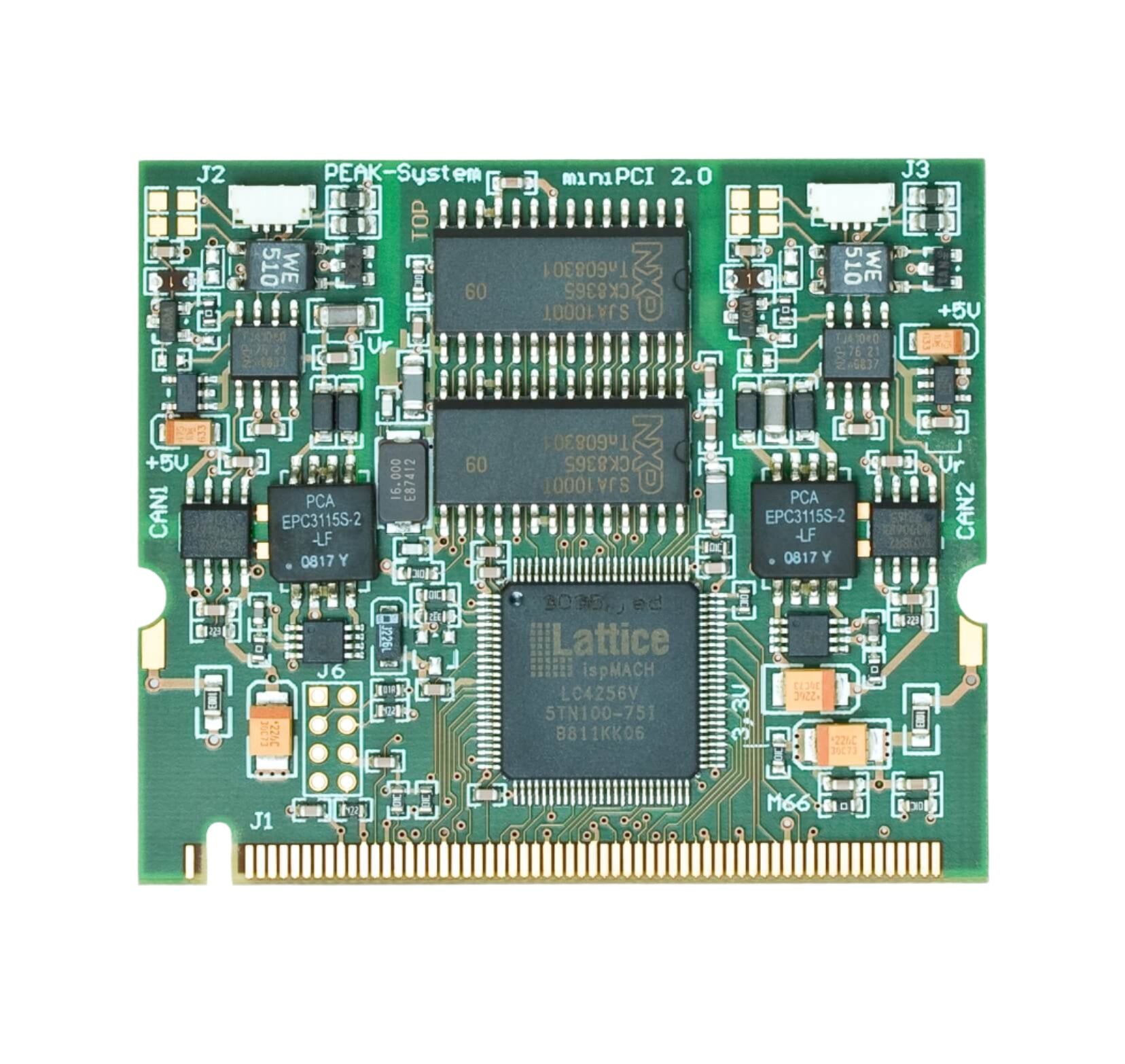

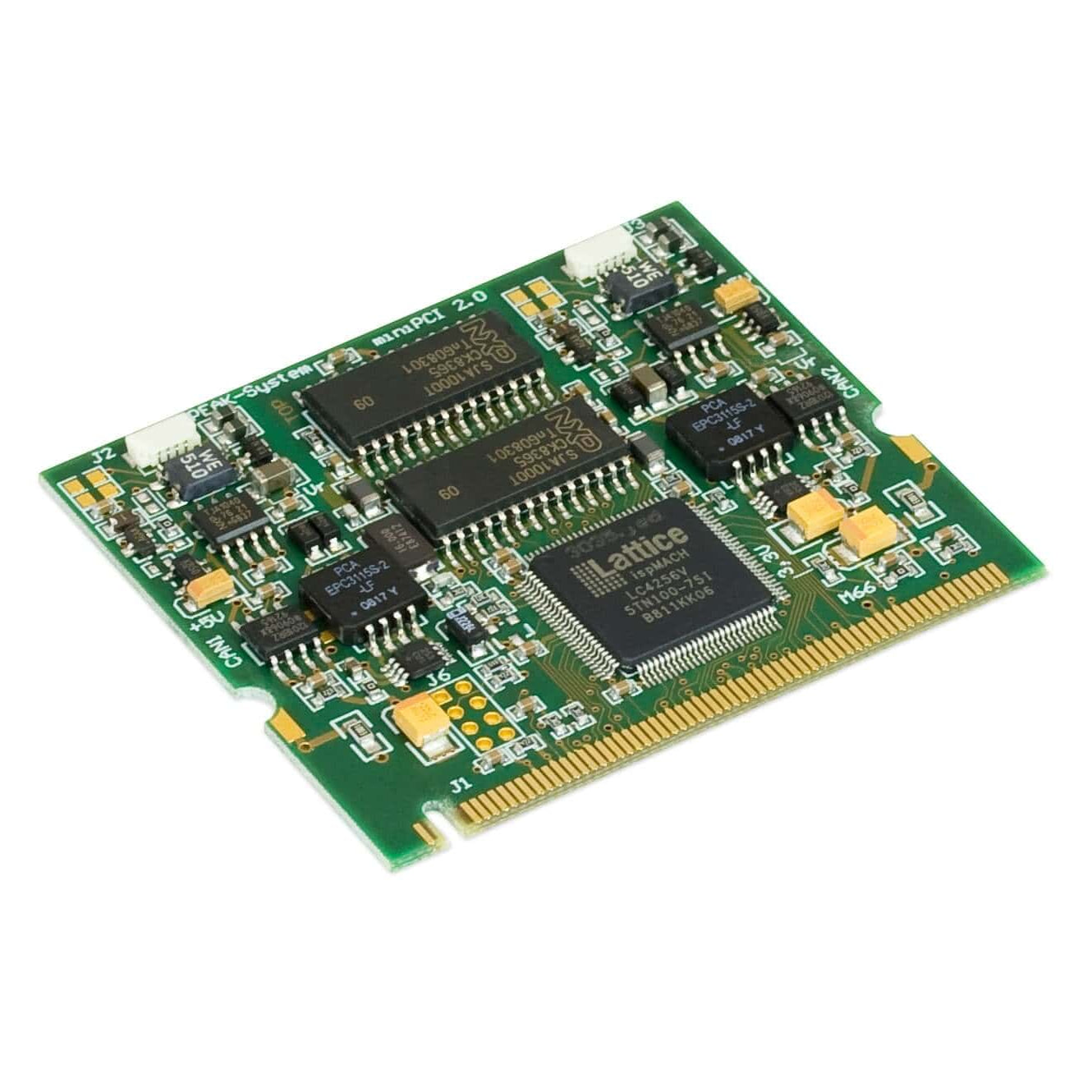

PCAN-miniPCI card, iso (1ch/2ch)
SKU #: IPEH-003046, IPEH-003047
The PCAN-miniPCI card enables the connection of embedded PCs and laptops with Mini PCI slots to CAN networks. The PCAN-miniPCI package includes device drivers for Windows® 10, 8.1, 7 and Linux (32/64-bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available.
- CAN interface for the Mini PCI slot
- CAN bus connection via connection cable and D-Sub, 9-pin (to CiA® 102)
- Transfer rates up to 1 Mbit/s
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- NXP SJA1000 CAN controller, 16 MHz clock frequency
- 82C251 CAN transceiver
- Space-saving dimensions thanks to SMD technology
- Hardware can be reset via software
- 5-Volts supply to the CAN circuitry can be connected through a solder jumper, e.g. for external transceiver
- Galvanic isolation on the CAN connection up to 300 V, separate for each CAN channel
- Available as single or dual-channel CAN version
| Interface(s) | PC: Mini PCI bus type 3A (124-pin) CAN: ISO 11898-2, complies with CiA-recommendation DS 102 |
| Power Consumption | 3.3V max. 20mA, 5V below 1 channel isolated max. 60 mA 2 channel isolated max. 100 mA |
| Baud Rate | CAN: max. 1 Mbit/s |
| Pinout | C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3) |
| Transceiver | CAN: NXP / Philips PCA82C251 |
| Dimensions | 59.6 x 51 x 4 mm |
| Weight | 54, 63, 55, 65 g |
| Software | Driver: Windows® 10, 8.1, 7 and Linux (32/64-bit) Tools: PCAN-View for Windows® |
| Connector(s) | 15 cm |
| Controller(s) | CAN: NXP / Philips SJA1000 |
| Channels | 1 or 2 or 4 |
| I/O & IRQ | automatically assigned via "plug n play" |
| Isolation | 300 VDC |
| Specification | CAN: 2.0A (Standard format) and 2.0B (extended format) |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -40°C to +100°C |
| Relative humidity | 15% to 90% (non-condensing) |
| EMC directives | EN 55024:2003-10 EN 55022:2007-04 EC directive 89/336/EEC |
| Certifications | CE, RoHS |
| PCAN-miniPCI manual |
| User's Guide in English |
| PCAN-miniPCI package |
| Contains device drivers for Windows® 10, 8.1, 7 and Linux (32/64-bit), the PCAN-Basic API, the CAN monitor PCAN-View, and documentation (German and English) |
| Important Information |
| New Device Driver 3.x Information Page |
| PCAN-Linux device driver |
| Driver for PEAK CAN interfaces from Kernel 2.4 and higher |
