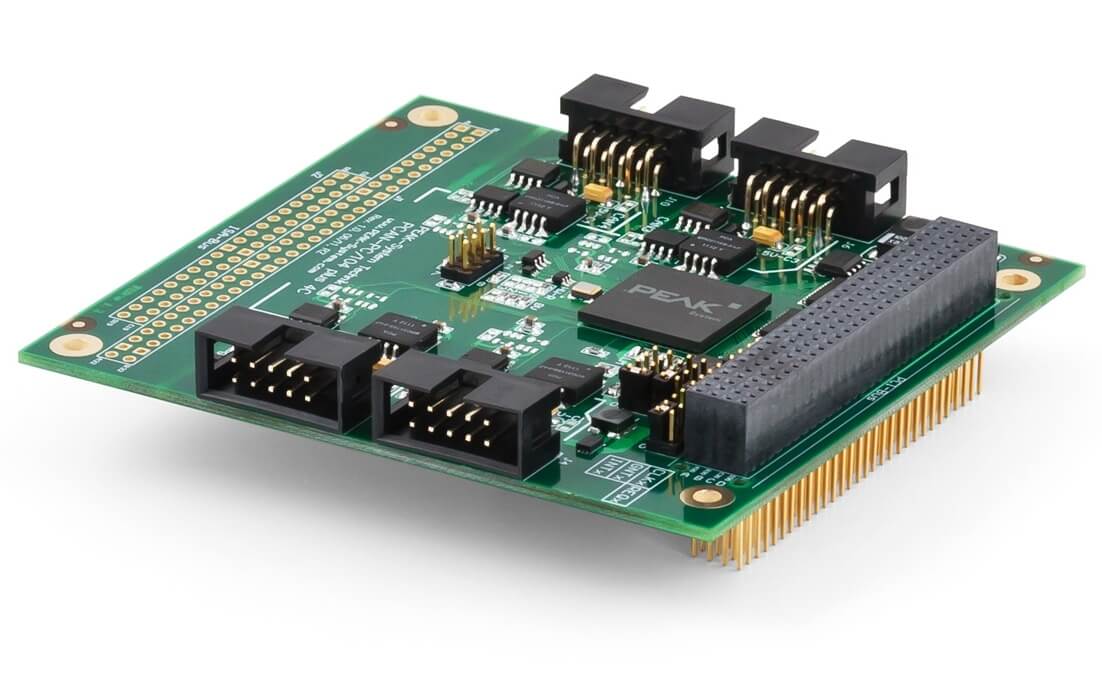

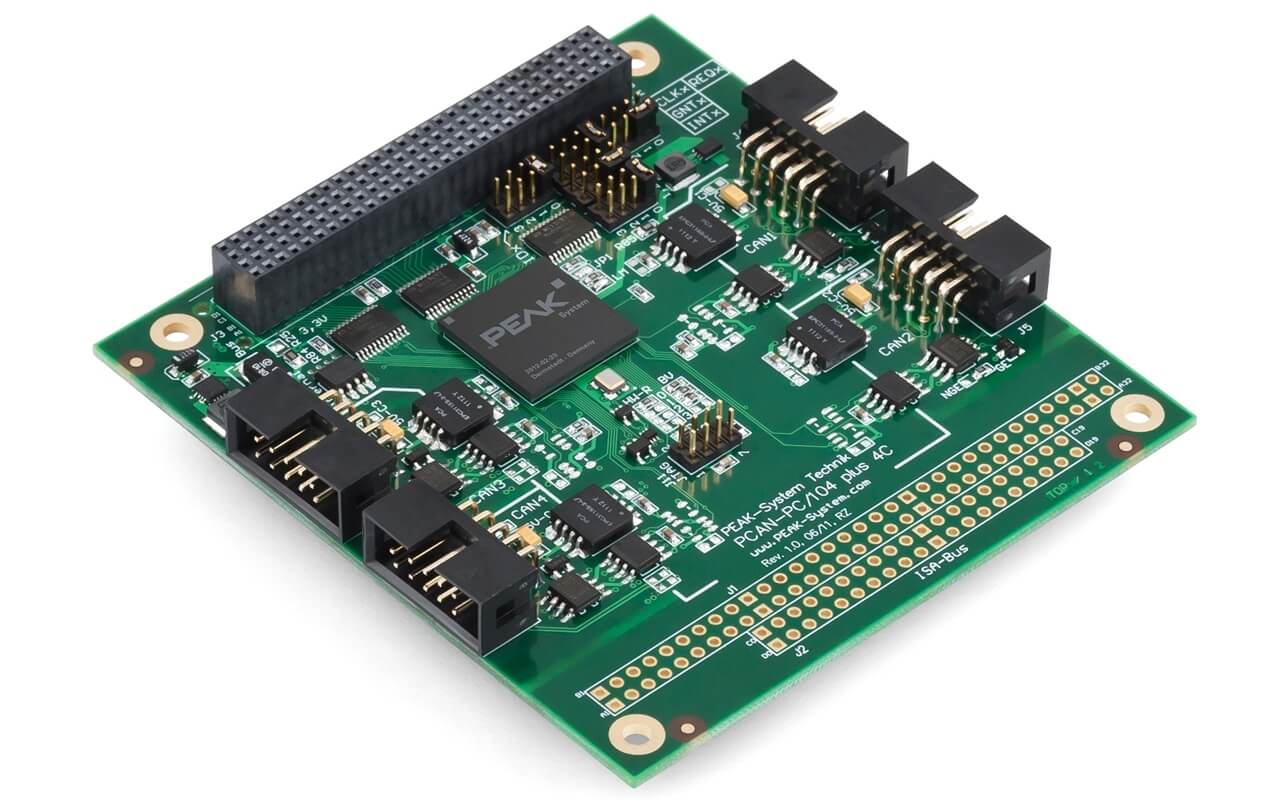

PCAN-PC/104plus Quad Adapter, iso (4-channel)

SKU #: IPEH-002099
Save 5%
Original price $525
Current price $499

The PCAN-PC/104-Plus Quad card enables the connection of four CAN networks to a PC/104-Plus system. Up to four cards can be stacked within one system. The position of the card in the stack is set with jumpers. Connection to the CAN bus is via a 10-pin upright connector. A cable from the 10 pin connector to a slot bracket with a 9-pin D-SUB connector (pin assignment in accordance with standard recommendation CiA DS 102-1) is provided. The opto-decoupled version (optional) guarantees galvanic isolation of up to 500 volts between the PC/104-Plus and the CAN using an integrated DC/DC converter and optocoupler. The PCAN-PC/104-Plus Quad package includes device drivers for Windows® 7/8/10, Vista/XP (32/64-bit), the PCAN-View CAN monitor software, and the PCAN-Basic API with source code samples for writing own application software. Linux drivers are also available.

  • PC/104 form factor, using the 120-pin connection for PCI bus
  • Transfer rates up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection via D-Sub, 9-pin (to CiA® 102)
  • NXP SJA1000 CAN controller (FPGA implementation)
  • NXP PCA82C251 CAN transceiver
  • Galvanic isolation of the CAN signals up to 500 V, separate for each CAN channel
  • 5 Volt supply at the CAN connector can be provided through a solder jumper, e.g. for external transceiver
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
Interface(s) PC: PC/104-Plus (version 2.0), 32 bit PCI-bus, for 3.3V and 5V
CAN: ISO 11898-2, complies with CiA-recommendation DS 102
Power Consumption 4 channel isolated max. 300 mA
Baud Rate CAN: max. 1 Mbit/s
Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Transceiver CAN: NXP / Philips PCA82C251
Dimensions 96 x 90 x 15 mm
Weight 56 g
Software Driver: Windows® 10, 8.1, 7 and Linux (32/64-bit)
Tools: PCAN-View for Windows®
Isolation 500 VDC (separate for each channel)
Controller(s) CAN: NXP SJA1000-compatible (FPGA implementation)
I/O & IRQ automatically assigned via "plug n play"
Specification CAN: 2.0A (Standard format) and 2.0B (extended format)
Operating temperature -40°C to +85°C
Storage temperature -40°C to +125°C
Relative humidity 15% to 90% (non-condensing)
EMC directives EN 55024:2003-10
EN 55022:2007-04
EC directive 89/336/EEC
Certifications CE, RoHS
PCAN-PC/104-Plus Quad manual
PDF Manual in English
PCAN-PC/104-Plus Quad package
Package contains device drivers for Windows® 10, 8.1, 7 and Linux (32/64-bit), the PCAN-Basic API, the CAN monitor PCAN-View, and documentation

New Device Driver 3.x Important Information
