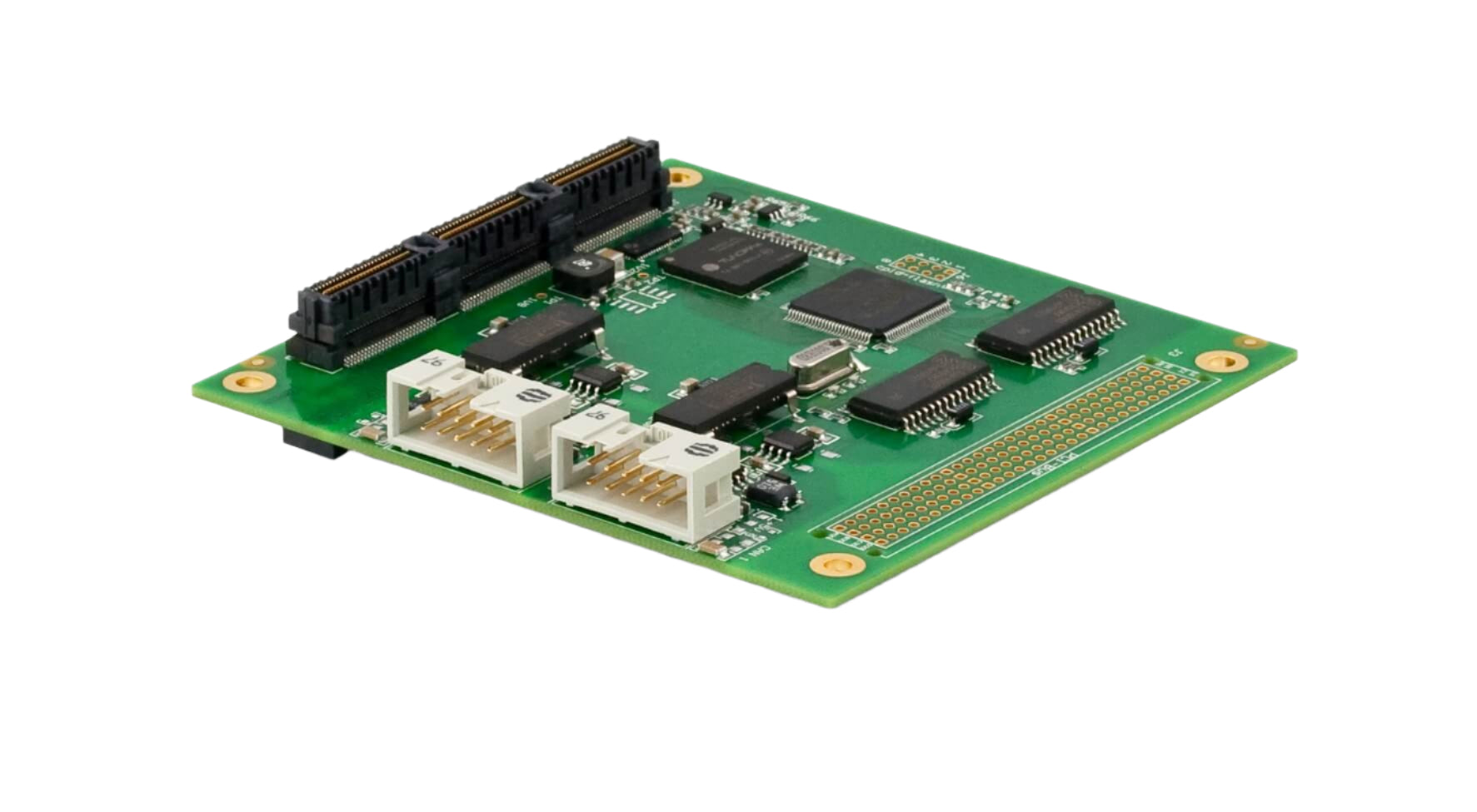

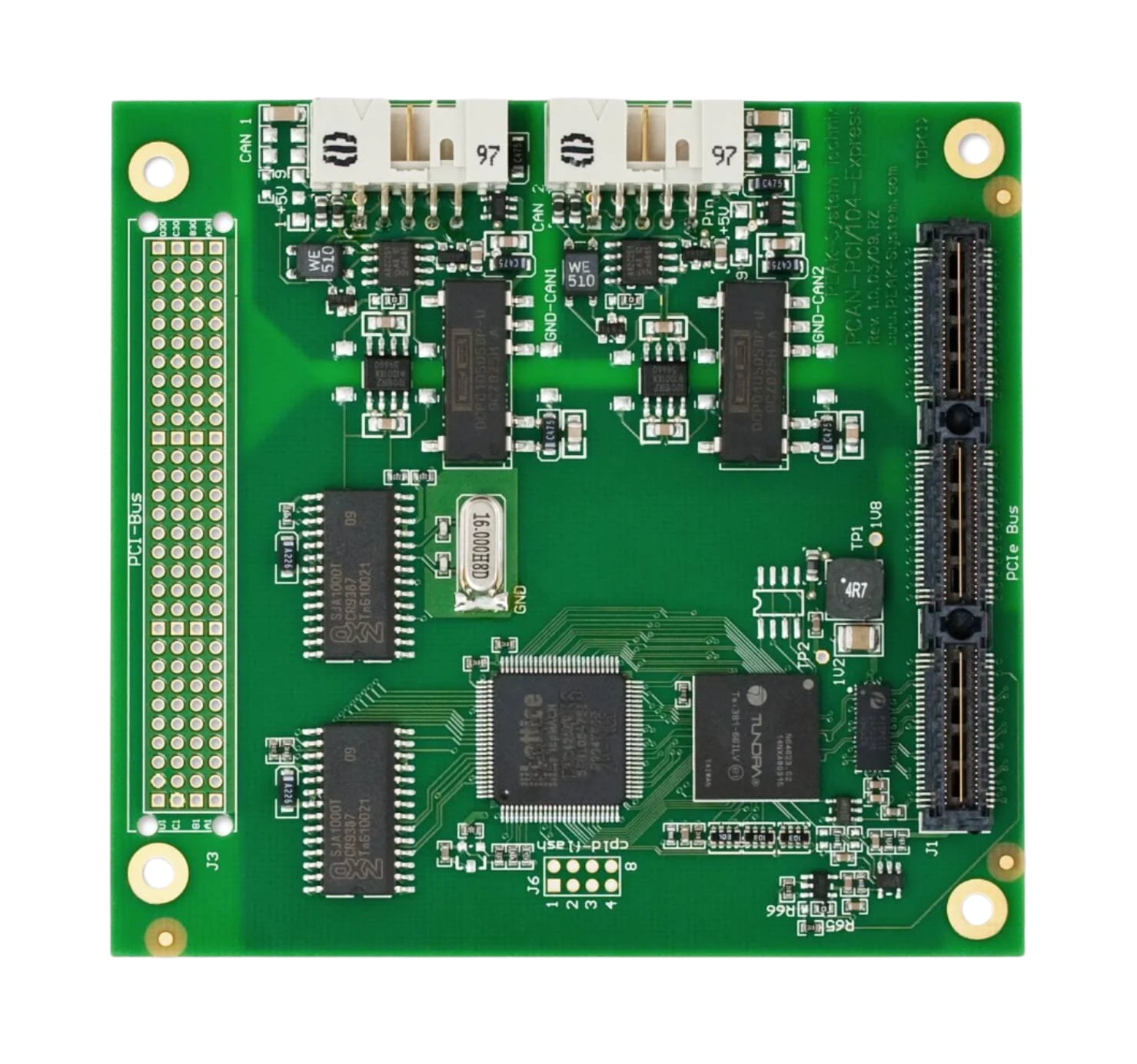

PCAN-PCI/104 Express card, iso (1ch/2ch)

SKU: IPEH-003056

(0)

Regular price $355 USD

Only 2 left

Our inventory is low. Contact us if you want to verify availability.

Part Number IPEH-003056 (1* CAN) IPEH-003057 (2* CAN)

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Orders placed before 2:30 Pacific Time usually ship the same day.

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

End of Life - The Product will be Discontinued

Please note: The product is only available in limited quantities and is expected to be discontinued in the course of the year.

The PCAN-PCI/104-Express card enables the connection of one, two or four CAN networks to a PCI/104-Express-System. Up to three cards can be stacked together. The CAN bus is connected using a 9-pin D-Sub plug on the slot bracket supplied. The card is available as a single or dual-channel version. The opto-decoupled versions also guarantee galvanic isolation of up to 500 Volts between the PC and the CAN sides. The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.

Part numbers: IPEH-003056 = single channel CAN; IPEH-003057 = dual channel CAN

Features
Tech Specs
Documents
Downloads

PCI/104-Express card, 1 lane (x1)
PC/104 Form factor
Up to three cards can be used in one system
Bit rates up to 1 Mbit/s
Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 102)
NXP SJA1000 CAN controller, 16 MHz clock frequency
NXP PCA82C251 CAN transceiver
5-Volts supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
Includes slot bracket with D-Sub connectors for the CAN bus
Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel
Dual-channel version available
Optional PC/104 stack-through connector

Interface(s)	PC: PC/104-Express PCIe/104 CAN: ISO 11898-2, complies with CiA-recommendation DS 102
Power Consumption	1 channel isolated max 250mA (3.3V), 120 mA (5.0V) 2 channel isolated max 250mA (3.3V), 150mA (5.0V)
Baud Rate	CAN: max. 1 Mbit/s
Pinout	C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Transceiver	CAN: NXP PCA82C251
Dimensions	90.1 x 95.9 x 15 mm
Weight	44g (single CAN), 50g (dual CAN)
Software	Driver: Windows® 10, 8.1, 7 and Linux (32/64-bit) Tools: PCAN-View for Windows®
Controller(s)	CAN: NXP SJA1000
Channels	1 or 2
I/O & IRQ	automatically assigned via "plug n play"
Isolation	500 VDC
Specification	CAN: 2.0A (Standard format) and 2.0B (extended format)
Operating temperature	-40°C to +85°C
Storage temperature	-40°C to +125°C
Relative humidity	15% to 90% (non-condensing)
EMC directives	EN 55024:2003-10 EN 55022:2007-04 EC directive 89/336/EEC
Certifications	CE, RoHS

PCAN-PCI/104-Express manual

User's Guide in English

PCAN-PCI/104-Express package

This contains device drivers for Windows® 7/8, Vista/XP (32/64-bit), the PCAN-Basic API, the CAN monitor PCAN-View, and documentation (German and English)

PCAN-Linux device driver

This package is for PEAK CAN interfaces from Kernel 2.4 and higher

New Device Driver 3.x

Link to new/updated device drivers
