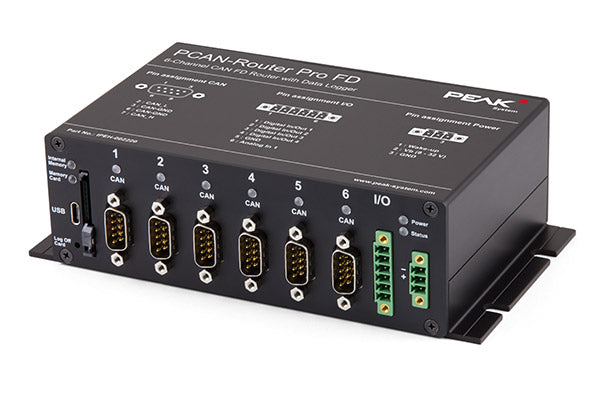

Peak Systems IPEH-002220 PCAN Router Pro FD bottom and front view

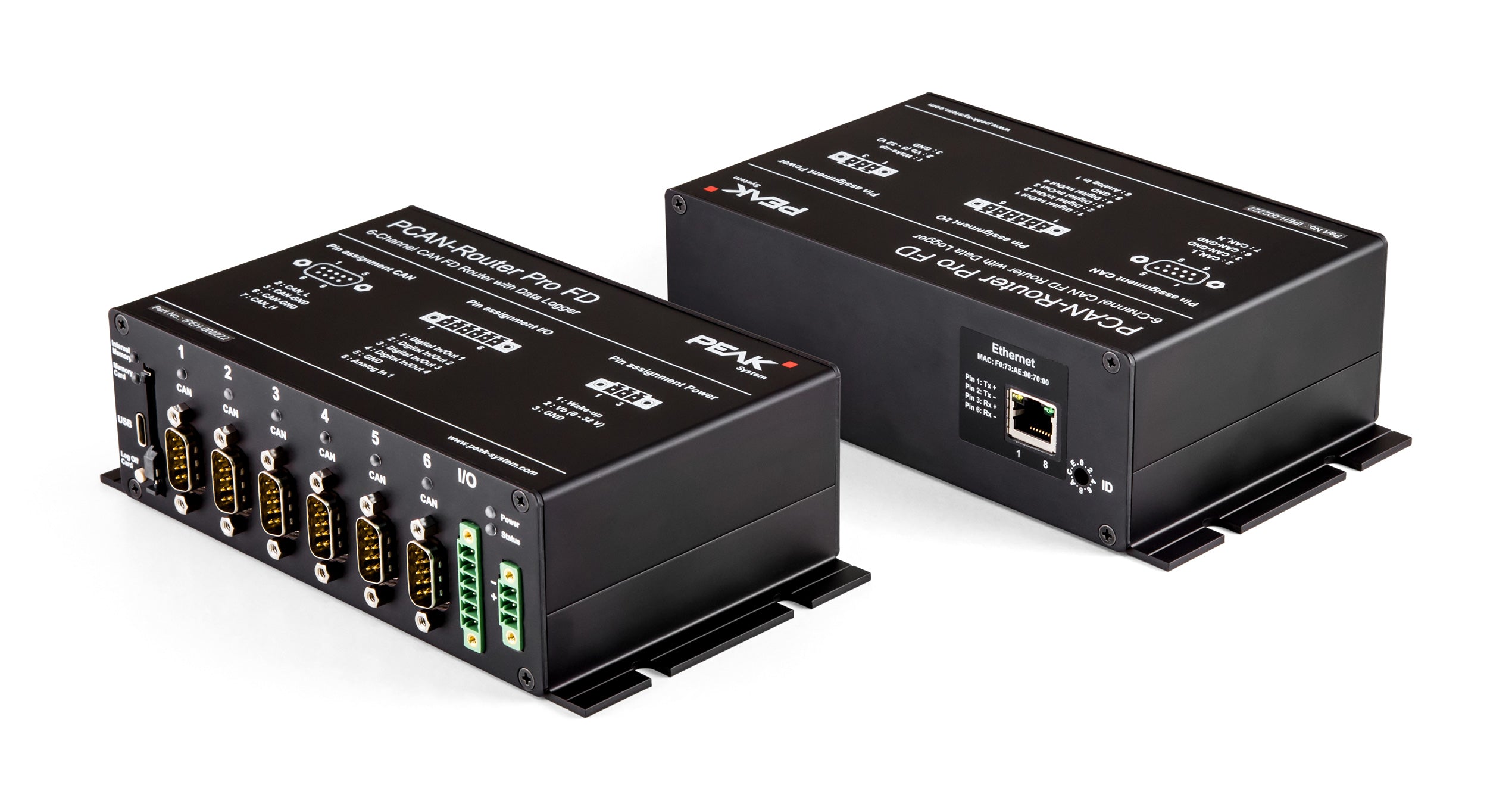

Peak Systems Technik IPEH-002220 PCAN Router Pro FD bottom and front view, and view of IPEH-002222 (w/ Ethernet interface) top view
Peak Systems IPEH-002220 PCAN Router Pro FD bottom and front view
Peak Systems Technik IPEH-002220 PCAN Router Pro FD bottom and front view, and view of IPEH-002222 (w/ Ethernet interface) top view

Images provided by manufacturer.

PEAK-System Technik

PCAN-Router Pro FD

SKU: IPEH-002220
(0)
$1,790 USD
In stock
Usually ships within 24 hours if in stock.
Select Part Number

Orders placed before 2:30 Pacific Time usually ship the same day.

  • American Express
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

Contact us.

Links the data traffic of modern CAN FD and classic CAN buses.

With six channels, the PCAN-Router Pro FD Pluggable CAN transceiver modules allow flexible adaptation of each CAN channel to the respective requirements. In addition, the router is equipped with an analog input and four digital I/Os. The CAN messages can be recorded on the internal memory or on an inserted memory card and later read out via the USB connection. With the PCAN-Router Pro FD the data flow of test benches and production plants can be managed, monitored, and controlled. The conversion from CAN to CAN FD or vice versa enables the integration of new CAN FD applications into existing CAN 2.0 networks.

The behavior of the PCAN-Router Pro FD can be programmed freely for specific applications. The firmware is created using the included development package with GNU compiler for C and C++ and is then transferred to the module via CAN. Various programming examples, such as message forwarding or recording, facilitate the implementation of own solutions.

On delivery, the PCAN-Router Pro FD is equipped with a firmware for recording CAN and CAN FD data traffic. The messages of all six CAN channels can be stored on the internal eMMC memory or on an inserted SD card. The storage media can be accessed via a USB connection.

  • PCAN-Router Pro FD in aluminum casing including mating connectors for I/O (Phoenix Contact MC1,5/6-STF-3,81 - 1827745) and power (Phoenix Contact MC1,5/3-STF-3,81 - 1827716)
  • USB connector cable.
  • IPEH-002222: RJ-45 network patch cord (2 m)
  • Windows® development package with GCC ARM Embedded, flash program, and programming examples
  • Conversion software PEAK-Converter for Windows® 10 (32/64-bit)
  • User Manual

Customization and customer-specific firmware available on request


  • 6 High-speed CAN channels (ISO 11898-2)
    • Comply with CAN specifications 2.0 A/B and FD
    • CAN FD support for ISO and Non-ISO standards
    • CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 12 Mbit/s
    • CAN bit rates from 40 kbit/s up to 1 Mbit/s
    • NXP TJA1043 CAN transceiver with wake-up
    • Alternative pluggable transceiver modules on request
  • CAN connections are D-Sub, 9-pin
  • CAN termination switchable, separately for each CAN channel
  • Wake-up function using separate input, CAN bus, or real-time clock
  • 2 digital I/Os, each usable as digital input or output with High-side switch
  • 2 digital I/Os, each usable as digital input or output with Low-side switch
  • 1 analog input (0 - 33 V)
  • Recording of CAN data and error frames
  • Internal memory: 16 GByte eMMC
  • SD card slot for additional memory
  • USB connection for accessing the data memory (e.g. recorded log data)
  • Conversion of logging data to various output formats using the Windows software PEAK-Converter
  • Battery-buffered real-time clock (RTC), can also be used for wake-up
  • Beeper
  • Status LEDs for CAN channels, memory cards, and power supply
  • Microcontroller STM32F765NIH6 (based on Arm® Cortex® M7)
  • 32 MByte SDRAM in addition to microcontroller RAM
  • Aluminum casing with flange
  • 8 - 32 V power supply, protection against overvoltage and reverse polarity
  • Slot for a backup battery for defined switch-off behavior (e.g. for log data saving)
  • Optional on request: Ethernet interface via RJ-45 socket or BroadR-Reach® interface via D-Sub connector
  • Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)

User Manual
PCAN-Router Pro FD Users Manual
Development package for ARM-based products
Firmware development package for Windows® 11 (64-bit), 10 (32/64-bit) with GCC ARM Embedded, PEAK-Flash, programming examples, and quick start guide. Supported products: PCAN-GPS, PCAN-Router, PCAN-Router DR, PCAN-Router FD, PCAN-Router Pro, PCAN-Router Pro FD, and PCAN-RS-232.
PCAN-Router Pro FD upgrade package
This package includes upgrades for the PCAN-Router Pro FD system components along with the required software and upgrade guide. All data is provided in the development package too. Please see the system components version history to verify that upgrades are available for your device.
PEAK-Flash
Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters for Windows® 11 (64-bit), 10 (32/64-bit).
PEAK-Converter
Conversion of trace data to various output formats using the conversion software PEAK-Converter for Windows® 11 (64-bit), 10 (32/64-bit).
