In addition to the dedicated digital and analog I/O expansion modules, there is also an I/O module for Revolution Pi that has digital inputs/outputs as well as analog inputs/outputs.

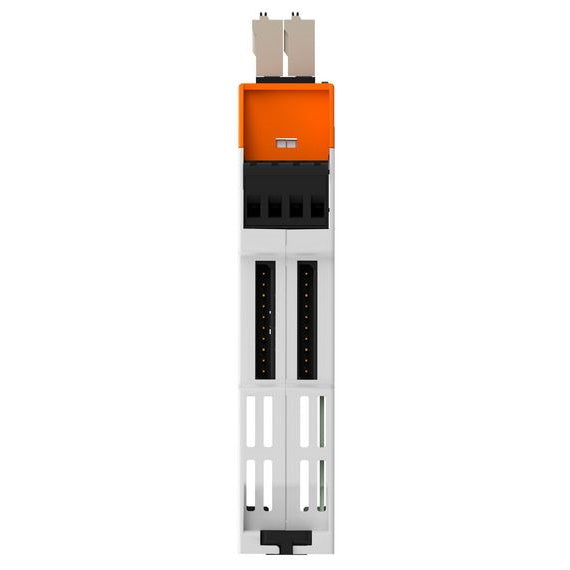

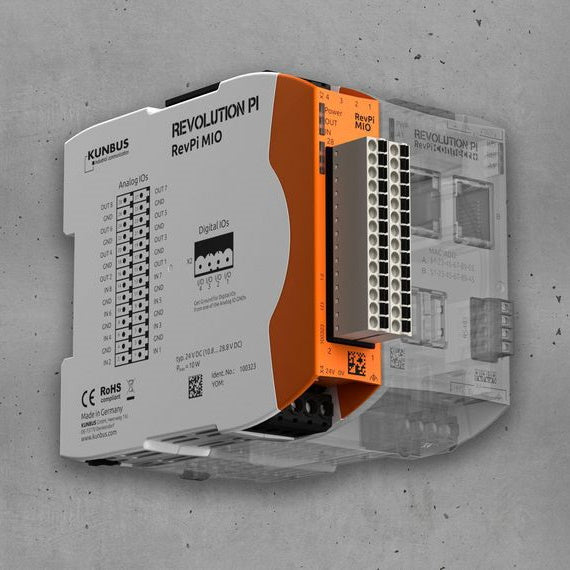

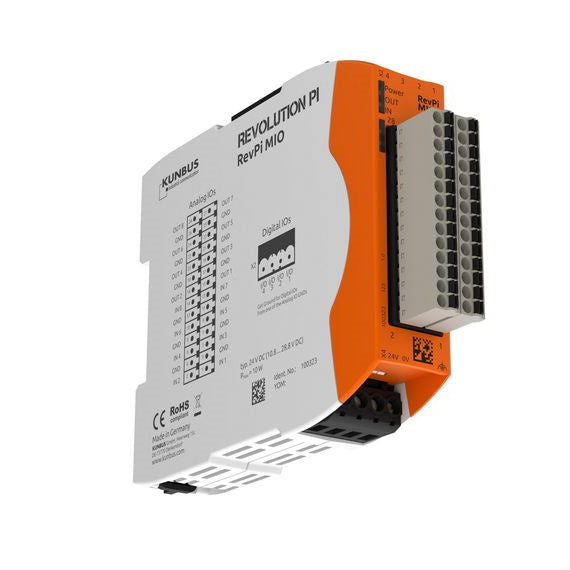

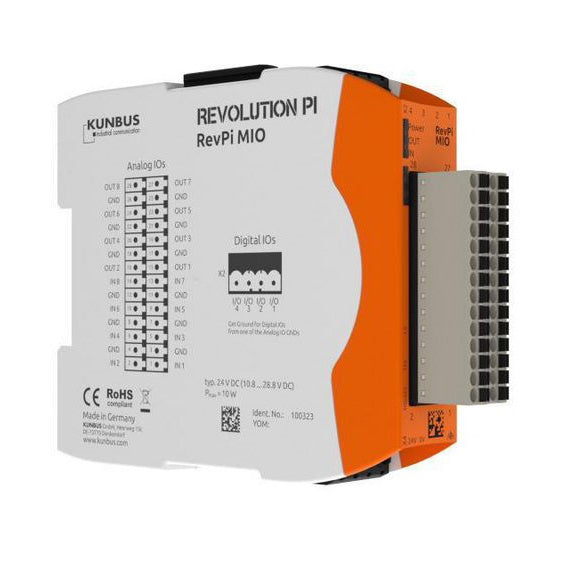

The RevPi MIO adds 8 analog inputs, 8 analog outputs and 4 digital channels to the Revolution Pi system. The digital channels can be individually configured via software either as digital inputs or digital outputs. Like all I/O modules, the RevPi MIO is protected against interference in accordance with the EN 61131-2 standard and can be operated at -20 °C to +55 °C ambient temperature.
Analog Inputs and Outputs

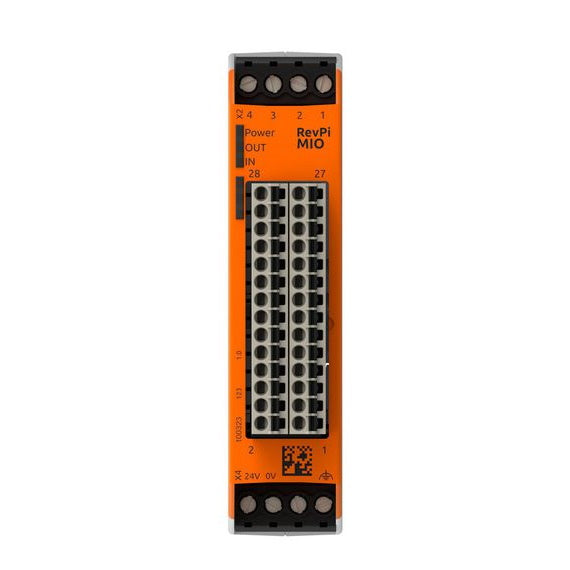

The 8 analog inputs and 8 analog outputs can be connected via the 28-pin terminal connector on the front of the module. Both the inputs and the outputs operate with 0 – 10 V. Variable switching thresholds allow the analog inputs to behave like digital inputs. The switching thresholds can be set for each channel. Each analog input is high impedance with a 100 kΩ input resistor and has a hardware filter with a cutoff frequency of 1.5 kHz. Additionally, each input is protected against ESD pulses by a protection diode.
The analog outputs can also be configured to output a constant, predefined voltage. This allows the analog outputs to be used like digital outputs and logic levels up to 10 V can be used.
Digital inputs and outputs
In addition to its analog inputs and outputs, the RevPi MIO also features 4 digital channels. Each channel can be configured either as digital input or digital output via the Revolution Pi configuration tool PiCtory. Furthermore, the following operating modes can be set: PWM input, pulse measurements, GPI 24 V, PWM output, pulse output & GPO 24 V level output.
- 8 analog inputs and 8 analog outputs can be connected via the 28-pin terminal connector
- Both the inputs and the outputs operate with 0 – 10 V
- Variable switching thresholds allow the analog inputs to behave like digital inputs
- The switching thresholds can be set for each channel
- Each analog input is high impedance with a 100 kΩ input resistor and has a hardware filter with a cutoff frequency of 1.5 kHz
- RevPi MIO also features 4 digital channels
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Standard | EN 61131-2 |
| Housing dimensions (H x B x D) | 96 x 22.5 x 110.5 mm |
| Housing type | DIN rail housing (for DIN rail version EN 50022) |
| Housing material | Polycarbonate |
| Weight | Approx. 115 g |
| IP Code | IP20 |
| Power supply | 24 V DC (10.8 ... 28.8 V DC) |
| Current consumption | 410 mA maximum load |
| Max. power consumption - system | 10 W |
| Operating temperature | -20…+55 °C |
| Storage temperature | -40…+85 °C |
| Humidity (at 40 °C) | 93 % (non-condensing) |
| Interfaces | 8 analog inputs 8 analog outputs 4 digital inputs/outputs |
| Analog inputs | Measurement range: 0…10 V DC Rated voltage: 24 V DC Input impedance: > 100 kOhm ADC type: Single ended Max. overall input error: ±0.3 % (of full-scale range) Sample rate: 8 ms / 125 Hz Resolution: 1 mv (process image) Galvanic Isolation: No |
| Analog input modes | Analog input, logic level input |
| Analog outputs | Output voltage: 0…10 V DC Rated voltage: 24 V DC Output impedance: 30 mA during short-circuit -> 330 Ohm during short-circuit Max. output current: 10 mA 10 V @ 1K DAC type: PWM Sample rate: 30mV peak to peak PWM frequency: 8 ms / 125 Hz Max. overall output error: ±0.3 % (of full-scale range) Data control rate: 1 PiBridge cycle Resolution: 4.48 mV Galvanic Isolation: No |
| Analog output modes | Analog output, logic level output |
| Digital in/outputs | Voltage: 24 V DC Impedance: > 100 kOhm |
| Digital modes | Digital input, digital output, PWM input, PWM output, pulse input, pulse output, encoder input |
| EMC interference emission | According to EN 61000-6-4 |
| EMC immunity | According to EN 61000-6-2 |
| Optical indicator | 3 status LEDs (bi-color), two of them freely programmable |
| RoHS conformity | Yes |
| CE conformity | Yes |
| Datasheet |
| KUNBUS RevPi MIO – Analog & Digital I/O Module Datasheet |
| EU-Declaration of Conformity |
| KUNBUS RevPi MIO EU-Declaration of Conformity |
| RevPi IO expansion modules STEP files |
| STEP files of RevPi IO expansion modules RevPi AIO/DIO/DI/DO/MIO |
