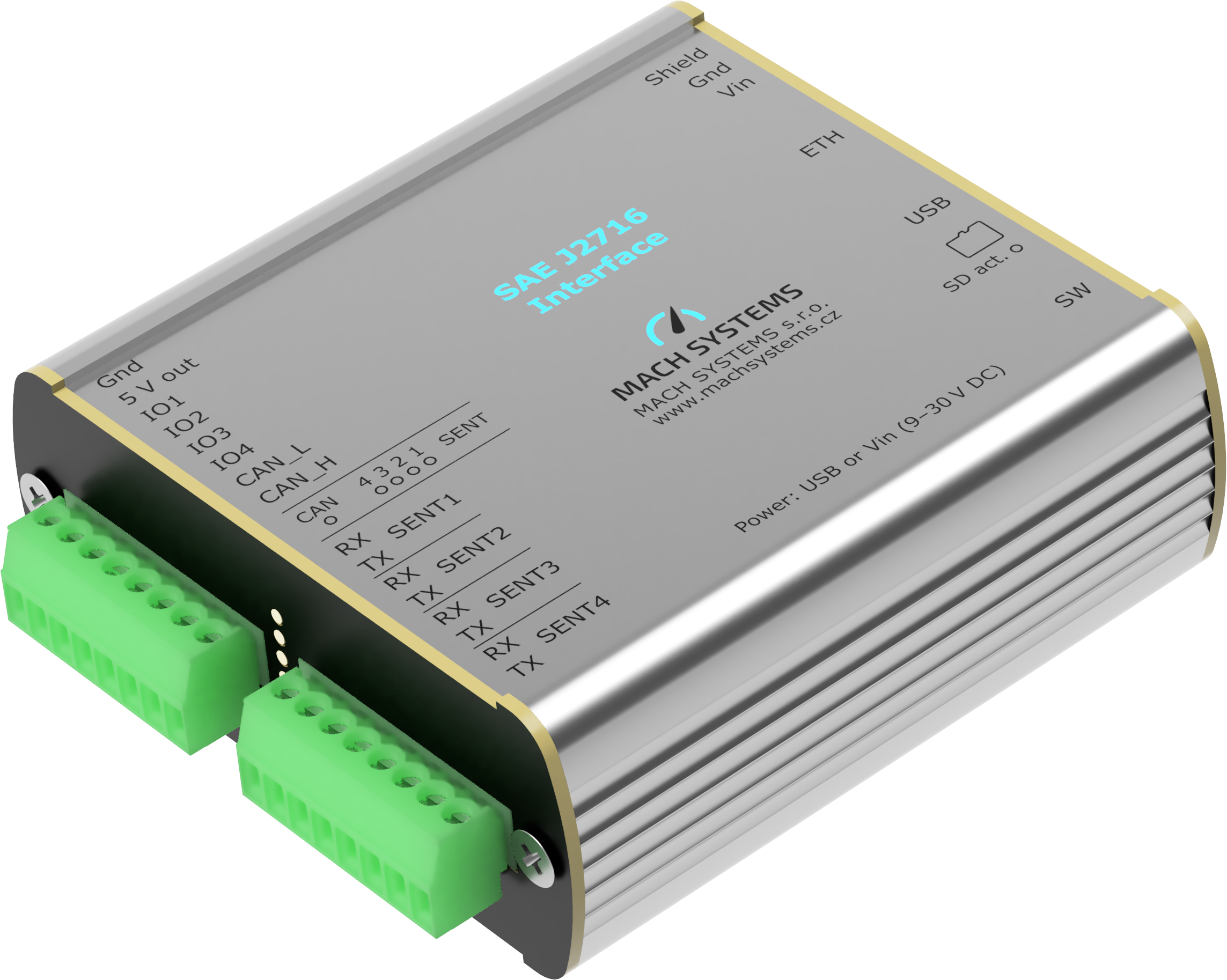

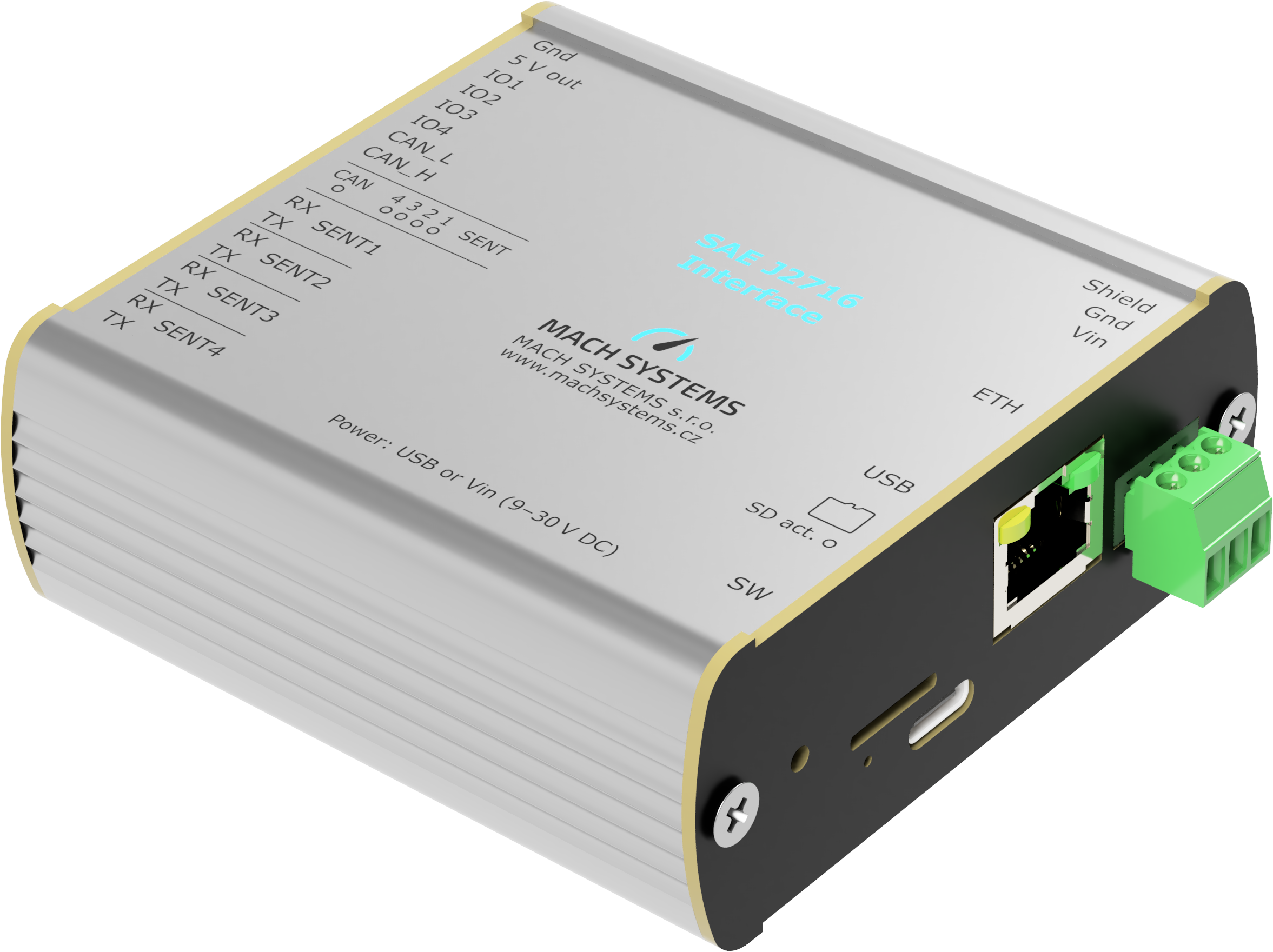

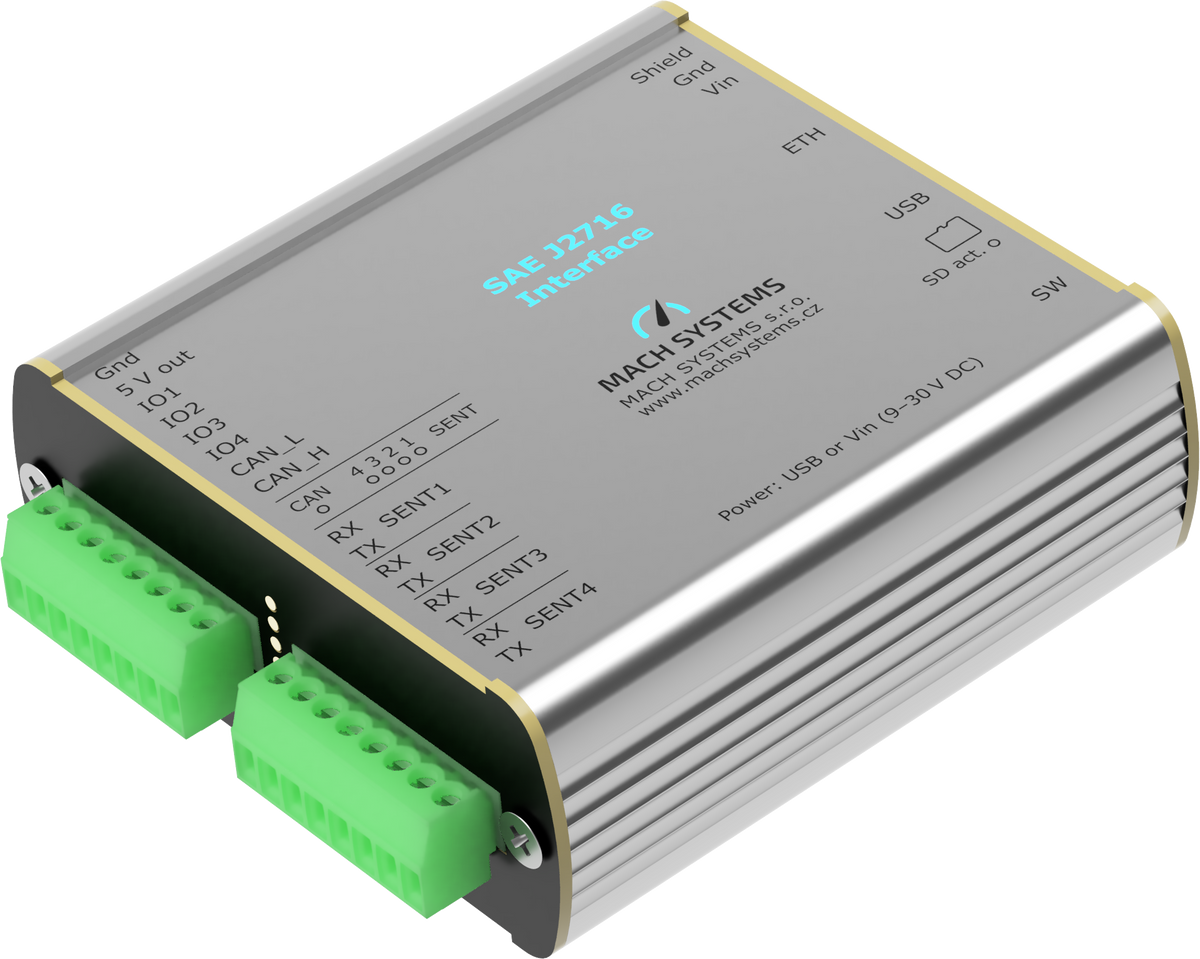

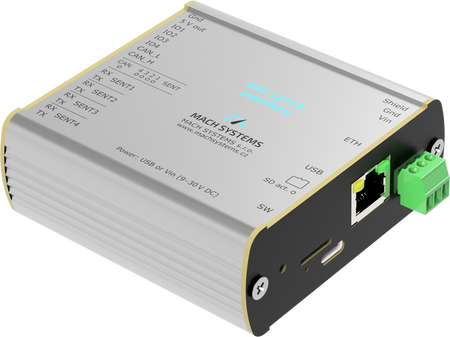

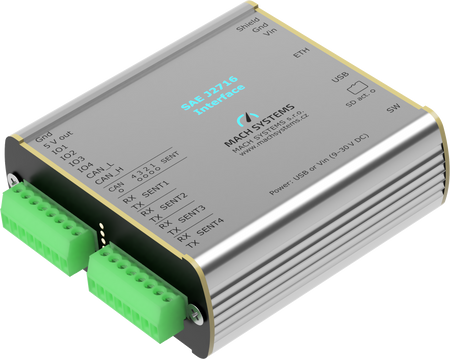

SAE J2716 (SENT) Interface

SKU #: MA-MACH-SENT-ETH
New

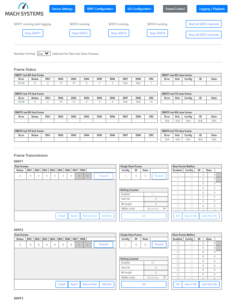

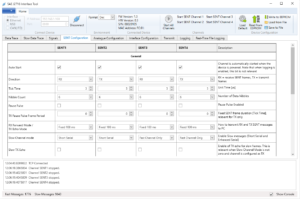

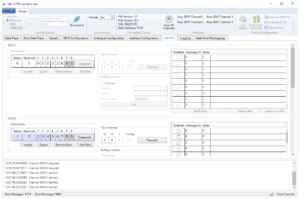

A 4-channel interface, gateway, and a stand-alone data logger for SAE J2716 bus (SENT bus). The converter features 4 SENT channels, 10/100 Ethernet port, CAN(/FD) channel, a USB port, multiple I/Os, and a microSD card slot. A PC application is provided free-of-charge. An open communication protocol for integration is available.

The device may be used as a SAE J2716 interface to Ethernet, USB, CAN(/FD), or its SENT channel can be mapped to the analogue inputs or outputs. The device can even be used as a stand-alone SENT and CAN(/FD) data logger.

Use Cases:

  • SENT<>Ethernet
  • SENT<>CAN(/FD)
  • SENT<>USB
  • SENT<>Analogue
  • Stand-alone SENT data logger
  • USB-CAN(/FD) (can be used simultaneously with other device’s functions)
  •

    Specifications:

    • 4 bi-directional SENT channels
    • Short PWM Code (SPC) support
    • Ethernet (10/100)
    • CAN(/FD)
    • USB 2.0
    • 4 Multi-purpose I/Os (analogue input/output, digital input)
    • MicroSD card slot (stand-alone SENT data logger)
    • Open communication protocol over Ethernet, USB, and CAN(/FD) for integration
    • Can be used as a USB-CAN(/FD) or Ethernet-CAN(/FD) interface
    • USB-powered or external power
    • RTC with battery backup
    • Aluminium enclosure (80 x 82 x 32 mm)
    • DIN rail mounting bracket available
