sysWORXX CTR-100 IoT Chip
Integrate traditional industrial systems with modern IoT networks.
The plug-in System-on-Module possesses pre-programmed function libraries for immediate use and is fully customizable for users to develop their own programs. The IoT chip integrates advanced sensor-to-cloud capabilities with robust data pre-processing features. The CTR-100 is compatible with cloud services and ideal for use in Industry 4.0 applications.
The sysWORXX CTR-100 is easy to integrate for use in Internet of Things/Industry 4.0 applications and the connecting devices/machines to the cloud as these fields require. Like every of our devices the CTR-100 is prepared for the direct connection to Cloud.

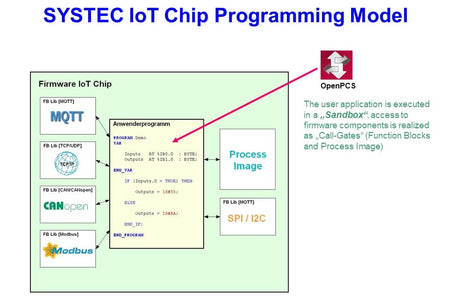

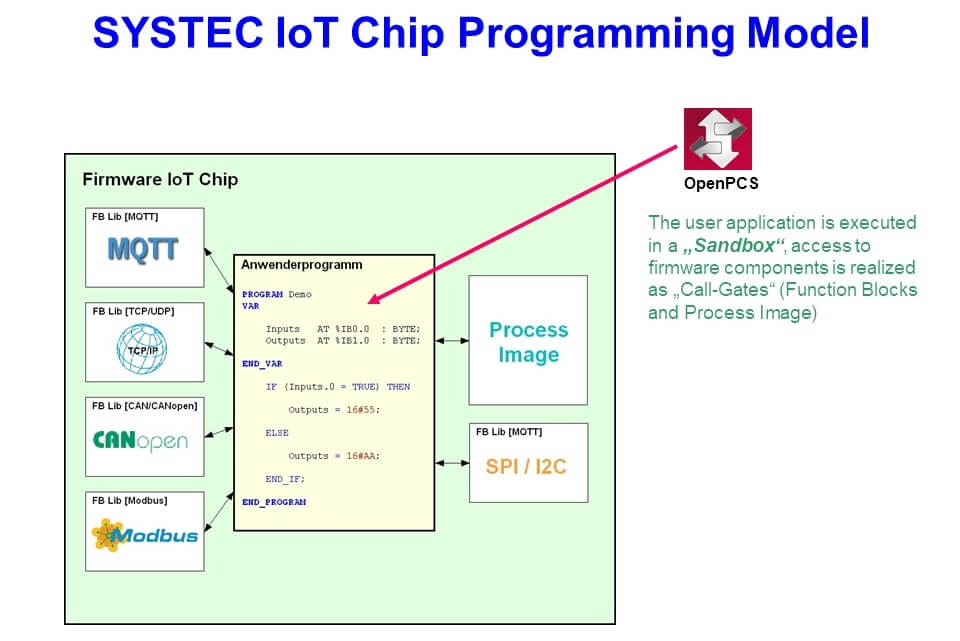

The benefits of the SYS TEC electronic CTR-100 lie in its use, security and cloud connection. On the chip are libraries and protocols such as MQTT, Modbus or CANopen which are ready to use immediately.

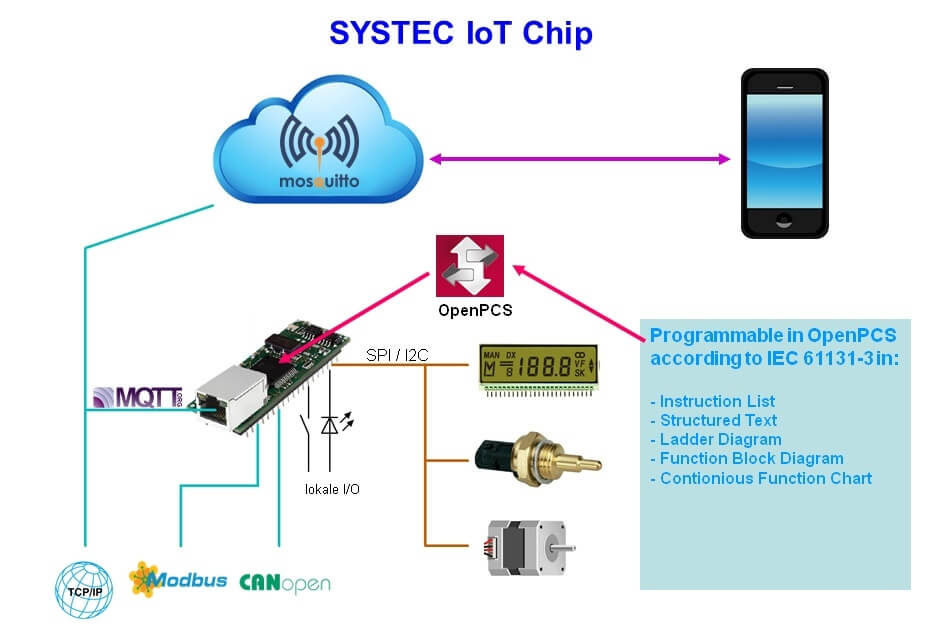

The templates supplied in the source code are available to users as a starting point for their own customization. I²C and SPI make it possible to directly connect actuators and sensors.This allows the entire measurement, control and regulation to be handled on the CTR-100. As a result, the chip works independently of the cloud. There is no additional gateway required for cloud connection.
Our sysWORXX CTR-100 delivers M2M communication at the highest level, as well as being efficient and available at a moderate cost.
Available Product Packages:

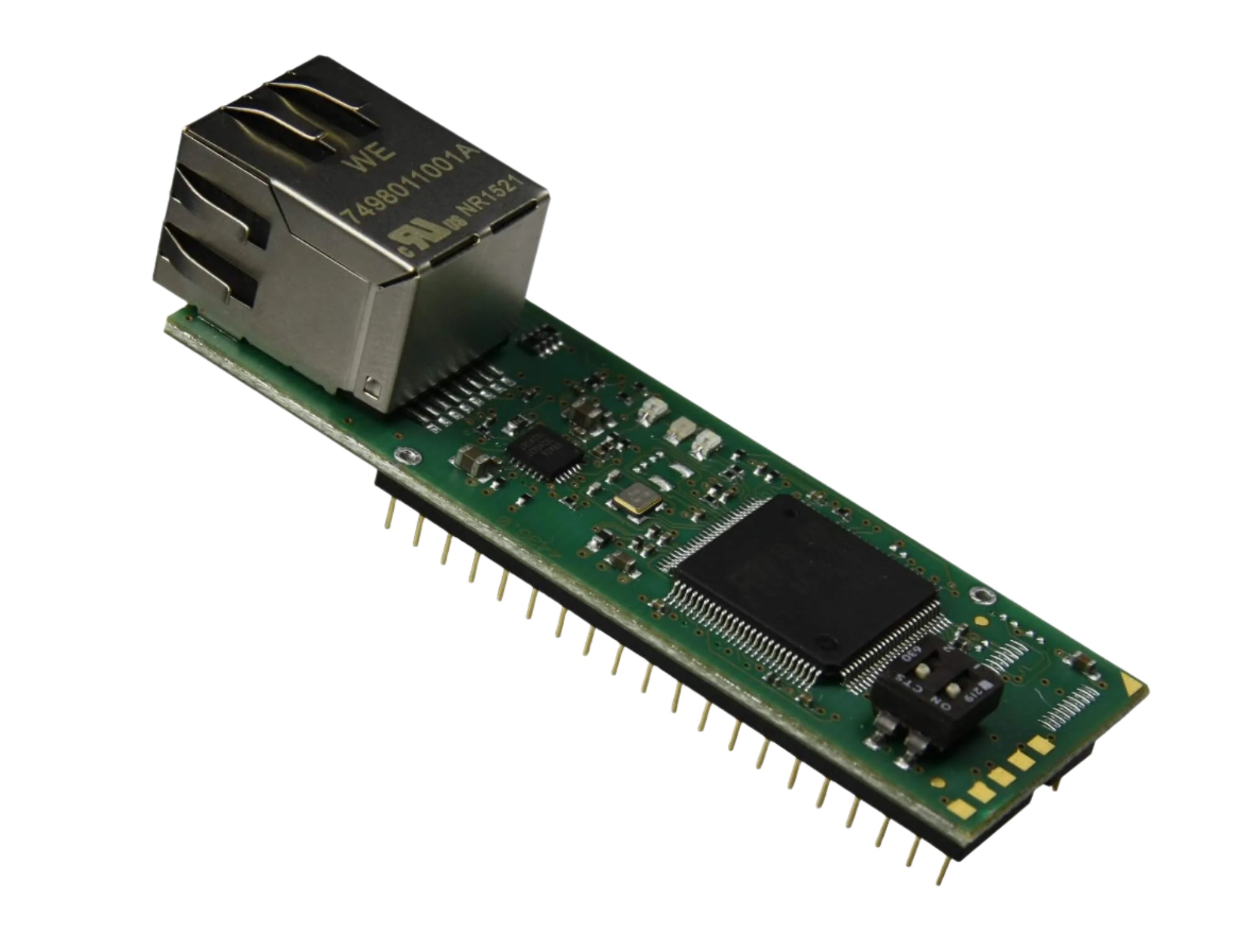

- SYS-3390100 : sysWORXX CTR-100 DIL40
- SYS-3390101 : sysWORXX CTR-100 LGA

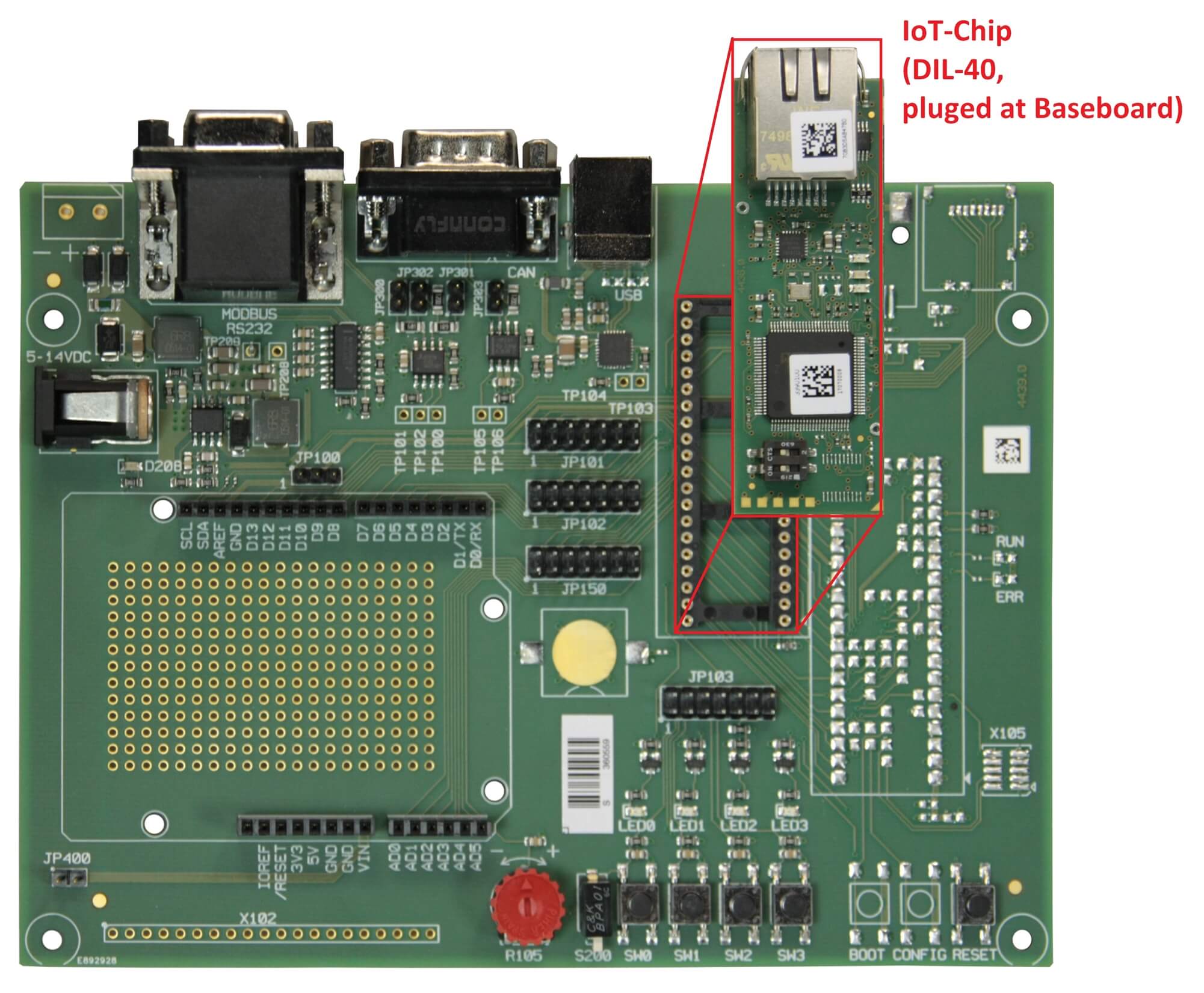

- SYS-KIT-175 : Development Kit sysWORXX CTR-100 DIL40
- SYS-KIT-176 : sysWORXX meshnet Kit CTR-100 DIL40
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Controller / Core Architecture: | STM32F767 / ARM 32-bit Cortex™-M7 |
| Frequency (internal): | 200MHz |
| Application memory: | 128kB for PLC user application |
| Ethernet: | 1x 10/100Mbps, on-board PHY + RJ45 plug |
| CAN: | 1 |
| UART: | 3 |
| SPI: | 1 |
| I2C: | 1 |
| PWM: | 2 |
| Analog Output: | 2 |
| Analog Input: | 4 |
| Digital Output: | up to 13 |
| Digital Input: | up to 15 |
| Fast Counter: | 1 |
| Board-to-board connectors: | DIL-40 socket or LGA |
| Operating System: | SmartPLC by infoteam |
| Programming Interface: | Ethernet |
| Programmable in: | IEC 61131-3 |
| Power Supply: | 3.3V +/-5% |
| Operating Temperature: | 0ºC … +70ºC |
| Optional: | |
| LCD Display: | via SPI or I2C |
| SD Card: | sysWORXX CTR-100 DIL40:on-board socket. sysWORXX CTR-100 LGA: SD card signals led out for connection / integration of an external SD card slot on customer-specific baseboard |
| RTC: | sysWORXX CTR-100 DIL40: no battery backup sysWORXX CTR-100 LGA: available |
| RoHS compliant: | yes |
| Brochure |
| sysWORXX CTR-100 Brochure |
| Manual |
| Flyer weatherstation to build on your own |
| IoT brochure (Whitepaper) |
| IoT brochure (Whitepaper) |
Choose Phytools for Innovative Industrial Automation Solutions
Phytools is an official distributor of SYS TEC products, providing the best industrial automation and networking solutions to a range of industrial sectors. With over 25 years of experience, our experts are keen to help you find the right solution for your unique requirements.
sysWORXX CTR-100 IoT Chip FAQs
What are the common applications of the CTR-100 IoT chip?
The CTR-100 is suitable for a wide range of use cases from small-scale automation tasks to complex IoT systems. It is a versatile industrial controller designed primarily for Industrial IoT (IIoT) applications, such as:
- Industrial Automation - Control and monitor machinery plus integrate legacy equipment with IoT systems.
- Smart Factories - Collect data and analytics for predictive maintenance and resource optimisation in real time.
- Supply Chain & Logistics - Create automation systems for smart warehouses and monitor logistics operations in real time.
Which communication protocols does the sysWORXX CTR-100 support?
The CTR-100 IoT chip supports a range of communication protocols such as MQTT, Modbus, OPC UA, and CANopen for seamless integration in industrial systems. Furthermore, the source code contains templates and examples for you to develop your own application.
What makes this IoT chip reliable?
The CTR-100 is built to handle demanding industrial environments with robust hardware offering a consistent performance. The IoT chip is energy-efficient and therefore designed to be cost-effective in the long term. Plus, local data processing and decision-making reduce the need for constant cloud communication lowering latency and increasing reliability.
How does the sysWORXX CTR-100 IoT chip facilitate predictive maintenance?
The sysWORXX CTR-100 IoT chip enables predictive maintenance by integrating real-time data acquisition, advanced signal processing, and cloud connectivity into a single, compact System-on-Module. By leveraging machine learning models hosted in the cloud, the CTR-100 identifies patterns, trends, and anomalies in operational data, enabling the early detection of potential equipment failures. A combination of local intelligence and cloud-based analytics helps to optimise asset performance, minimise downtime, and extend equipment lifespan.
How do I choose the right IoT chip for IIoT?
When selecting an IoT chip for Industrial IoT, there are several key factors to consider. Processing capabilities are essential to ensure efficient real-time data handling and analytics. Connectivity options should include support for industrial protocols like MQTT, OPC UA, or Modbus. Ease of development, supported by robust software libraries and tools, ensures streamlined implementation. Finally, be sure to choose a solution that is scalable, efficient, and compatible with your existing systems.
