sysWORXX Pi-AM62x

The powerful solution for your upstream software development.

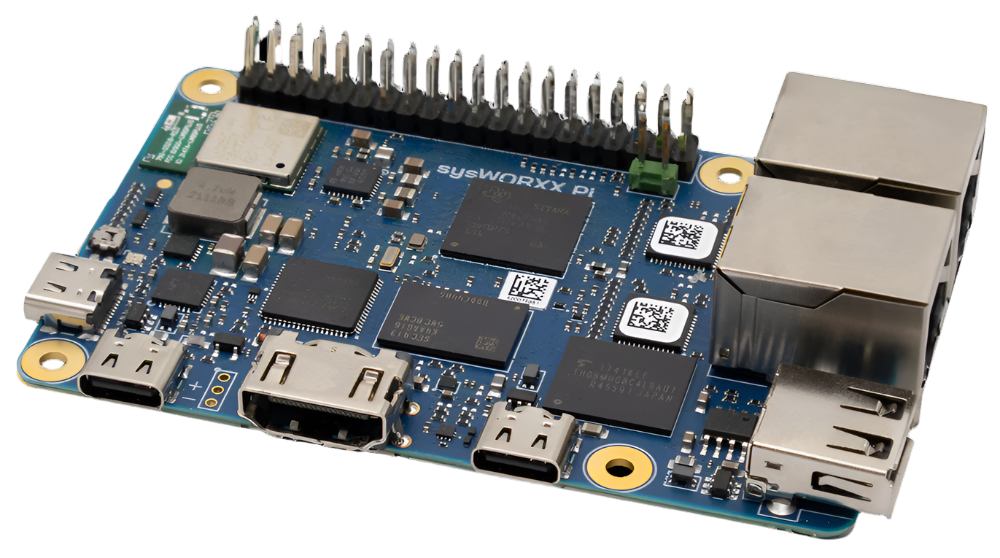

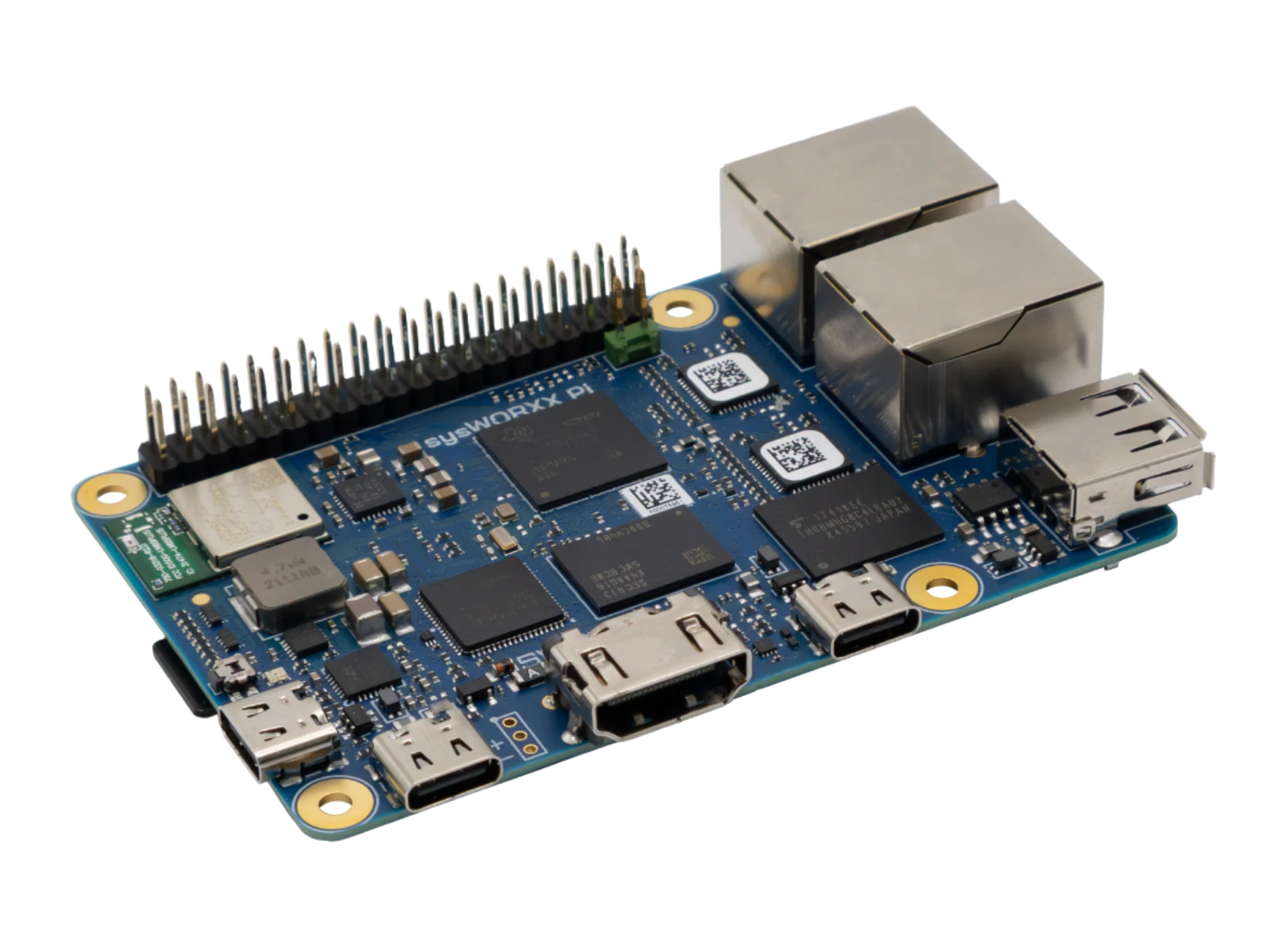

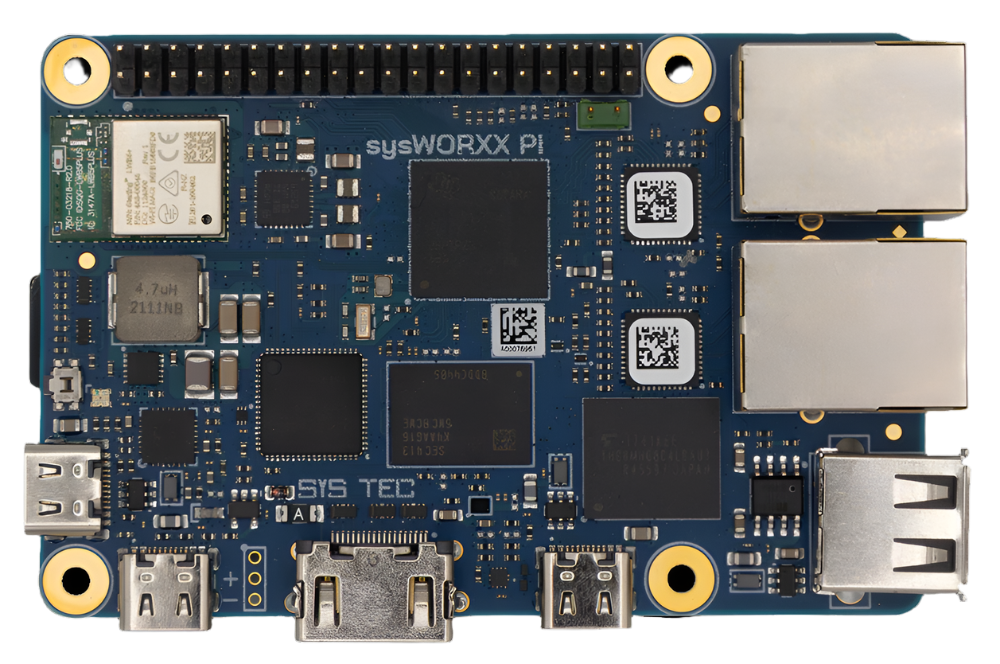

Industrial connectivity right on board. The sysWORXX Pi-AM62x is a powerful single board computer (SBC) for industrial applications, designed as an evaluation platform for our sysWORXX ECUcore-AM62x (SoM). It provides the perfect environment for testing hardware and software concepts in industrial networks and is fully embedded in the sysWORXX technology platform.

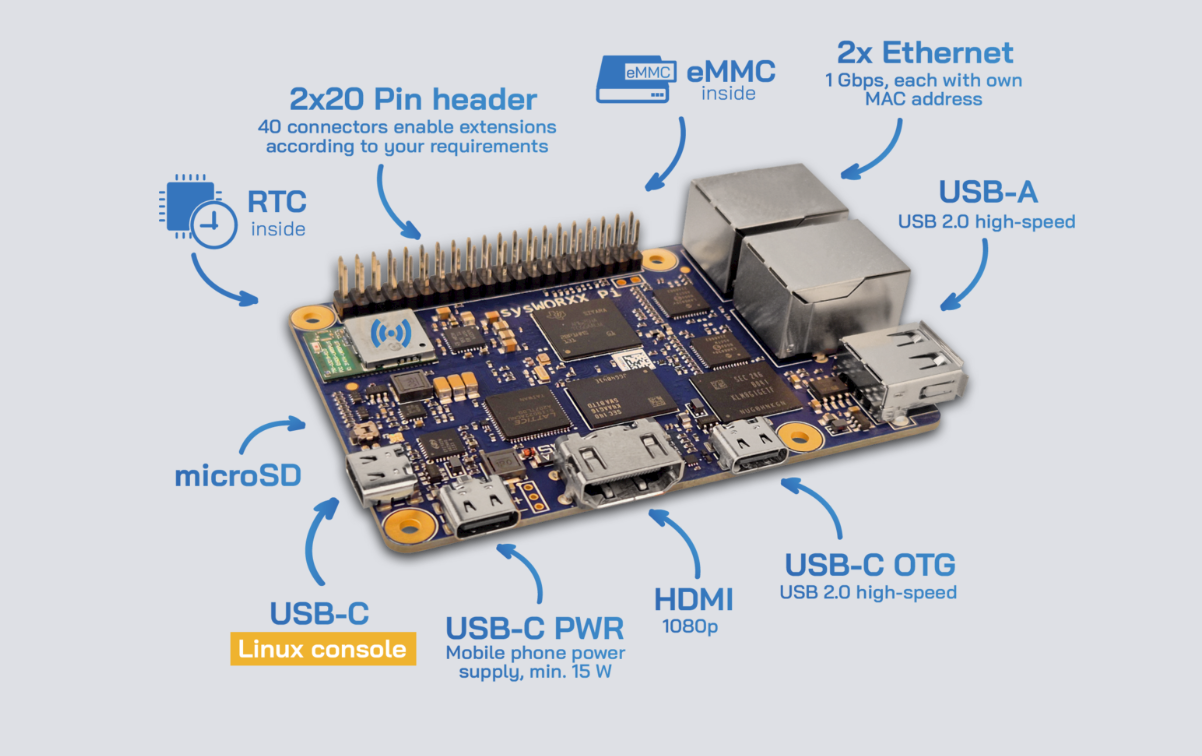

Dual Ethernet for maximum network flexibility:

• Separation of IT and OT networks (e.g. MQTT, OPC UA, Modbus/TCP, EtherCAT)
• Security architectures with gateway/firewall functionality
• Network monitoring and intrusion detection in the production network
• Real-time capable communication with industrial protocols (e.g. Profinet, EtherCAT)

Further highlights:

• USB, SIO, CAN and configurable GPIOs for easy peripheral integration
• Optional eMMC memory - robust & durable, ideal for industrial applications
• On-board RTC - for precise time stamps and synchronous process control

The sysWORXX Pi-AM62x enables fast and reliable validation of your system architecture - whether as a prototype, proof-of-concept or hardware-in-the-loop test platform.

• Entry into embedded Linux and network technology
• GPIO access for your own hardware developments
• Compatible with software solutions from the CTR controller series

Supported software and development environments:

• Freely programmable with C/C++, Rust, C#, Python
• Node-RED incl. sysWORXX node for low-code access to I/Os
• Support for CODESYS and OpenPCS
• RAUC framework for secure over-the-air updates
• Support for Docker for containerized applications
