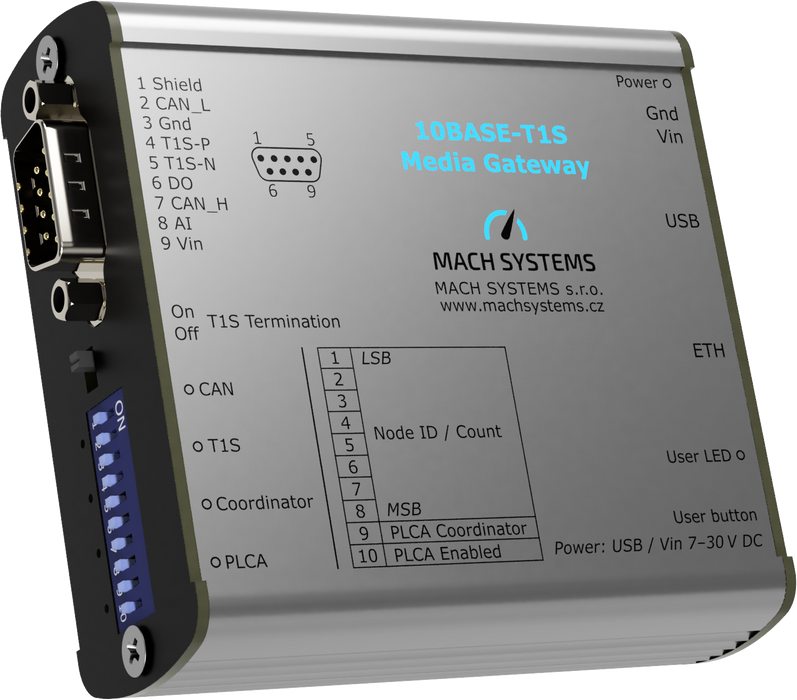

The device offers one 10BASE-T1S port, one Fast Ethernet port, a CAN channel with CAN FD support, and a USB 2.0 port.
The media gateway can be used as a 10BASE-T1S – Ethernet switch (media converter) enabling a bi-directional communication between the 10BASE-T1S port, the standard Ethernet port, and the MCU, or as an Ethernet-CAN(/FD) gateway providing a data bridge between the Ethernet ports (10BASE-T1S and 100BASE-TX) and the CAN(/FD) channel. Gateway function for bridging a 10BASE-T1S network and a CAN/CAN FD bus can be configured over the embedded web server. The device can also be used as a USB to CAN(/FD) and an Ethernet – CAN(/FD) interface.
The Single-Pair Ethernet 10BASE-T1S port supports both CSMA/CD and PLCA modes and allows for point-to-point and multi-drop network topologies. The port configuration, such as mode, BEACON transmission (PLCA coordinator), Node ID / Node count, and bus termination, can be easily set by on-board DIP switches.
*Firmware bug fix: Firmware v1.2 (for upload over web) – fixes: CAN(/FD) – Ethernet gateway function.
- 10BASE-T1S Automotive Ethernet switch
- 10BASE-T1S – CAN(/FD) gateway
- On-board switches for basic configuration
- Embedded web server for advanced configuration and status information
| Data Sheet |
| User's manual |
| Communication Protocol Specification |
| Measurement of device delays |
*On certain 10BASE-T1S Media Gateways, the Link and Activity LEDs on the RJ-45 connector may not function properly.
The primary symptom is that the green Link LED remains permanently on regardless of the actual link status.
To resolve this issue, please desolder the R18 resistor located on the bottom side of the PCB.
