- Management of all settings, information, and files in projects
- Exporting entire projects including linked files to handy packets for archiving or sharing
- Extensive revision of the user interface with improved dialogs for creating transmit messages and managing signals
- Automatic notification about new software versions and support with the update process
- Integrated text editor with syntax highlighting for creating and editing of symbol files, macros and VBScript
- User interface language can be switched (German/English)
- Integration of add-ins to upgrade functionality
- Simultaneous connections with multiple CAN interfaces independent of the hardware type
- Support for CAN specifications 2.0 A/B and FD
- CAN bit rates (nominal) up to 1 Mbit/s
- Data bit rates up to 12 Mbit/s (only when using a CAN FD interface)
- Optional use of custom bit rates
- Listen-only mode can be activated
- Clear overview of connections with their bit rate, status, error counter, and bus load
- Function to execute a hardware reset of the CAN controller
- Representation of the CAN data traffic in sortable receive and transmit lists with configurable columns display
- Display of messages showing the ID, length, data bytes, time-outs, number of messages received, and receiving interval
- Display of error frames can be activated for each connection
- Representation of CAN IDs in hexadecimal or decimal format
- Display of receive, transmit, and error states
- Message reception with a maximum resolution of 100 µs
- Manual and periodic transmission of messages with a maximum resolution of 1 ms
- Transmission of CAN messages in response to remote frames (only with CAN 2.0 A/B)
- Messages can be grouped as transmit lists, stored and loaded as desired, e.g. in order to emulate CAN nodes
- Multiple flexible filters can be configured and, for example, assigned to the transmit/receive window or to various different tracers
- Logging of the CAN data traffic along with the errors that have occurred as an option
- Playback of trace files with optional loop function
- Operation of multiple tracers at the same time
- Representation of the logged messages with details such as time stamp, type, ID, length, and data bytes
- Representation of the data bytes in hexadecimal, decimal, or ASCII format
- Filtering of the messages for logging through message filters
- Recording of CAN data traffic directly to files or to the RAM (in linear, dynamic, or circular buffer mode)
- Playback of logged CAN messages directly from files or the buffer
- Storing of the logged data to readable text files or CSV files for further processing in Excel or similar
- Enhanced processing of huge trace files compared to PCAN-Explorer version 5
- Subsequent examination of the logged data in the buffer via different symbol files
- Clear and readable representation of CAN messages based on the symbol format from PEAK-System:
- Easy allocation of CAN messages by assigning alphanumeric names
- Bit-exact division of the data into variables for assigning names, data type, etc.
- Comfortable symbol file creation with the supplied Windows® software PCAN-Symbol Editor or with the integrated text editor
- User-friendly real-time monitoring of several signals via the Watch window
- Graphical display of up to 4 signals with a simple line writer (Line Writer Add-in)
- Automation of small tasks or complex processes with macros or VBScript like for example:
- Test procedures for the implementation or development of CAN systems
- Send an e-mail if a temperature is exceeded
- Start an action when a particular message is received
- Open an Excel sheet when an event occurs and save the data in individual cells
- Calculate variables from the data of incoming CAN messages
- Creation of macros and scripts with the integrated text editor
- Assignment of function keys to individual macros
- Access with VBScript to almost all program elements via the PCAN-Explorer object model
- VBScript macros also run in the background even without the PCAN-Explorer interface
Â
Delivery contents:

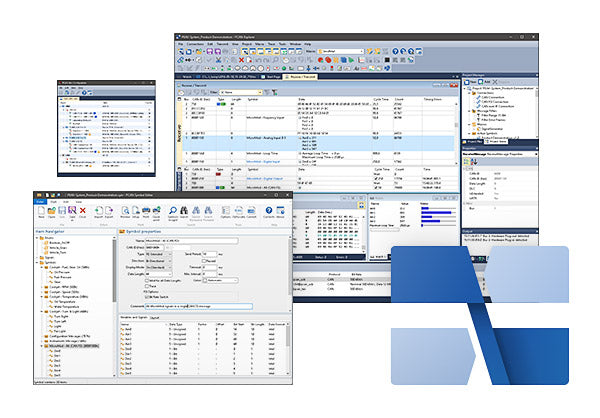

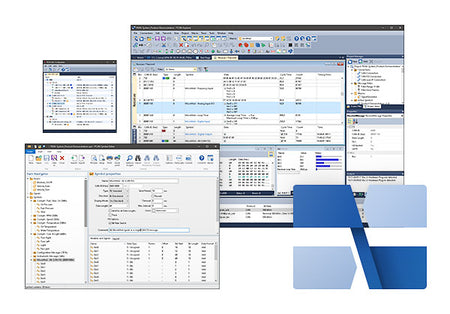

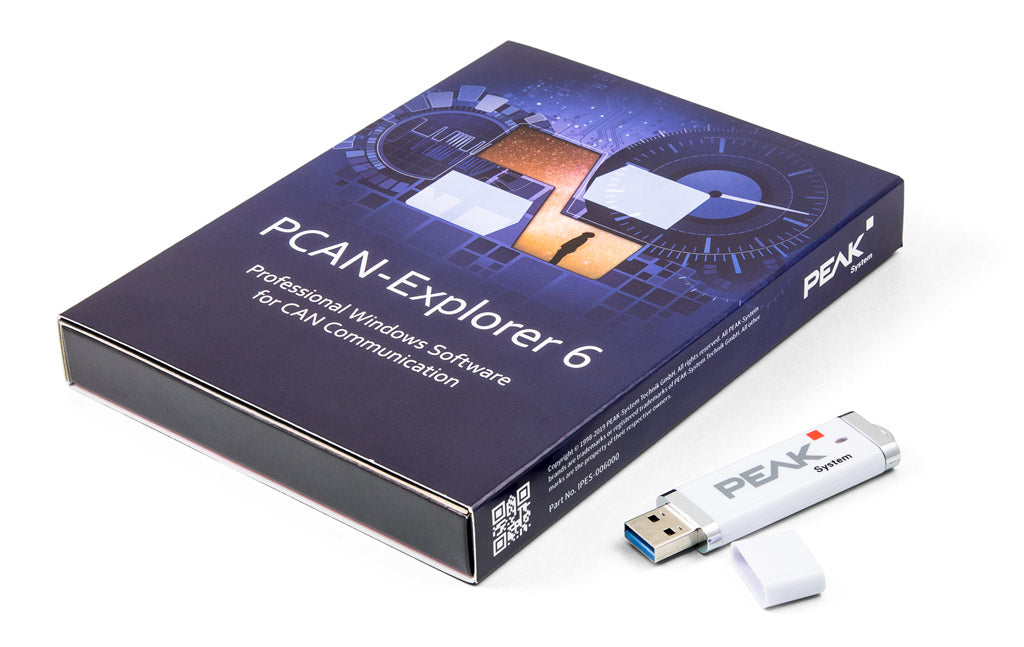

- PCAN-Explorer installation CD
- Portable license with USB copy protection dongle
- PCAN-Symbol Editor for Windows® Details ...
- Documentation in HTML help format
System requirements
- Windows® 10, 8.1, 7 (32/64-bit)
- At least 2 GB RAM and 1.5 GHz CPU
- For the CAN bus connection: PC CAN/CAN FD interface from PEAK-System
- Free USB port for copy protection dongle (only for portable license)
| Available as 30 day trial version. Request free 30 day trial. |
