CANvision Protocol Monitor

SKU #: PR-22570-00
by GEMAC

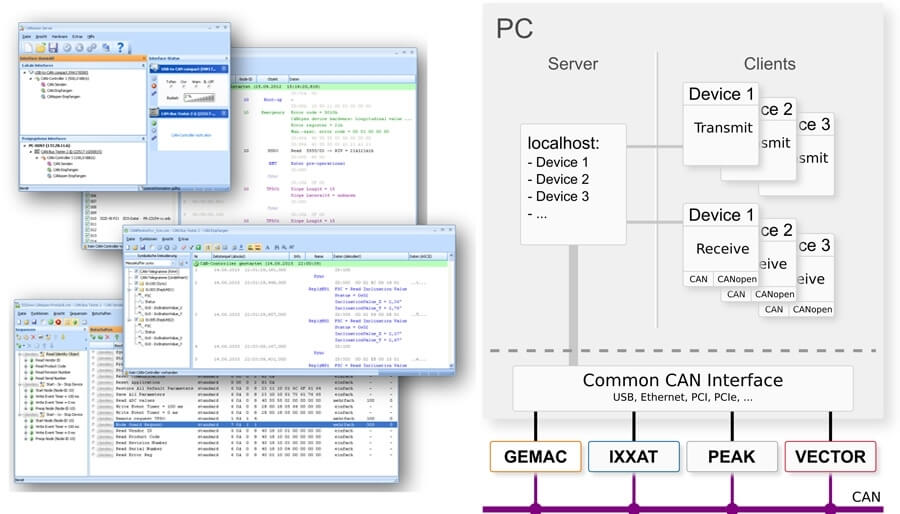

CANvision® - Protocol monitor is an efficient software tool for the development, analysis and monitoring of CAN bus systems. Its client/server architecture provides an intuitive and scalable offering along with remote monitoring.


  • Support of various CAN interfaces (GEMAC, IXXAT, PEAK, Vector)
  • Simultaneous use of multiple CAN interfaces possible
  • Display of bus load, as well as transmission, reception and error conditions
  • Display of CAN messages in “Scroll” or “Overwrite” mode
  • Adjustable filter and trigger conditions
  • Single and cyclic transmission of CAN messages and sequences (transmit lists)
  • Save and export of the recorded CAN messages
  • Share CAN interfaces on the network (automatic detection via Bonjour service)
  • Built-in symbolic decoding of CAN messages
  • optional "CANopen Receive" add-in available
  • optional "J1939 Receive" add-in available
  • USB dongle is required for full functionality and included in the software purchase
Property Value
The information herein is subject to change without notice.
Processor at least 2.0 GHz (2.4 GHz dual core recommended)
Memory at least 512 MB RAM (1 GB recommended)
Graphics Card with 24-bit color depth (32-bit recommended)
Resolution 1024x768 pixels or higher
Supported Operating Systems
  • Microsoft Windows® XP
  • Microsoft Windows® Server 2003
  • Microsoft Windows® Vista (32 bit and 64 bit)
  • Microsoft Windows® 7 (32 bit and 64 bit)
  • Microsoft Windows® 8.1 (32 bit and 64 bit)
Supported CAN Hardware/Interfaces
  • GEMAC CAN-Bus Tester 2
  • PEAK PCAN (e.g. PCAN-USB, PCAN-PCI)
Product Datasheet
CANvision - CANopen Receive Datassheet
Manual
CANvision - CANopen Receive Users Manual
Product Overview
Product Overview Video
CANvision-Protokollmonitor
CANvision-Protokollmonitor Version 1.3.4.3 (2020-11-12)
A dongle is required for full functionality.
