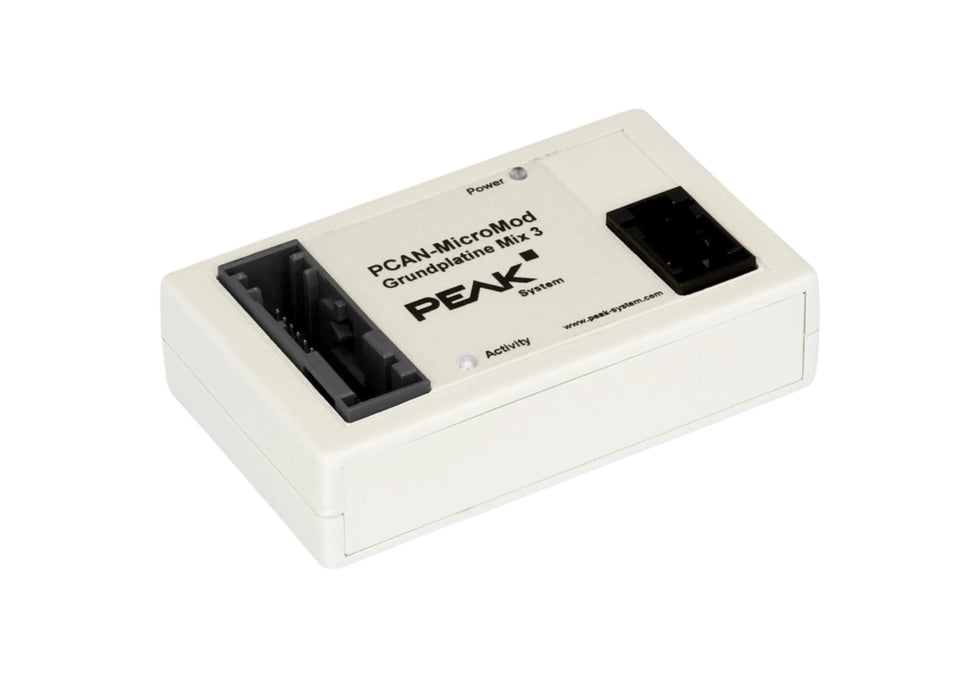

PCAN-MicroMod Mix 3
SKU #: IPEH-002206
Save 11%
The motherboards for the PCAN-MicroMod provide an application-oriented environment. Typical characteristics of this product group include a wide supply voltage range and the protective circuit for the inputs and outputs. CANopen® firmware is available for all PCAN-MicroMod motherboards. The Mix 3 motherboard allows the use of all inputs and outputs available on the PCAN-MicroMod, which opens up a wide range of potential applications in the automotive and industrial sectors.
- Completely configurable using the Windows® software PCAN-MicroMod Configuration
- Communication through High-speed CAN
- Operating voltage 12 V DC nominal, 8 - 26 V possible
- Plastic casing with Tyco automotive connectors
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
8 analog inputs with the following properties:
- Measuring range unipolar 0 – 4.1 V (can be expanded using resistive dividers)
- Resolution 10 bit, sample rate 1 kHz
- Protection against voltage dips and surges
- Low pass behavior
8 digital inputs with the following properties:
- Schmitt trigger behavior (Vh = 4 V, Vl = 2,5 V)
- Voltage level difference 5 - 18 V
- Pull-up or pull-down switching can be set for each channel
- Low pass behavior
4 frequency inputs (differences to the digital inputs):
- Scanned frequency range 0 – 10 kHz
8 digital outputs with the following properties:
- High-side drivers, 350 mA continuous current, 500 mA short-circuit current
- 4 outputs switchable in low-side drivers, 700 mA continuous current, 1 A short-circuit current
- Short-circuit protection
4 PWM/frequency outputs with the following properties:
- Low-side drivers, 350 mA continuous current, 1 A short-circuit current
- 2 outputs switchable to high-side drivers, 1,5 A continuous current, 5 A short-circuit current
- Short-circuit protection
| Power Supply | Voltage supply VBat motherboard: 12 V DC nom., 8 - 26 V possible Voltage supply VHSout high-side drivers: 12 V DC nom., 8 - 33 V possible Current consumption: 60 mA at 12 V on VBat (all outputs passive) |
| Digital Inputs | Count: 8 Input voltage Low: < 3.2 V Input voltage High: > 4.0 V Maximum input voltage: 18 V Circuit: open (130 kΩ, weak pull-down), pull-up (4.7 kΩ), pull-down (4.7 kΩ) Further properties: Schmitt trigger behavior, inverting |
| Digital Outputs | Count: 8 Circuit: High-side switch, 4 outputs alternatively configurable as low-side switch, Short circuit protection Constant current: High-side: max. 350 mA; Low-side: max. 700 mA Short-circuit current: High-side:500 mA; Low-side: 1 A |
| Analog Inputs | Count: 8 Measuring range: 0 - 4.1 V, unipolar, extensible through voltage divider with resistors Resolution: 10 bit Input impedance: 100 kΩ (at measuring range 4.1 V) Source impedance: < 5 kΩ Sample rate: 1000 samples/s Low-pass: τ = 2.5 ms Further properties: Pull-down circuit, Protection against under voltage and over voltage |
| Frequency/PWM outputs | Count: 4, can be used as 4* PWM outputs 8-bit, or 2* PWM outputs 16-bit, or 2* frequency outputs Circuit: Low-side switch, 2 outputs alternatively configurable as high-side switch, short circuit protection Constant current: Low-side: max. 350 mA; High-side: max. 1.5 A Short-circuit current: Low-side:1 A; High-side: 5 A Maximum frequency: Low-side: 10 kHz; High-side: 1.5 kHz |
| CAN | Transmission standard: High-speed CAN ISO 11898-2, typ. 500 kbit/s, setup with PCAN-MicroMod Configuration (Windows software) Termination: none CAN ID reserved for configuration transfer: 0x7E7 Module number at delivery (for configuration transfer): 0 |
| Dimensions | 100 x 60 x 27 mm, see User's Manual for more details - Casing size (incl.connectors) |
| Weight | 100 g |
| Operating temperature | -40 - +85 °C (-40 - +185 °F) |
| Storage temperature | -40 - +100 °C (-40 - +212 °F) |
| Relative humidity | 15% to 90% (non-condensing) |
| Ingress protection (IEC 60529) | IP20 |
| EMC | DIN EN 61326-1:2008-06, EC directive 2004/108/EG |
| PCAN-MicroMod Mix 3 manual |
| User's Guide in English |
| PCAN-MicroMod CANopen® firmware manual |
| CANopen Firmware Manual in English |
| PCAN-MicroMod package |
| The package includes the configuration software PCAN-MicroMod Configuration for Windows®, the latest PCAN-MicroMod and the CANopen® firmware, all files for development, and documentation (German and English) |
| PCAN-MicroMod Configuration |
| PCAN-MicroMod Configuration software for Windows® 10, 8.1, 7 (32/64-bit) |
