PCAN-MIO (Industrial/Automotive)
SKU #: IPEH-002187-I, IPEH-002187-A, IPEH-002187-I-Set, IPEH-002187-A-Set
Universal Controller for CAN Applications
The Multiple Input Output Module (MIO) is a universal, modular controller for use both in the industrial and automotive fields.
The module has two CAN interfaces as well as multiple analog and digital inputs and outputs. Incoming signals can be processed by the microcontroller and then forwarded to the CAN interfaces or output channels. For this purpose, the behavior of the PCAN-MIO Module can be freely configured using a comprehensive Windows® software. A large number of function blocks and other settings are available to help the user in creating such a configuration.
A bus structure also enables expansion of the number of inputs and outputs with additional modules. Customer-specific requirements can be implemented in doing so.
Scope of supply PCAN-MIO
- PCAN-MIO in aluminum casing including mating connectors
- Configuration software PPCAN-Editor 2 for Windows® Details ...
- Manual in PDF format
Scope of supply PCAN-MIO Set
- PCAN-MIO in aluminum casing including mating connectors
- CAN interface PCAN-USB
- Configuration software PPCAN-Editor 2 for Windows® Details ...
- Manual in PDF format
- 2 High-speed CAN channels via plugable transceiver modules. Alternatively, Low-speed, Single-wire, and opto-decoupled High-speed modules, as well as High-speed modules without wake-up function available
- Wake-up function using separate input or CAN bus
- CAN termination switchable
- 8 digital inputs with low-pass performance
- 8 digital outputs, 2 of these with PWM capability
- 6 analog inputs, measuring range unipolar 0 - 10 V, (resolution 10 bit, sample rate 1kHz)
- 2 analog outputs (10 bit, 0 - 10 V)
- Suitable for use in the automotive field
- Detailed configuration with the software PPCAN-Editor 2 for Windows®
- Module can store up to 15 configurations
- CAN gateway between buses
- Individual function blocks for data linkage and data modification

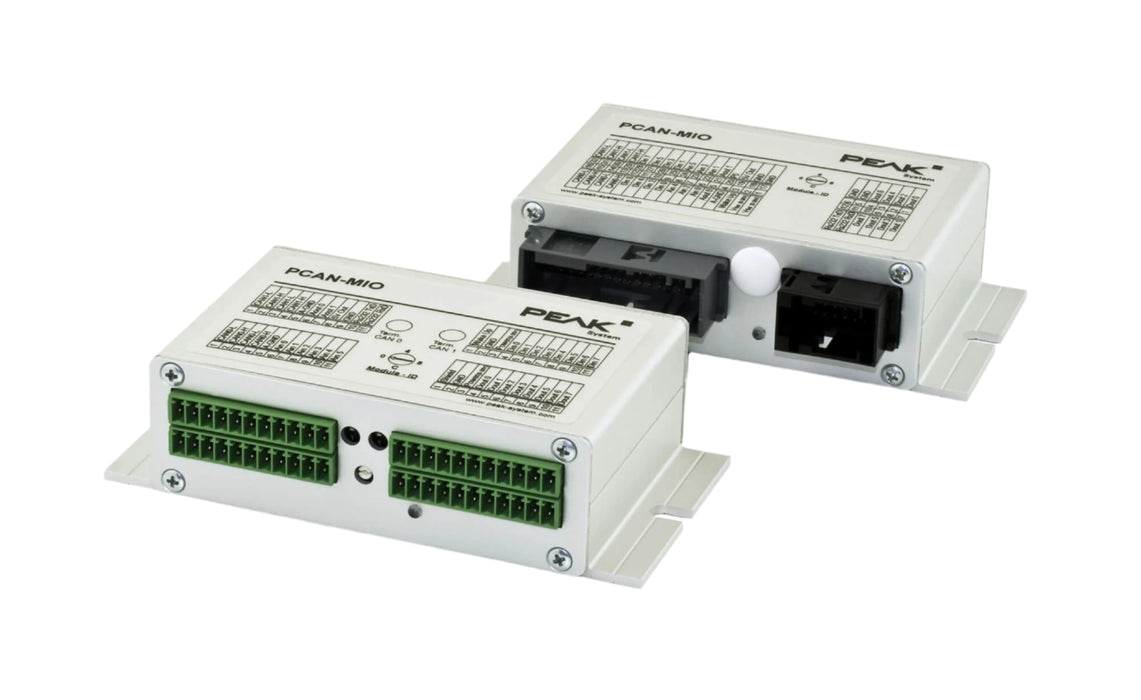

- Available with industrial connectors (Phoenix spring terminal connectors) or automotive connectors (Tyco connectors)
- Aluminum casing with flange. DIN rail fixing option available on request
- 9 - 27 V voltage supply, overvoltage and reverse polarity protection
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
| Power Supply | Supply voltage: 9 - 30 V DC Brownout check: Reset if internal 5-Volt supply < 4.35 V Current consumption: 60 mA typ. (without separate circuits) Reverse-polarity protection: Yes Sensor power supply: 5 V (max. -2 %), 500 mA |
| CAN | Standard transceiver: Up to ser. no. 99: High-speed CAN ISO 11898-2 (TJA1040) From ser. no. 100: High-speed CAN ISO 11898-2 with wake-up function (TJA1041) Other transceivers (on request): High-speed CAN ISO 11898-2 (TJA1040) with galvanic isolation, Low-speed CAN ISO 11898-3 (TJA1054) with wake-up function, Single-wire CAN SAE J2411 (TH8056) with wake-up function Wake-up time: typically 200 ms (depending on the size of the configuration) Termination: Setup with switches on the board CAN OFF ON High-speed none 120 Ω Low-speed 4.7 kΩ 1.1 kΩ Single-wire 9.1 kΩ 2.1 kΩ CAN ID reserved for configuration transfer: 7E7h |
| Interference resistance | Tests: IEC 61000 and DIN EN 61326 compliant Peculiarity surge: ±500 V |
| Dimensions | 130 x 65 x 35 mm (5 1/8 x 2 9/16 x 1 3/8 inches) (without plug), see User's Manual for more details |
| Weight | max. 280 g (9.9 oz.) |
| Operating temperature | -40 - +85 °C (-40 - +185 °F) |
| Storage temperature | -40 - +100 °C (-40 - +212 °F) |
| Relative humidity | 15% to 90% (non-condensing) |
| Ingress protection (IEC 60529) | IP20 |
| PCAN-MIO manual |
| User's Guide in English |
| PPCAN-Editor 2 |
| Configuration software for Windows® 8, 7, Vista, XP (32/64-bit) |
