sysWORXX CANopen IO-C12
SKU #: SYS-phyPS-409-Y

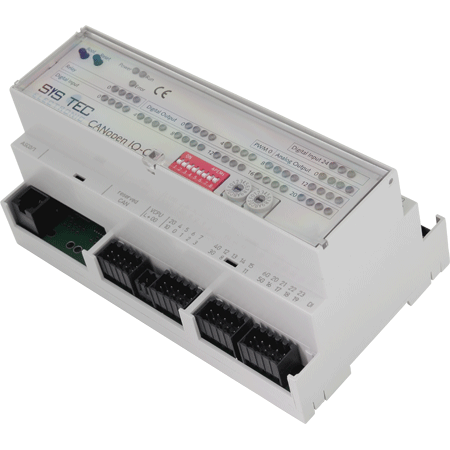

The SYSTEC CANopen IO-C12 is a compact CANopen I/O extension module with outstanding performance. This device provides a mix of industrial proven input and output signal types via CANopen network variables and combines it with features of network management and node guarding in a compact DIN-rail mountable case. Clearly arranged LED indicate the status of each I/O. Removable terminal blocks enable easy deployment and exchange of modules.
Part# SYS-phyPS-409-Y includes mating connectors and cable set. Also available as special order item without connectors/cable set under part# SYS-3001011. Email us for details.
CANopen features:
- Communication profile according to CiA 301
- Device profile according to CiA DS 404
- State indicators according to CiA 303-3 V1.0
- Layer Setting Service (LSS) according to CiA 305 V1.1
- 3 TPDO / 3 RPDO
- Dynamic PDO-Linking and Mapping
- SDO-Server
- Life guarding, Node guarding, Heartbeat Producer / Consumer
- Emergency Producer
- Variable, dynamic PDO-Mapping
- SYNC-Consumer
- TPDO transmission-type: asynchron, synchron, event driven, cyclic, acyclic or remote request
- Event Timer and Inhibit Timer for TPDO
Communication and device configuration:
- galvanic isolated high-speed CAN Bus interface, CAN-bus driver supports up to 64 nodes on one bus
- Hex-encoding switches for setting node-ID and baud rate
- CAN-bus baud rate: 10kBit/s to 1Mbit/s
- CAN-High/Low short-circuit proof against 24V
- RS232 interface, used for firmware update
- Non-volatile memory for storage of configuration data
IO configuration and module features:
- 27 digital inputs 24VDC, galvanic isolated
- 16 digital outputs 24VDC/0,5A, galvanic isolated, short-circuit proof
- 4 Relay outputs 250VAC/3A, 3 NO and 1 changer
- 4 analog inputs 0..10VDC, 10-bit resolution
- 2 analog outputs 0..10VDC, max. 30mA, 10-bit resolution, short-circuit proof
- 2 PWM outputs 24VDC/0,5A
- IO connectors: removable spring type terminal connectors
- LED for indication of IO-state, Power LED, device state, Error-LED
Power Supply, Environmental Conditions:
- Operating voltage: 2x 24VDC ±20%, separated power-supply for IO and CPU
- Current-consumption: typical 100mA (without connected IO)
- Operating Temperature: 0..50°C, extended temperature range upon request
- Dimensions (LxWxH in mm): 160x95x75
- Installation method: DIN/EN-rail mounting
- Enclosure protection class: IP20
- Weight: ca. 350g
