CAN to Ethernet interface for remote network access. Supports REST API and t-programming.

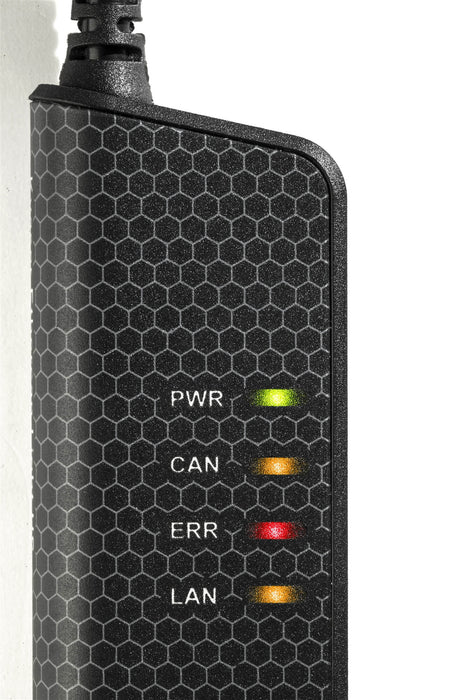

The Kvaser Ethercan HS is a powerful, real-time Ethernet to CAN interface that, when linked over the Internet to an Ethernet-equipped PC, allows CAN data to be remotely accessed from anywhere in the world. Built-in Power over Ethernet (PoE) eliminates the need for a separate power cable when you can't power the device from the CAN bus.
Kvaser’s Ethercan product range makes it easy to implement the Internet of Things (IoT) concept by enabling data from any CAN product or system to be sent over a corporate network or WAN, using the standard Kvaser CANlib API. Users of the Kvaser Ethercan HS can also choose to connect to the device using the built-in REST API for web-enabled devices, such as smartphones.
As a programmable interface, the Kvaser Ethercan HS is suited to advanced applications, such as ECU reflashing. For example, a t program could be created to process CAN messages locally in the device, removing the latency of WiFi and/or Ethernet.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Networked CAN interface with Kvaser t programmability.
- Supports Kvaser REST API, enabling CAN data exchange with a variety of web-enabled devices.
- Time stamp accuracy of 25 µs.
- Ethernet connection has auto-MDIX, so it automatically detects and adjusts for the Ethernet cable being used.
- Built-in Power over Ethernet (PoE) - receives data and power over the Ethernet cable.
- Also receives power over CAN so the Ethercan can be powered through devices such as the Kvaser DB9-Power Inlet.
- Small, lightweight plastic housing with galvanic isolation.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Includes Ethercan Factory Reset Device. This device provides the ability to reset the Ethercan's IP address to factory defaults at the push of a button.
- Supports Windows 7 or later.
| Bitrate | 40-1000 kbps |
| Temp Range | -20 - 70 °C |
| Messages Per Second Recieve | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| Weight | 123 g |
| Length | 165 mm |
| Height | 17 mm |
| Channels | 1 |
| Certificates | CE, RoHS |
| Interfaces | Ethernet RJ45 |
| Categories | PC Interfaces |
| Buffers | On Board Buffer |
| Galvanic Isolation | Yes |
| Error Frame Generation | No |
| Error Counters Reading | No |
| Silent Mode | No |
| Sound | No |
| Kvaser Ethercan HS Users Guide |
| User's guide for Ethercan Light Version V1.2.189 |
| Kvaser Ethercan HS Datasheet |
| Datasheet for the Kvaser Ethercan Light HS Version 2014 |
| Kvaser DIADEM Driver |
| This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser. Version 1.0.0 |
| Kvaser Drivers for Windows |
| Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus. Version V5.3.0 |
| Kvaser Firmware Update Tool |
| Firmware update tool for Kvaser BlackBird (all types), Kvaser BlackBird v2, Kvaser Eagle, Kvaser Ethercan Light HS, Kvaser Leaf (all types), Kvaser Leaf Light v2 (all types), Kvaser Memorator Light, Kvaser Memorator Professional, Kvaser Memorator Semipro, Kvaser Mini PCI Express HS (all types), Kvaser USBcan Light 2xHS, and Kvaser USBcan Professional. Version V3.7.515 |
| Kvaser CANKing |
| A free of charge, general-purpose CAN bus monitor. Works with all CAN interfaces from Kvaser. Works with all CAN interfaces from Kvaser. Windows 2000 or later is recommended but Windows 98 should also work. Version 5.3.889 |
| Kvaser CANLib SDK |
| Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately. Version V5.4.0 |
| Kvaser LabView VI Library for CAN |
| Library for National Instrument's LabView version for all Kvaser CAN hardware. Version 6.1.0 |
