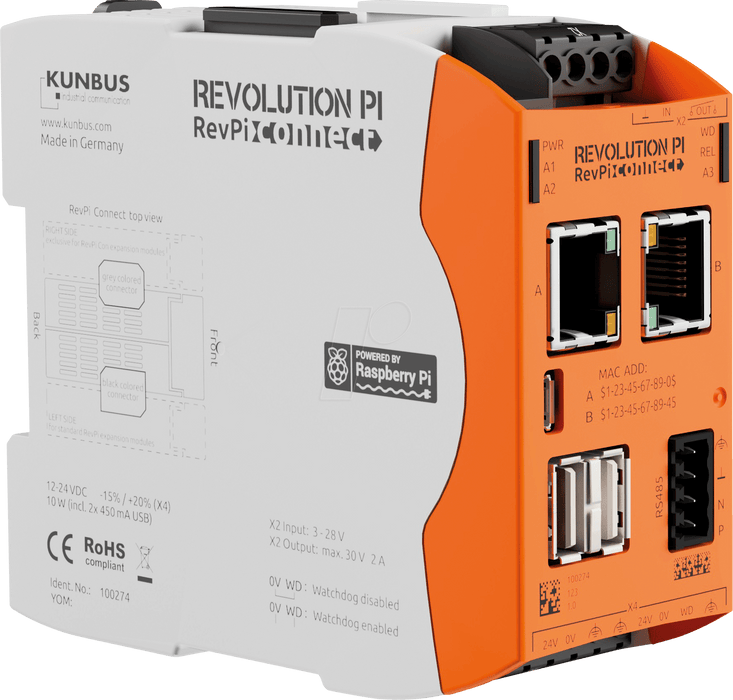

The RevPi Connect from KUNBUS is an open source Industrial IoT (IIoT) gateway giving users the ultimate in flexibility. RevPi Connect is based on the Raspberry Pi Compute Module 3 (CM3), and features a 1.2 GHz quad-core processor, 1 GB RAM and 4 GB eMMC flash memory. The operating system is a customized Raspbian version with a real time patch. Common IIoT protocols such as OPC UA and MQTT are fully supported allowing the transfer of data directly to the cloud.
Individual applications may be programmed using Node-RED, Python, or C programming. The modular design allows the 45mm base device to be fitted with expansion modules such as digital and analog I/Os, fieldbus gateways and radio modules including Bluetooth. The expansion modules may be connected with the base device via a socket located at the top, and is easily configured with an intuitive GUI.
Review the UL Certificate.
- Freely programmable
- Modular and expandable design
- Two Ethernet ports
- RS485 screw terminal
- Hardware watchdog
- Supports all major industrial network protocols
- OPC UA & MQTT
- Node-RED
- Python
| Housing dimensions (H x W x D) | 96 x 45 x 110.5 mm |
| Housing type | DIN rail housing (for DIN rail version EN 50022) |
| Housing material | Polycarbonate |
| Weight | approx. 197 g / 224 g (incl. connectors) |
| IP Code | IP20 |
| Power supply | 12-24 V DC -15%-/ +20% |
| Max. power consumption | 20 Watt (incl. 1 A total USB output current) 1 |
| Operating temperature | -40 °C....+55 °C2 |
| Storage temperature | -40 °C....+85 °C |
| Humidity (at 40°C) | 93% (non-condensing) |
| Interfaces | 2 x USB A (Total current draw from both sockets max. 1 A) 3 2 x RJ45 10/100 Ethernet (using separate MAC addresses) 1 x RS485 screw-type terminal (not galvanically isolated) 1 x Micro-USB (solely for image transfer to eMMC) 1 x Micro HDMI 1 x PiBridge system bus 1 x ConBridge system bus |
| Connectors | 1 x 4-pole screw-type terminal for relay contact and signal input 1 x 8-pole spring clamp connector for power supply |
| Processor | Broadcom BCM2837 quad-core ARM Cortex A53 (ARMv8) |
| Clock rate | 1.2 GHz 2 |
| Processor cooling | Passive with heat sink |
| RAM | 1 GByte |
| Flash memory | 4 GByte |
| Number of digital input channels | 1 |
| Input type | 24 V control voltage (e.g. for power-good signal of a UPS) |
| Input thresholds | approx. 3.0V (0 -> 1) / 2.3V (1 -> 0) |
| Input protection | against overvoltage, negative voltages |
| Number of digital output channels | 1 |
| Output type | Relay contact, approval up to 30 V switching voltage (e.g. for power supply of a router) |
| Maximum current load of the contact | 2A @ 30V DC (resistive load!) |
| Software integration of input and output | Via GPIOs and process image. Output is optionally switched by hardware watchdog |
| Hardware watchdog functionality | Can be disabled by bridging the 8-pin connector. Reset by toggling a GPIO or alternatively a bit in the process image |
| Hardware watchdog interval | Trigger after approx. 60 seconds without toggling the reset bit |
| Compatible modules for system expansion | All RevPi IO modules and RevPi Gate modules can be connected via the PiBridge system bus. Various transceiver modules can be connected via the ConBridge system bus. |
| Protection of the power supply inputs | Reverse polarity protected, overvoltage protection |
| ESD protection | 4 kV / 8 kV (according to EN61131-2 and IEC 61000-6-2) |
| EMI tests | Passed (according to EN61131-2 and IEC 61000-6-2) |
| Surge/Burst tests | Passed (according to EN61131-2 and IEC 61000-6-2) |
| Buffer time RTC | min. 24 h |
| Optical indicator | 6 status LEDs (bi-color), two of them freely programmable |
| RoHS conformity | Yes |
| CE conformity | Yes |
