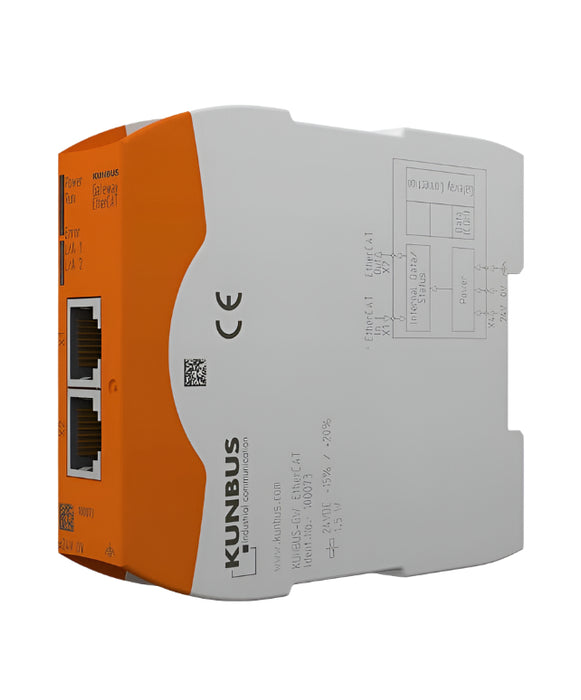

Gateway Module - EtherCAT Slave

SKU #: KU-PR100073
by KUNBUS

Expansion module for EtherCAT networks

When using our RevPi Gate EtherCAT gateway, integrating Revolution Pi into a EtherCAT network is no problem. Like all Revolution Pi expansion modules, the gateway is connected to the base module RevPi Core via the overhead Pi Bridge connector. Thus, up to two gateway modules can be used per system.

Review the UL Certificate.

Module version Slave
Network connector 2 x RJ45
max. baud rate 100 Mbit/s
I/O data 512 Bytes IN/OUT
Protection class IP20
Power 24 V DC (-15/+20%)
Current consumption 100 mA
Dimensions 110.4 x 22.5 x 101.4 mm
Weight approx. 90 g
Reverse voltage protection Yes
Operating temperature 0 °C to 60 °C
Storage temperature -25°C to 70 °C
max. relative humidity (at 40 °C) 93 % (non condensing)
Casing material Polycarbonate
Mounting DIN rail (EN50022)
CAN Ethernet Gateway - Product Flyer
CAN Ethernet Gateway - Product Flyer in PDF Format
Gateway module EtherCAT Slave manual
Gateway module EtherCAT Slave Manual in PDF Format
XML File
